Conduit and Anchor Bolt Configuration

Each Express 280 station requires AC power from the site’s electrical panel. That AC conduit includes a ground conductor. Optional shunt trip wiring can run from the station to the breaker panel. Check the site drawings for this.

Install four anchor bolts, with two at the front (nearest parking lot) and two at the rear of the template.

You can chose one of the following configurations:

Each Express 280 communicates with ChargePoint via a cellular network. No communication wiring is needed between the station and the building.

Standalone

Paired

AC input conduit

1

AC input conduit

1

—



DC shared conduit

1

(optional) shunt trip wiring conduit

1

(optional) shunt trip wiring conduit

1

Anchor bolts

4

Anchor bolts

4

—



Ethernet conduit

1

Standalone Express 280 Configuration

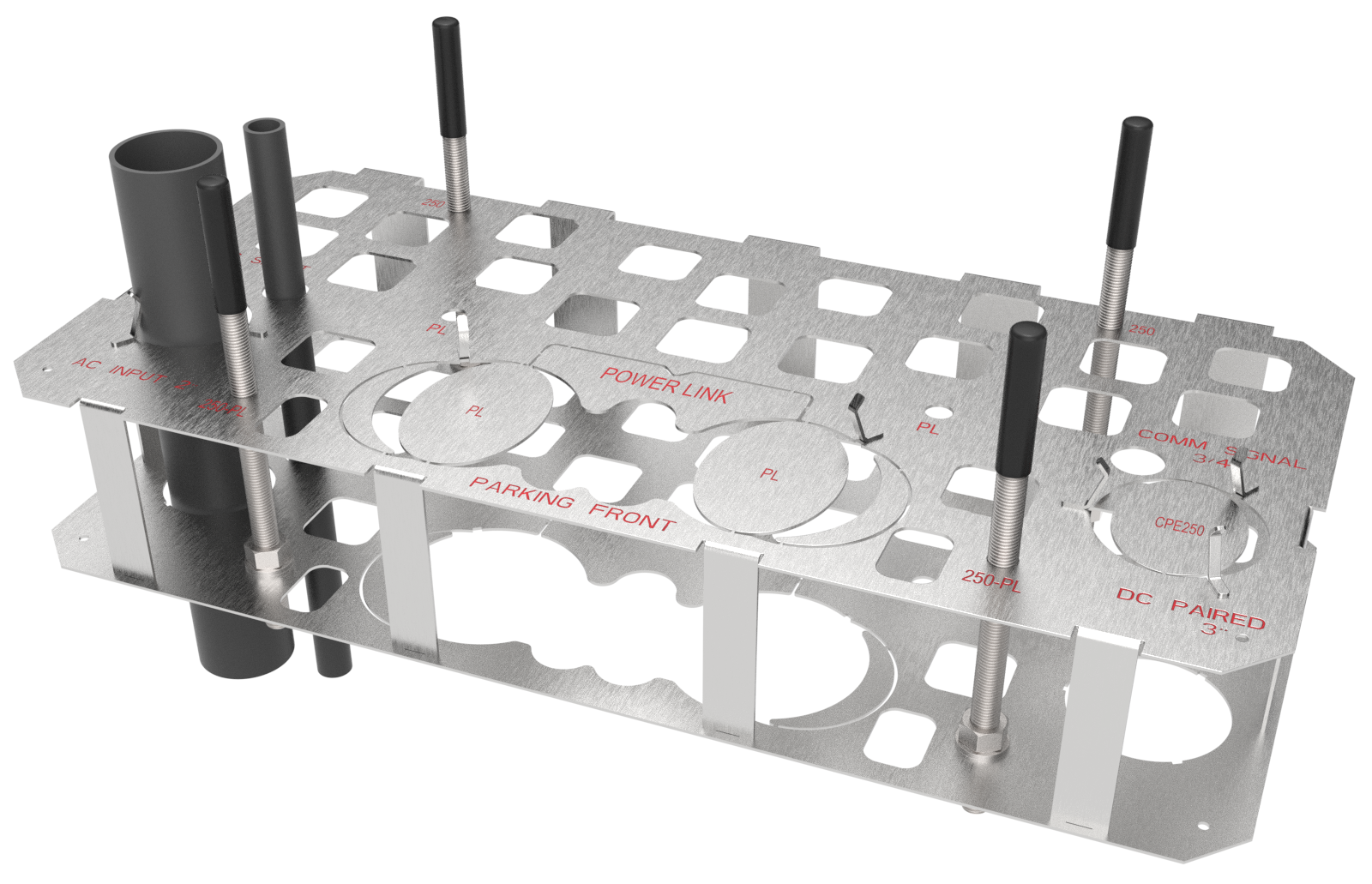

The standalone configuration uses only the conduit for AC input. Stations in a paired configuration also run a DC conduit and Ethernet between the paired stations.

Route or Break Away for Conduit or Wiring

Description

Quantity

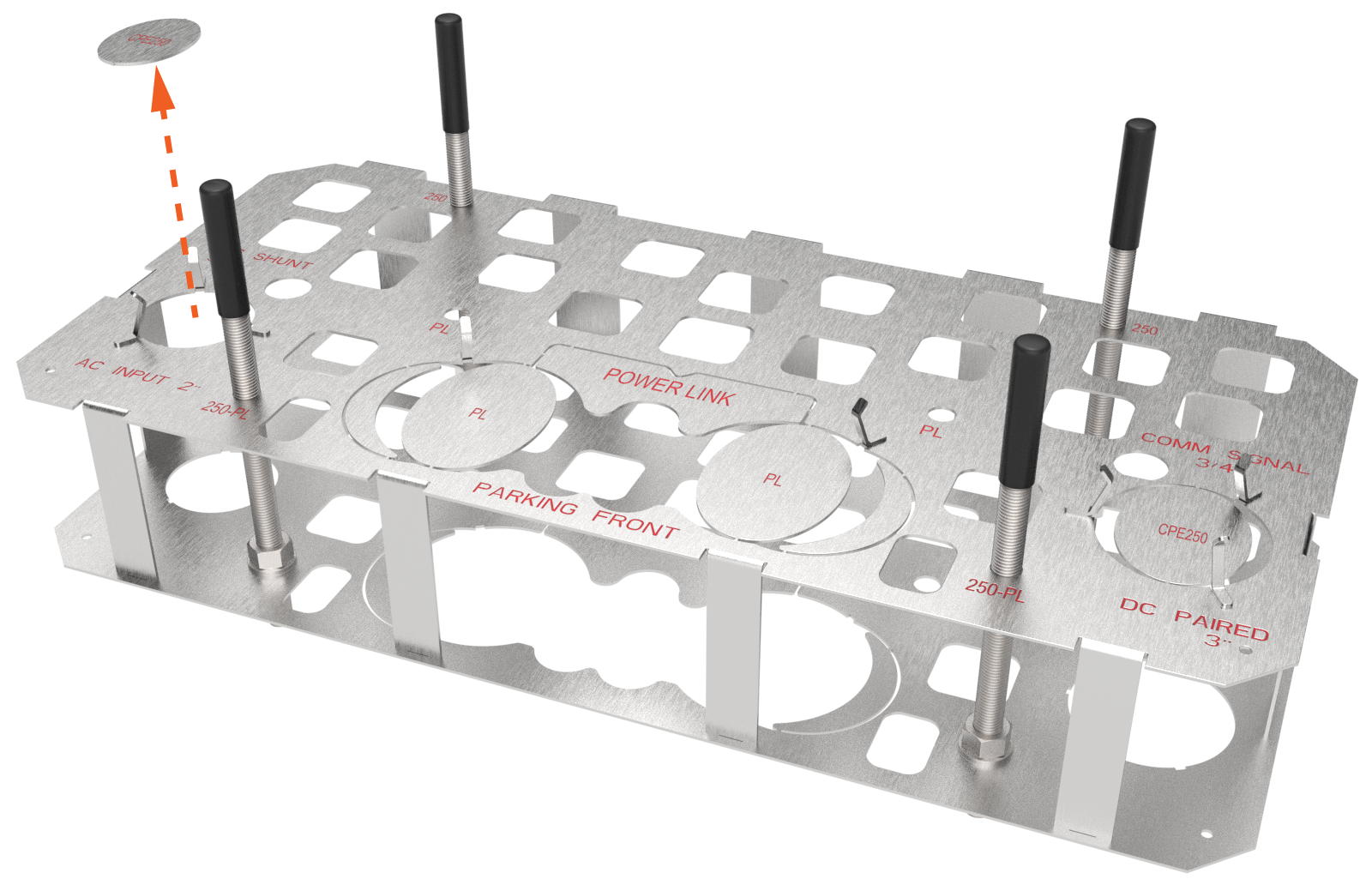

(a) Breakaway for AC conduit (left side)

AC conduit may include an AC disconnect switch in the circuit.

53 mm (2 in) trade size - runs to breaker panel

1

(b) Shunt trip conduit (left side)
(optional)

Check site drawings.

21 mm (3/4 in) trade size - runs to breaker panel



(c) Anchor bolts

M16

4

Paired Express 280 Configuration

If two Express 280 charging stations are “paired,” they share DC power to allow faster (higher amperage) charging to a vehicle as needed.

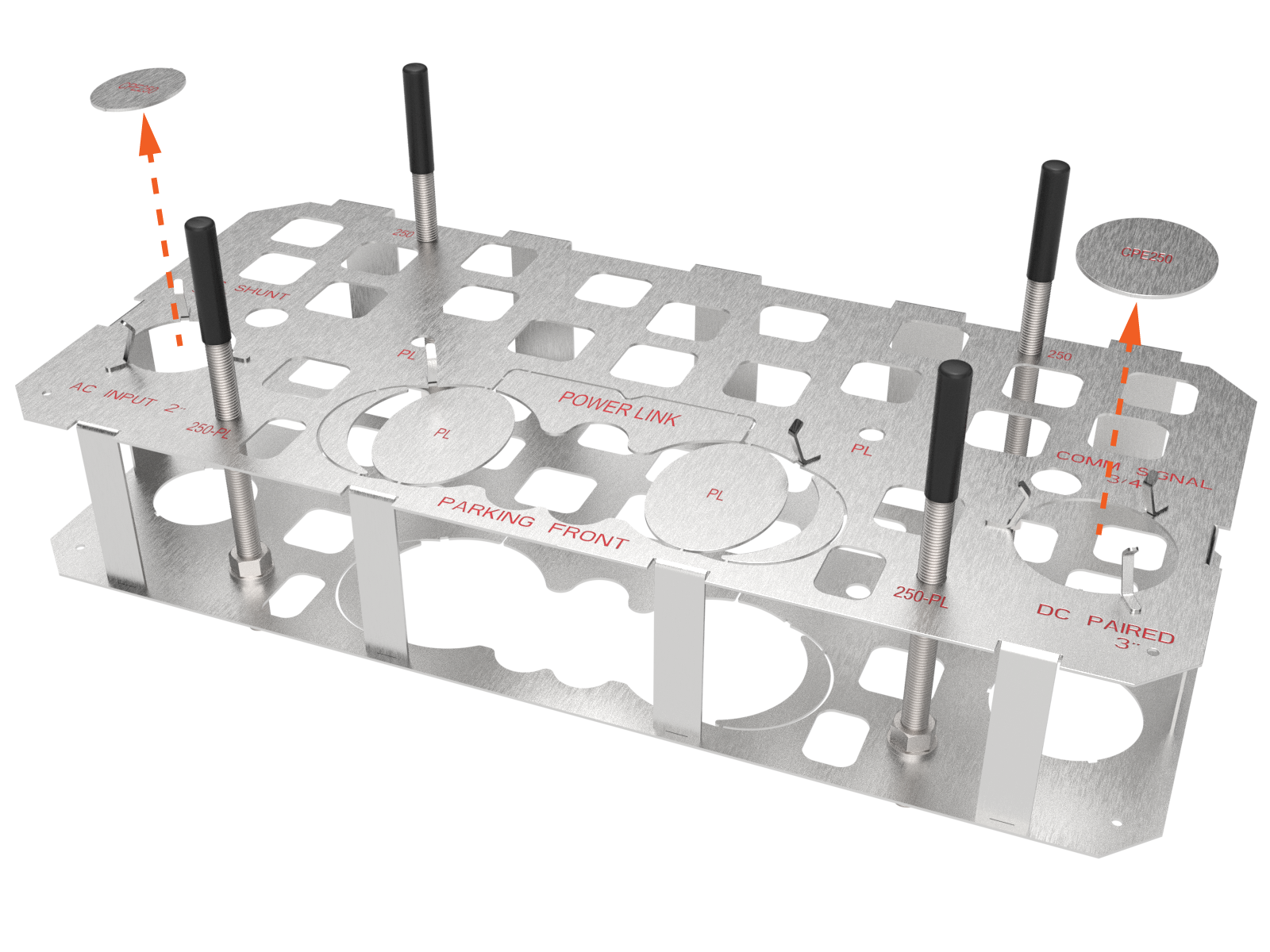

For a paired configuration, follow the diagram. In addition to the Express 280 Standalone Configuration requirements, you must also run two additional conduits between the paired stations: an Ethernet wire for communication and a conduit for DC conductors.

Each Express 280 communicates with ChargePoint via a cellular network. No communication wiring is needed between the station and the building.

Conduit or Wiring

Description

Quantity

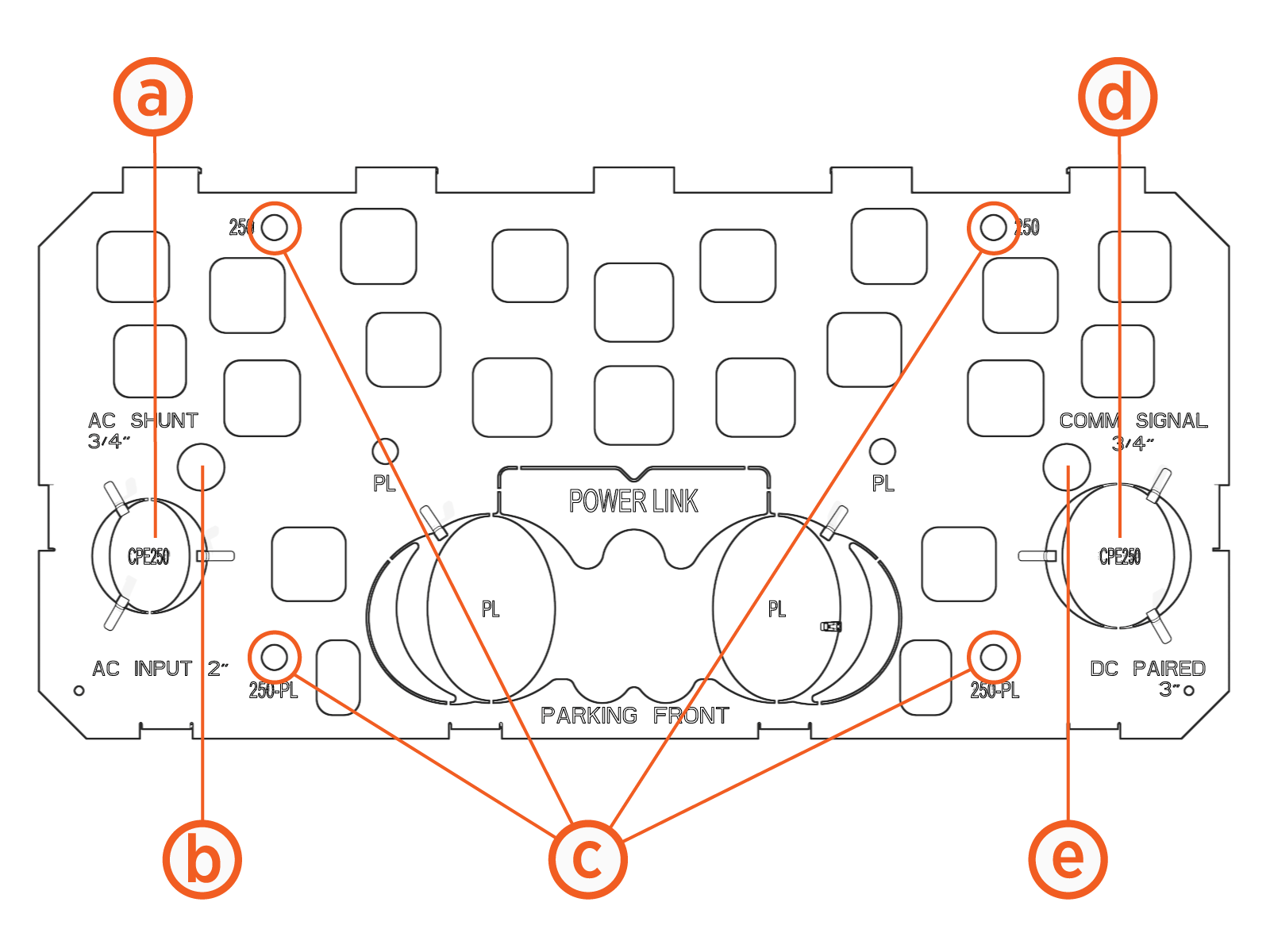

(a) Breakaway for AC conduit (left side)

AC conduit may include an AC disconnect switch in the circuit.

53 mm (2 in) trade size

  • Runs to breaker panel

1

(b) (optional) shunt trip conduit (left side)

Check site drawings.

21 mm (3/4 in) trade size

  • Runs to breaker panel

1

(c) Anchor bolts

M16

4

  • (d) Breakaway for DC conduit (right side)

    		•

    76 mm (3 in) trade size

    • Runs between the two paired stations

    1

    (e) Ethernet conduit (right side)

    21 mm (3/4 in) trade size

    • Runs between the two paired stations

    1
