Meter Dimensions and MID Labels

This section provides a visual and descriptive overview of the physical dimensions of the CPKM3000 meter and the associated MIDClosed Measuring Instruments Directive (Measuring Instruments Directive) labeling used for compliance and identification.

Physical Dimensions

Images are not to scale. Measurements appear in metric units (mm) followed by imperial equivalents (Inches)

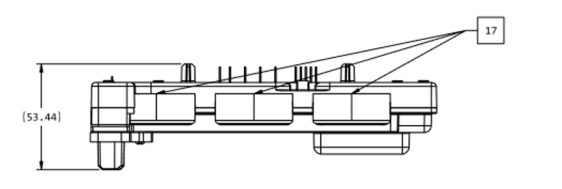

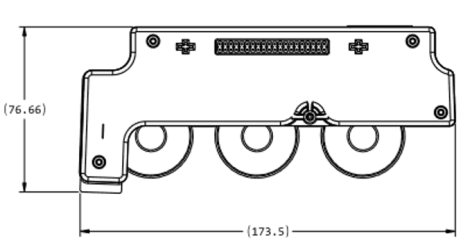

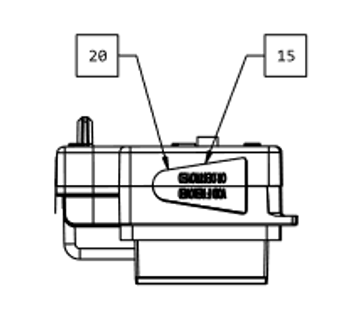

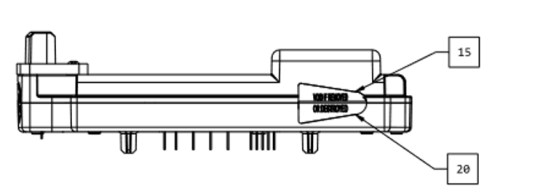

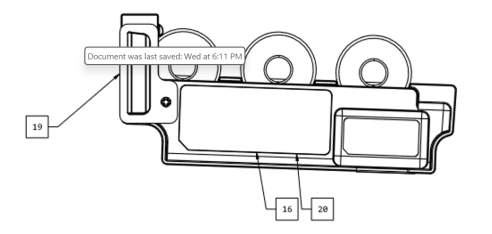

Three Phase Module

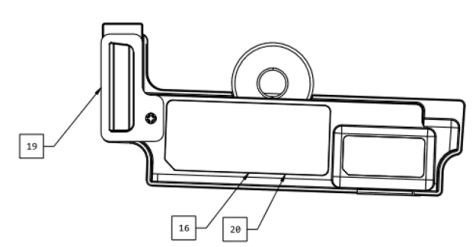

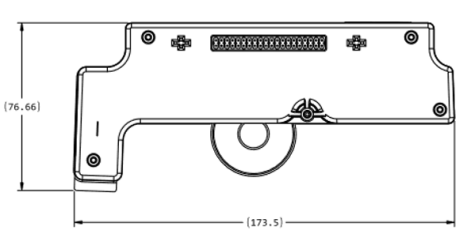

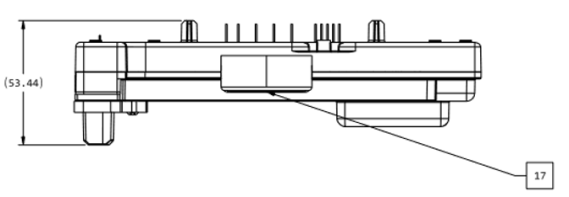

Single Phase Module

MID Labels

The following MIDClosed Measuring Instruments Directive (Measuring Instruments Directive) labels ensure compliance with regulatory standards and vary based on meter configuration.

Detailed MIDClosed Measuring Instruments Directive labels are available for:

  • 1-phase meters

  • 3-phase meters

  • Tamper protection

1-phase meters

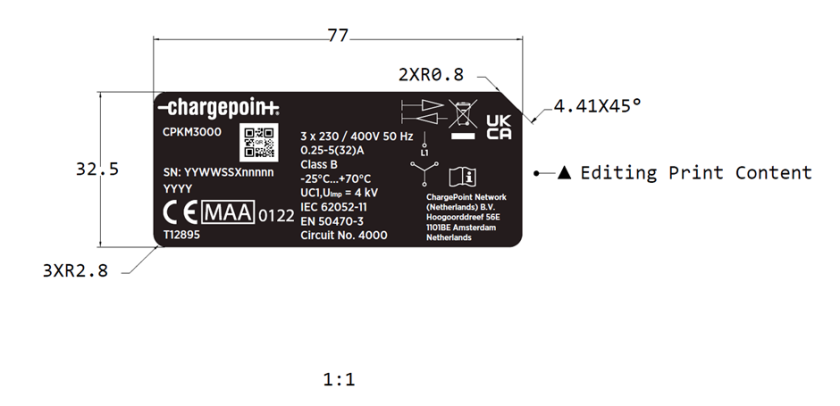

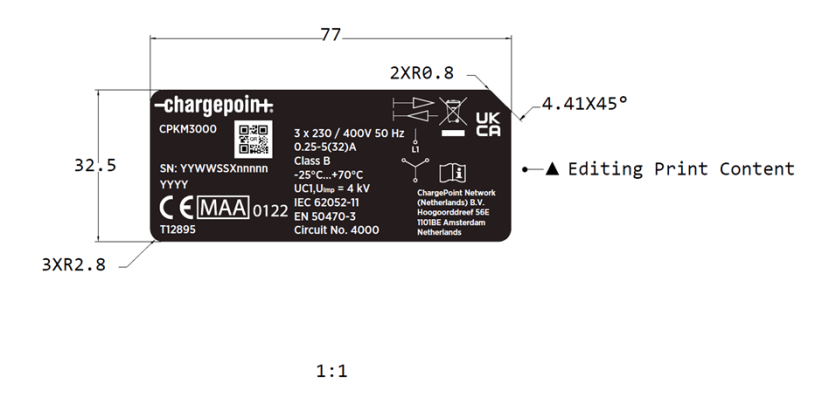

3-phase meters

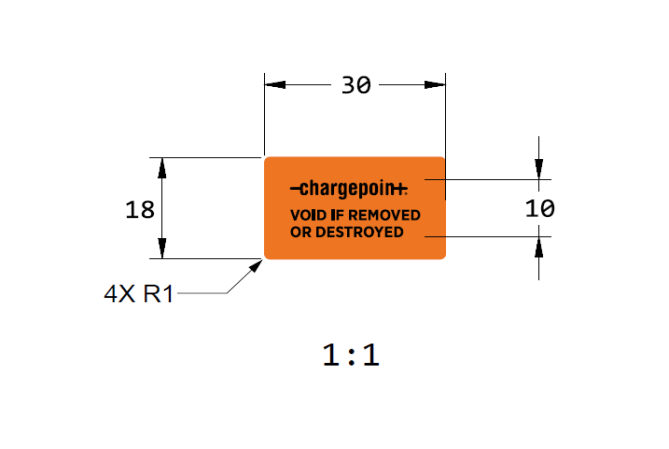

Tamper label
