CP6000 Protection Labels

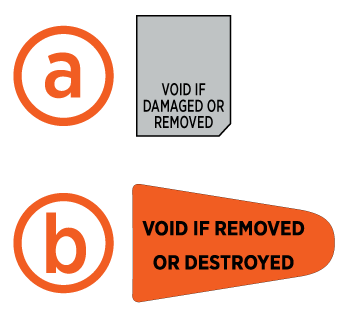

CP6000 charging stations have two different types of protection or tamper proof labels.

One is a gray rectangle (a). The second label is an orange triangle (b).

1. VOID IF DAMAGED OR REMOVED

2. VOID IF REMOVED OR DESTROYED

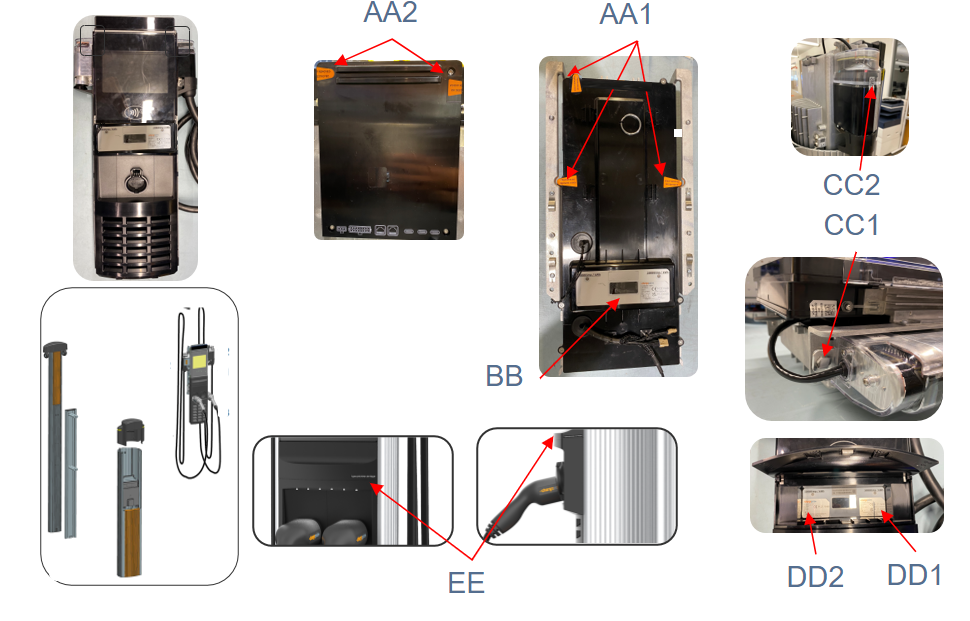

Head Unit Tamper Evident Sealing Labels:

AA. 20-002706-01 Orange Rocket Tamper Label

• x3 Secure AC Module Front Cover to Back Enclosure
• x2 Falcon Back Cover

BB. 20-002359-05 Meter Display Label

CC. 20-002566-01 To secure SEVC Smart Electric Vehicle Cable

• x2 SEVC Smart Electric Vehicle Cable Fasteners
• x1 Left SEVC Smart Electric Vehicle Cable

DD. End of Line Test Label

• 20-002458-01 MID Measuring Instruments Directive/MIR Measuring Instruments Regulations label
• 20-002468-0x Eichrecht label

EE. 20-002917-01 Nameplate Access Label

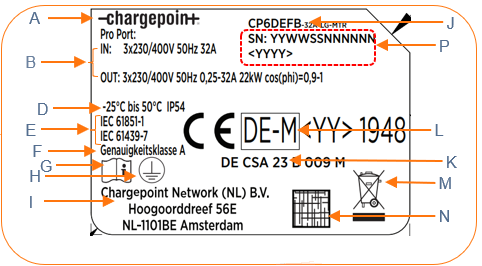

Eichrecht End of Line Test Label Information:

Pre-Printed Information

A. Customer Logo

B. Volt/Freq./Amperage

C. N/A

D. Temperature Rating/IP Rating

E. Applicable Standards

F. Accuracy Class

G. Existence of a Manual

H. Double Insulation mark

I. Company Address

J. Type Number

K. Number of Certificate for Eichrecht

L. Eichrecht Metrology Marking

M. Waste Electrical and Electronic Equipment Marking

N. QR Quick Response Code for Manufacturing

P. Printed information at Celestica Romania​

Serial Number, Manufacturer Year
