Introduction


Follow the installation instructions and heed all warnings to install a Single or Dual-Sided Pedestal.

Warranty Limitation
  • If the charging station is not installed, commissioned, or serviced by a ChargePoint certified technician using a ChargePoint-approved method, it is excluded from all ChargePoint and other warranties and ChargePoint is not responsible.
  • You must be a licensed electrician and complete training at https://www.chargepoint.com/partners/training-certification to become ChargePoint certified and to access ChargePoint's web-based installer tools or ChargePoint Installer app.

Required Tools and Materials

  • T25 Torx screwdriver

  • 6 mm hex driver

  • Flat blade screwdriver

  • Wire cutter

  • Wire stripper

  • Ground wire (maximum 8 AWGClosed American Wire Gauge)

  • Additional tools needed if installing mounting bolts

Ensure that the installation complies with all applicable codes and ordinances.

Overview of the Process

  1. Check the contents of the shipping box.

  2. Install bolts (only if the location does not already have bolts).

  3. Mount the pedestal.

  4. Ground the station and route the wiring.

Check the Contents

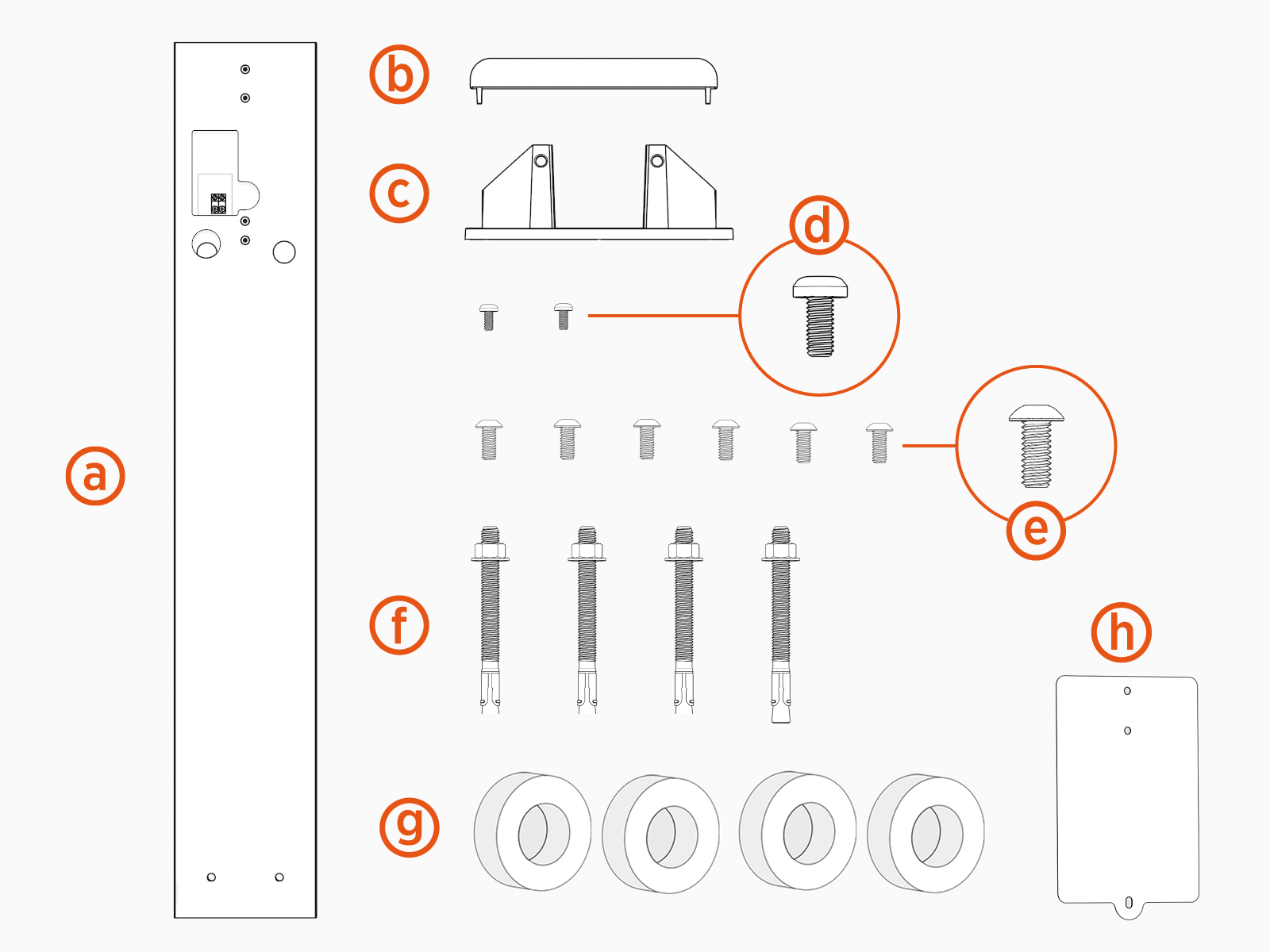

The pedestal box contains the following:

  1. Pedestal

  2. Top cover

  3. Pedestal base

  4. M4 x 0.5 x 8 mm T25 screws (x 2)

  5. M10 x 1.5 x 15 mm hex socket head cap screws (x 6)

  6. Expansion anchor bolts M16 x 2.0 x 140 mm (x 4)

  7. Foam rings

  8. Protective plate
