CPIM1000 Integrated Meter Guide

RISK OF SHOCK. Before working with this equipment, disconnect the power to the CPIM1000 Integrated Meter. Follow standard practice and local code to de-energize the applicable circuit and lock out/tag out the disconnect before proceeding. Use a multimeter to test that power is off. Keep power off for this circuit until the work scope is completed. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS INJURY OR LOSS OF LIFE.
You must be a licensed electrician and complete online training to become a ChargePoint certified installer, and to get a login for ChargePoint. If you do not complete this training, you will be unable to complete the installation process.
To complete online training and become a certified installer, refer to ChargePoint University at: https://www.chargepoint.com/partners/training-certification.
Do not use power tools during installation or servicing. Over-torquing can damage the equipment.
Do not install or service the charging station in inclement weather. If you work in snow, rain, or wind, you must use a weather-proof shelter that covers all boxes and components.
The CPIM1000 is not repairable in the field and does not contain any user-serviceable parts. In case of any error, the CPIM1000 opens internal relays and interrupts the flow of energy.

For assistance, go to chargepoint.com/support and find your region’s technical support number.

CPIM1000 Integrated Meter

The CPIM1000 Integrated Meter is a multifunctional meter intended for use in the field of e-mobility. It uses a backlit LCD to communicate cumulative active energy and two LED pulse outputs to communicate energy steps. The CPIM1000 contains two AC meters, each with its own measuring unit measuring active energy. Accordingly, the display shows two cumulative energies and there is one pulse LED on each side, left and right. The complete device is supplied by the L1-N Input on the right side (top view). If this supply is not provided, the built-in relays remain open and a current flow is not possible.

Installation

The CPIM1000 Integrated Meter is built into CP6000 charging stations. The meter slides downward into the station pedestal housing and connects to a power plate. The meter connects to the power plate with plug-in connectors. User seals must be applied on the connection surface from the power plate to the meter. The left and right side output connectors with attached cables are plugged in and secured. User seals must also be applied on the output connector screws.

Metering Logic

CPIM1000 Integrated Meter current is measured using a current transformer and is transmitted through an A/D converter to a micro controller. Voltage is measured using a ground referenced measurement before it is transformed to a micro controller.

The sample rate is 3.90625 kHz and the energy update rate is 2x mains rate (100 Hz or EU, 120 Hz for US). At sample rate, V*I is accumulated, at energy update rate, the accumulated V*I values are converted to energy.

Fault Detection

In "meter mode" the operating faults have no affect on operations. The only faults that will prevent operation are those that occur on start up:

  • Failure to exit boot loader, generally caused by a bad code image loaded into flash. The LCD displays "-CHARGEPOIN+".

  • Initializing, caused by a MCP3914 failure. The unit will not transfer energy.

If these failures do occur, the meter must be disconnected from the main power supply by a certified ChargePoint technician. The hardware needs to be replaced.

Communication Interface

CAN interface works at a bitrate of 1000000. For details about communication interface parameters, visit Communication Interface Parameters.

Dimensions

Images are not to scale. Measurements appear in metric units (mm) followed by imperial equivalents (inches).

Main Connectors

  1. Left side output main connector

  2. Right side output main connector

  3. Backlit LCD display with pulse LEDs

  4. Power input connector (includes two sets of main inputs)

  5. CAN bus (The pins on the CAN bus are reserved.)

Integrated Meter Display

The LCD displays six digits before and four digits after the comma or decimal. The unit measure is kWh.

  1. Left side impulse LED (20000 imp/kWh)

  2. Backlit information LCD

  3. Right side impulse LED (20000 imp/ kWh)

Backlit Information LCD

Common Information Readouts:

  1. Left side flags

  2. Overall software version

  3. Right side flags

  4. Overall software hash

Legally Relevant:

  1. Left side cumulative energy reading

  2. Legally Relevant Software (LRS) hash

  3. Right side cumulative energy reading

MID Type Label

Circuit Number: 4000 : Standard: DIN 43856:1989-09

  1. Space for calibration mark

  2. Impulse constant

MIDClosed Measuring Instruments Directive/MIRClosed Measuring Instruments Regulations label includes the following:

  1. Customer logo

  2. Reference voltage and frequency

  3. Meter current values

  4. Accuracy class

  5. Temperature rating

  6. IP rating

  7. Existence of a manual

  8. Number for circuit diagram

  9. Symbol for one phase

  10. Symbol for three phase

  11. Symbol for escapement mechanism

  12. Company address

  13. QRClosed Quick Response code with serial number

  14. WEEE waste symbol

  15. Type number

  16. Serial number

  17. Year of manufacture

  18. CE marking, MIDClosed Measuring Instruments Directive metrology marking, number of the notified body for MIDClosed Measuring Instruments Directive

  19. MIDClosed Measuring Instruments Directive certificate number

  20. UKCA marking, MIRClosed Measuring Instruments Regulations metrology marking, number of the notified body for MIRClosed Measuring Instruments Regulations

  21. MIRClosed Measuring Instruments Regulations certificate number

Data Protection

The energy data is computed and stored inside the STM32G4xx micro controller. The micro controller does not provide a mechanism for accessing this data other than via the meter firmware. The meter firmware does not provide a mechanism for updating the energy data from an external interface. The meter firmware can be updated during production or if the seal is removed, but a secure boot mechanism is used to prevent unsigned and unauthorized firmware.

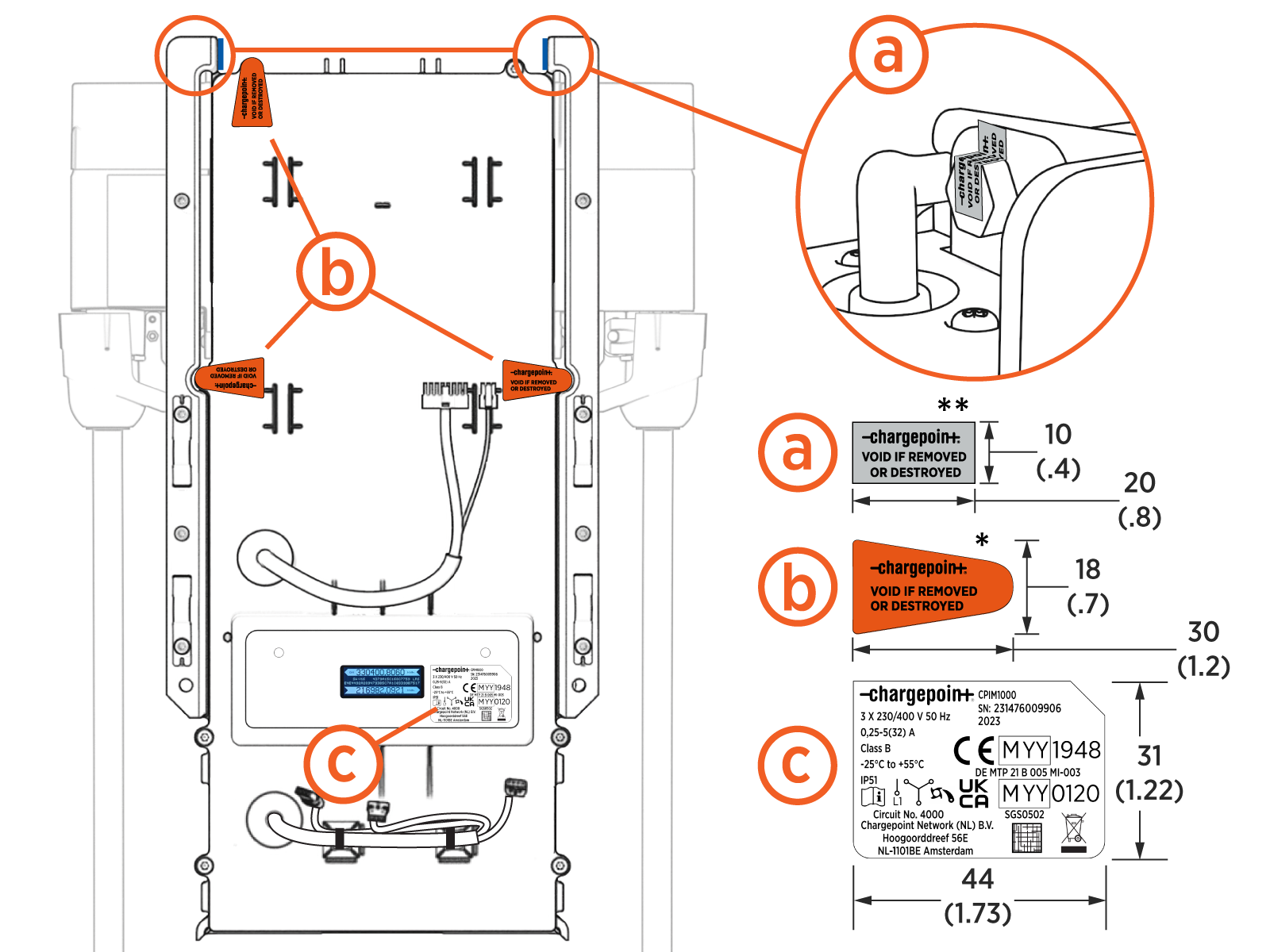

Manufacturer Seals

The meter has tamper proof labels applied by the manufacturer in several locations (a). The meter also has tamper proof labels applied by users in several other locations (b).

* VOID IF REMOVED OR DESTROYED

** VOID IF REMOVED OR DESTROYED

Images are not to scale. Measurements appear in metric units (mm) followed by imperial equivalents (inches).

CPIM Meter Voltage and Current Circuitry

Description: Circuit number 4000 per standard DIN 43856:1989-09.

Left meter

Right meter

CPIM Interface Descriptions

The CPIMClosed ChargePoint Integrated Meter Integrated Meter includes LED, LCD, and CAN bus interfaces. This section describes the PCBAClosed Printed Circuit Board Assembly connector interfaces including interface type (protocol), connector type, pin assignment, and whether or not the connector is accessible externally or for test only.

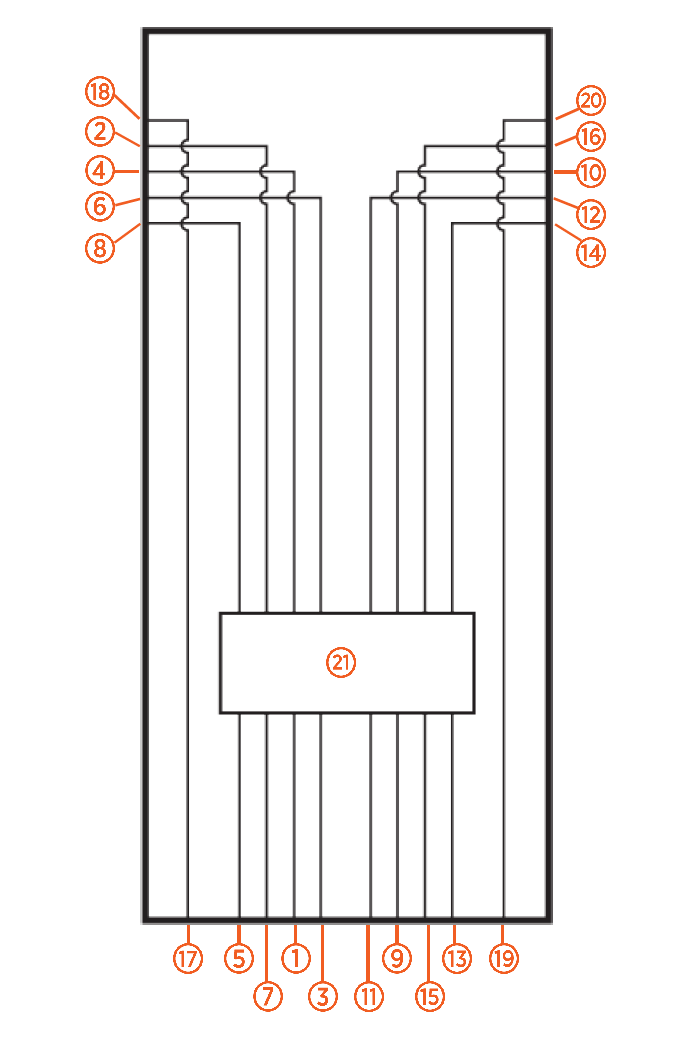

Integrated Meter Wiring Diagram



  1. L1 input - Left

  2. L1 output - Left

  3. L2 input - Left

  4. L2 output - Left

  5. L3 input - Left

  6. L3 output - Left

  7. Neutral input - Left

  8. Neutral output - Left

  9. L1 input - Right

  10. L1 output - Right

  11. L2 input - Right

  12. L2 output - Right

  13. L3 input - Right

  14. L3 output - Right

  15. Neutral input - Right

  16. Neutral output - Right

  17. PE input - Left

  18. PE output - Left

  19. PE input - Right

  20. PE output - Right

  21. Relays



L1 and Neutral must be connected for this meter to work.

Holster Connectors

Pin P1R (Right)

Destination

Signal Name

Description

1

AC, P1 14

MTR_RIGHT_DRV2

Motor drive output (+13.5V or -13.5V)

2

AC, P1 13

MTR_LEFT_DRV2_RIGHT_DRV1

Motor drive output (+13.5V or -13.5V)

3

AC, P1 8

MTR_RIGHT_SNS

Motor sense feedback (digital)

4

AC, P1 18

GNDClosed Ground

Motor sense feedback (digital) GNDClosed Ground

Pin P1L (Left)

Destination

Signal Name

Description

1

AC, P1 11

MTR_LEFT_DRV2

Motor drive output (+13.5V or -13.5V)

2

AC, P1 12

MTR_LEFT_DRV2_RIGHT_DRV1

Motor drive output (+13.5V or -13.5V)

3

AC, P1 7

MTR_LEFT_SNS

Motor sense feedback (digital)

4

AC, P1 6

GNDClosed Ground

Motor sense feedback (digital) GNDClosed Ground

Pin P2 (Led)

Destination

Signal Name

Description

1

AC, P1 15

LED_DOWNLIGHT_DRV

White LED drive output (13.5V)

2

AC, P1 16

LED_LEFT_EVIDENT

Red LED drive output (3.3V)

3

AC, P1 17

LED_RIGHT_EVIDENT

Red LED drive output (3.3V)

4

AC, P1 19

GNDClosed Ground

LED drive reference GNDClosed Ground output

SEVB Signal Cable Connector (J1)

Pin

Signal

Description

1

No connect



2

+48 return

Connected to Ground inside meter

3

Pilot

1kHz PWM input/output for EVSEClosed Electric Vehicle Supply Equipment function

4

+48 V

48 V power supply output

5

L3

Phase 3

6

L2

Phase 2

7

L1

Phase 1

8

Neutral

Neutral

9

Ground



Power Plate - Blindmate (J7)

Pin

Signal

Description

S1, S2, S3

MOV GNDClosed Ground

Left side SPD (Surge Protective Device) disconnect. Connect to GNDClosed Ground to enable SPD, leave disconnected to disable SPD.

S4, S5

LEFT TEMP

Left power path external temperature sensor input. Connect thermistor between S4 and S5.

S6, S7

RIGHT TEMP

Right power path external temperature sensor input. Connect thermistor between S6 and S7.

S8

Spare

No connection

S9, S10

AMBIENT TEMP

Ambient external temperature sensor input. Connect thermistor between S9 and S10.

S11

ID 1

External strapping pin to select operating region. ID1 shorted to GNDClosed Ground -> EU region selected.

S12

ID 2

External strapping pin to select operating region. ID2 shorted to GNDClosed Ground -> NA region selected.

S13

GROUND

Ground internally shorted to B1, B10, and heatsink.

S14

SHUNT LEFT

External shunt trip connection for safety function. Connect left side RCCBClosed Residual Current Circuit Breaker shunt trip device between S14 and S15.

S15

+48 V SHUNT LEFT

External shunt trip connection for safety function. Connect left side RCCBClosed Residual Current Circuit Breaker shunt trip device between S14 and S15.

S16

SHUNT RIGHT

External shunt trip connection for safety function. Connect right side RCCBClosed Residual Current Circuit Breaker shunt trip device between S16 and S17.

S17

+48 V SHUNT RIGHT

External shunt trip connection for safety function. Connect right side RCCBClosed Residual Current Circuit Breaker shunt trip device between S16 and S17.

S18

Spare

No connection

Pin

Signal

Description

S19, S20, S21

MOV GNDClosed Ground

Right side SPD (Surge Protective Device) disconnect. Connect to GNDClosed Ground to enable SPD, leave disconnected to disable SPD.

B1

GNDClosed Ground

Mains earth/ground connection

B2

LEFT AC C

Left side line 3 input.

B3

LEFT AC D

Left side neutral input.

B4

LEFT AC A

Left side line 1 input.

B5

LEFT AC B

Left side line 2 input.

B6

RIGHT AC B

Right side line 3 input.

B7

RIGHT AC A

Right side line neutral input.

B8

RIGHT AC D

Right side line 1 input.

B9

RIGHT AC C

Right side line 2 input.

B10

GNDClosed Ground

Mains earth/ground connection



UCB Connectors

Pin197-08

Destination

Signal Name

Description

1

AC, J1 2

Ground

Ground output to auxiliary device.

2

NC





3

AC, J1 1

UCBClosed Universal Controller Board +48 V

48 V power supply output to aux device

Pin197-02

Destination

Signal Name

Description

1

NC





2

NC





3

NC





4

NC





5

NC





6

NC





7

NC





8

NC





9

NC





10

AC, P1 20

Can High

Can bus for inter-communication.

11

AC, P1 10

Can Low

Can bus for inter-communication.

12

NC





13

NC





14

NC





15

NC





15

NC





Technical Specifications

CPIM1000 Integrated Meter complies with the following standards:

EN 50470-1:2006

EN 50470-3:2006

TR 50579:2012

General Features

Connectors

See "Input Connectors" on page 4 and "Input Connectors" on page 4

Protection grade

IP51

Environmental Specifications

Power

Self-powered (via measured voltage)

Consumption

<3 W, <10 VA (per port, multifunctional meter)

Ist

0.02 A

Imin

0.25 A

Itr

0.5 A

Iref

5 A

Imax

32 A

Uref

3 phase 230/400V AC or 1 phase 230V AC

400V AC phase-to-phase

230V AC phase-neutral, neutral connection mandatory

Fref

50 Hz

Accuracy class

Active energy: Class B (EN50470-3)

Additional Environmental Specifications

Working temperature

-25o C to 55o C

Note: LCD performance degraded at <-10o C

Storage temperature

-40o C to 80o C

Mechanical environment

Class M1 - 2014/32/EU - Measuring Instrument Directive

Class M1 - UK SI2016 No. 1153 - Measuring Instruments Regulations

Electromagnetic environment

Class E2

Application field

Indoor meter

Electrical protection

Class I

Storage and operating humidity

5% - 95% RH at 50o C, non-condensing for up to two years

LED Specifications

Pulse weight

20000 imp / kWh

Color

Red

Output Specifications

Pulse output

Proportionate to measured active energy (EN62052-31)

Minimum Number of Pulses for Repeatability Testing (per EN 50470-3)

Imin

5

Itr

15

Iref

100

Imax

300
