Introduction

Pantograph Down 2000 Serviceable Components

Express Plus Pantograph Down 2000 is a modular solution for scalable fast charging of electric buses. The following list shows its serviceable components.

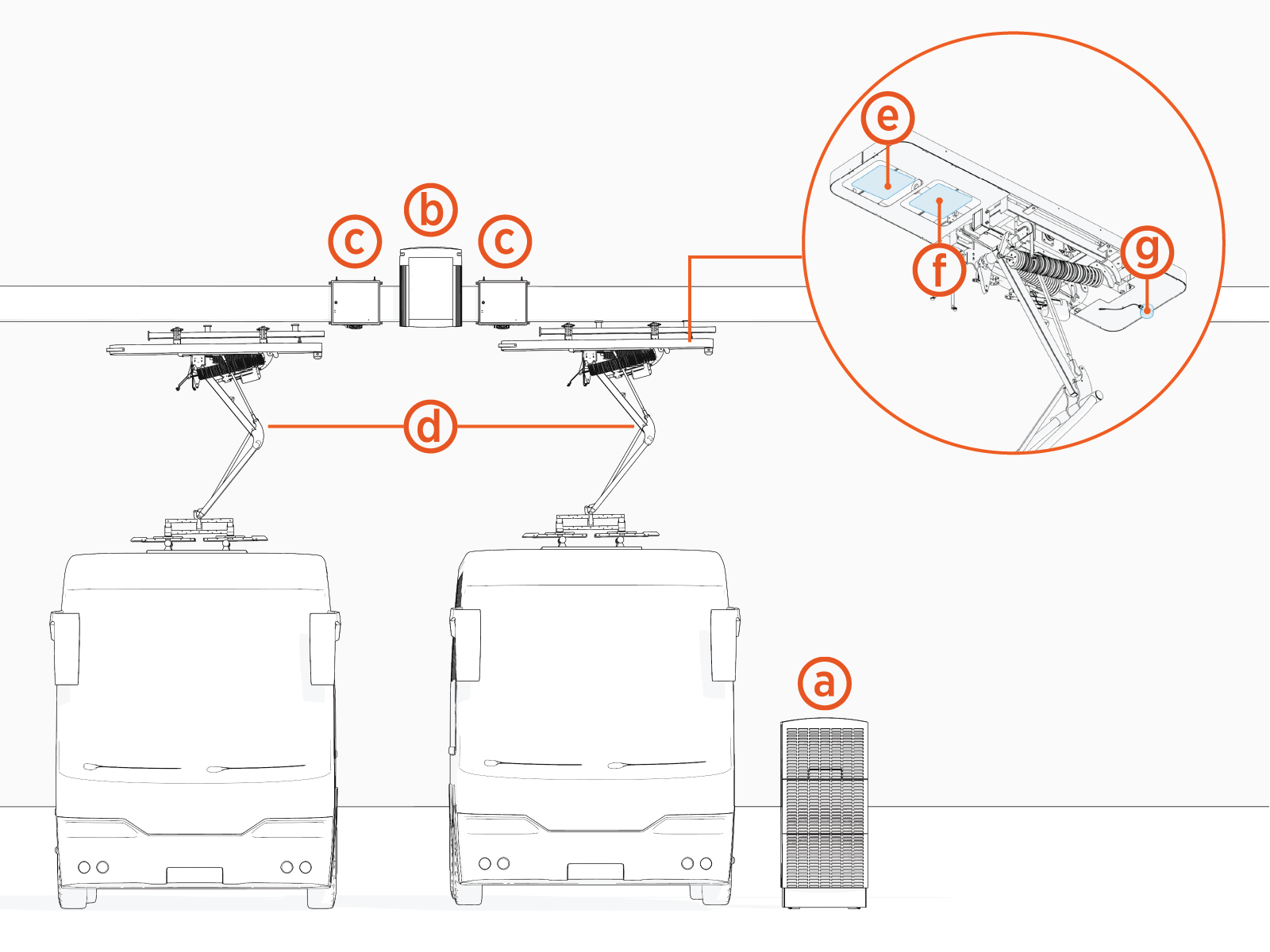

product components in depot configuration

  1. Power Block: Power cabinet that houses AC to DC power converters called Power Modules. Supplies DC output power to Power Link 2000s. Each Power Block can output up to 200 kW of power.

  2. Power Link 2000: Dispenser that communicates with the bus during charging, connects to the ChargePoint Platform, and dispenses high voltage DC power to the bus through a pantograph connector.

  3. PD Controller: Smart interface that enables a Power Link 2000 to control a pantograph and to monitor the control pilot. Also hosts the Wi-FiClosed Wireless Fidelity access point and RFIDClosed Radio Frequency IDentification reader that enables wireless charging communication with the bus.

  4. Pantograph: Electromechanical connector that lowers onto bus charging rails and delivers high voltage DC charge power to the bus. Raises out of the way when not in use.

  5. Wi-FiClosed Wireless Fidelity antenna: Antenna for wireless communication between the bus and the Pantograph Down 2000 system.

  6. RFIDClosed Radio Frequency IDentification antenna: Antenna for bus RFIDClosed Radio Frequency IDentification tag identification.

  7. Status LED: LED status indicator for the Power Link 2000 charging port.

The Wi-FiClosed Wireless Fidelity antenna, RFIDClosed Radio Frequency IDentification antenna, and status LED are collectively referred to as auxiliary components.

Express Plus Guides

product is a part of the Express Plus product family.

Access documents at ChargePoint Product Reference Documentation.

ChargePoint Documentation

Document

Content

Primary Audiences

Datasheet

Full station specifications

Site designer, installer, and station owner

Site Design Guide

Civil, mechanical, and electrical guidelines to scope and construct the site

Site designer or engineer of record

Concrete Mounting Template Guide

Instructions to embed the charging station template in a concrete pad with anchor bolts and conduit placement (these may also be included in the Site Design Guide)

Site construction contractor

Surface Conduit Entry Kit Guide

Instructions for sites where conduit cannot be run underground

Installer

Construction Signoff Form

Checklists used by contractors to ensure the site is correctly completed and ready for product installation

Site construction contractor

Installation Guide

Anchoring, wiring, and powering on

Installer

Operation and Maintenance Guide

Operation and preventive maintenance information

Station owner, facility manager, and technician

Service Guide

Component replacement procedures, including optional components

Service technician

Declaration of Conformity

Statement of conformity with directives

Purchasers and public
