Install the Pedestal

Proceed with the topics provided below to install the pedestal.

Mount and Level the Pedestal

1. Pull service wiring up through the conduit, leaving approximately 1.8 m (6 ft) extending out of the conduit.

2. Remove the top nut and top washer from each of the four bolts in the pad.

3. Place the pedestal over the conduit, routing the service wiring through the column. Ensure the long curved edge of the base plate (which is the cut-out for a CMK Cable Management Kit) is located at the back of the station.

4. Adjust the lower nuts as necessary to ensure the pedestal is level.

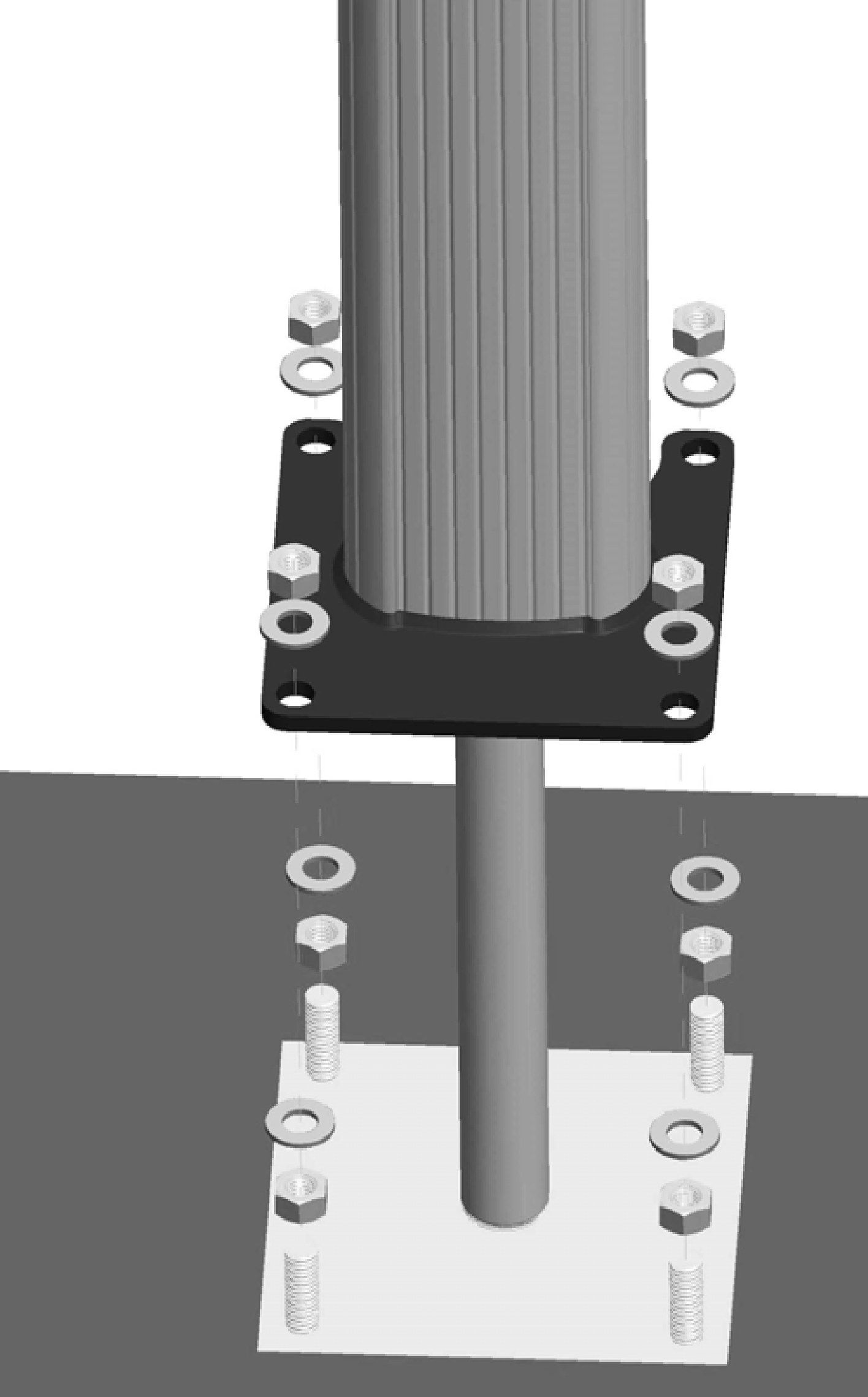

5. When level, fasten the pedestal to the bolts using the 16 mm (5/8 in) nuts and washers and the 12 mm (1/2 in) drive torque wrench with 24 mm (15/16 in) deep socket, as shown. Torque the top nuts to 122 Nm (90 ft-lbs).

Install Pedestal Covers

1. Position the two-piece pedestal covers over the bottom of the pedestal, as shown:

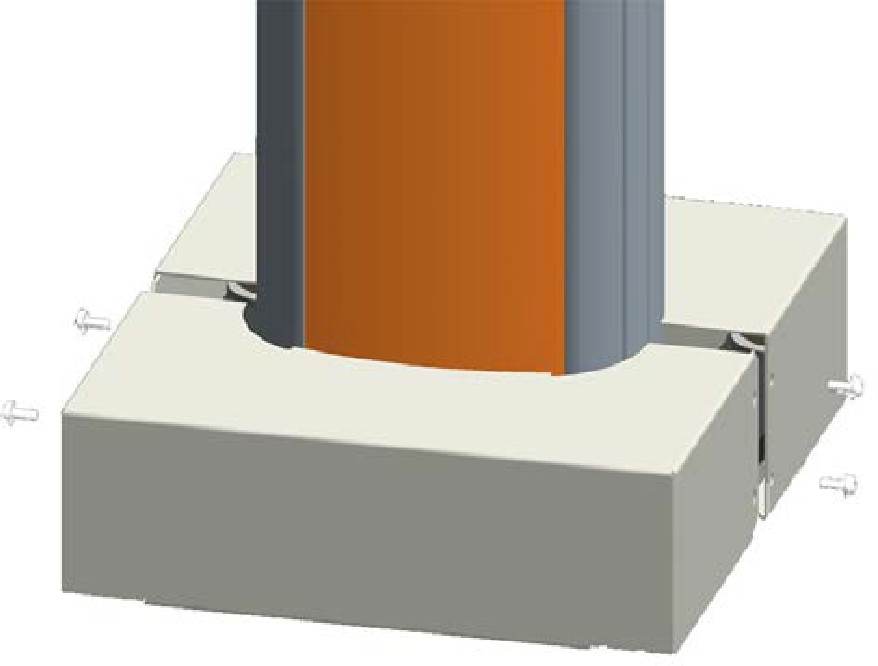

   • If the station is not using a CMK Cable Management Kit, use the back pedestal cover without the indentation (a).

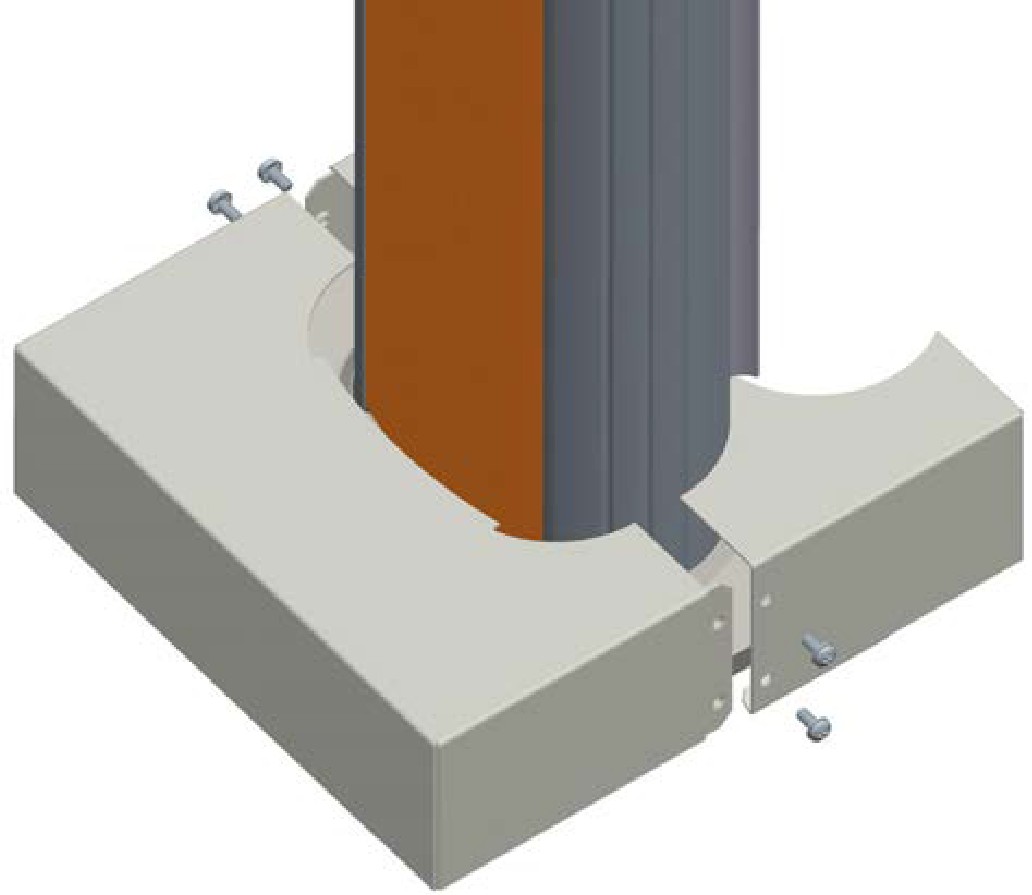

   • If the station is using a CMK Cable Management Kit, use the back pedestal cover with the indentation (b).

2. Insert the four 8-32 x 3/8 in screws, two into each side of the pedestal, as shown.

3. Tighten the screws using a Phillips screwdriver.

4. Discard the extra cover.
