Appendix: Wire Landing Locations

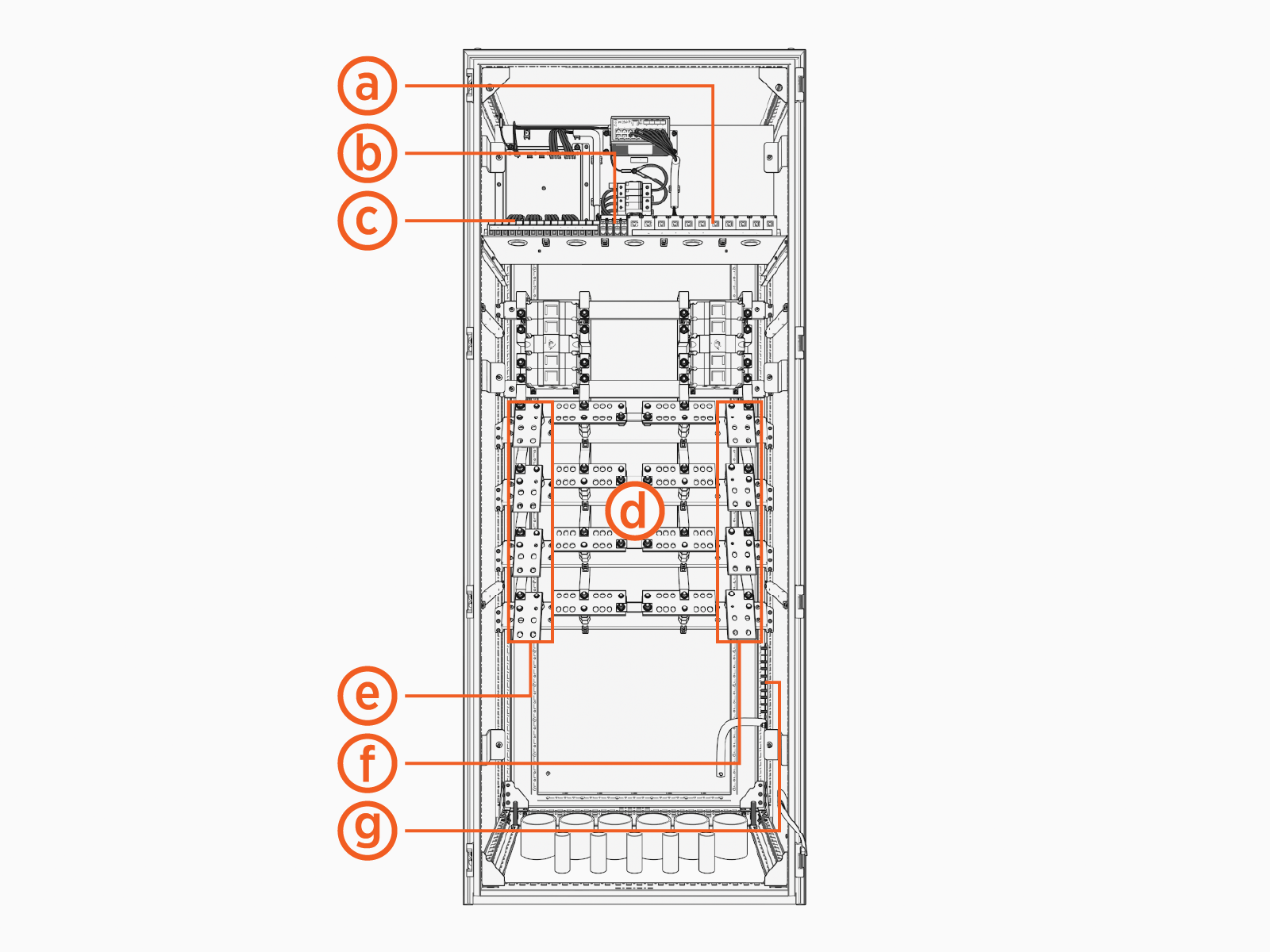

The Power Hub wire landing locations are given below.

1. Ethernet ports, all ports equivalent

2. 48 V DC input terminals, LV1 (+/-) and LV2 (+/-)

3. 48 V DC output terminals, PL1 (+/-) through PL8 (+/-)

4. High voltage DC output terminals, A1 (+/-) through A4 (+/-) and B1 (+/-) through B4 (+/-)

5. High voltage DC input terminals left, Input A (+/-) Left and Input B (+/-) Left

6. High voltage DC input terminals right, Input A (+/-) Right and Input B (+/-) Right

These terminals are absent if the Power Hub connects to only one Power Block.

7. Ground studs
