Power Link Troubleshooting

This section is aimed to help Industrial Support Engineers, field technicians, and the Commissioning team in identifying problems and performing initial debug of the problems related to Power Link 1000 and Power Link 2000.

The troubleshooting steps for the following components' faults are included in this section:

• These components are applicable to both Power Link 1000 and Power Link 2000:

  • Ethernet switch (SSLAN)

  • Control and Communication Module (UCB)

• These components are only applicable to Power Link 1000:

  • Metering, distribution, and safety board (MDS)

  • Power Link 1000 controller (FDC)

  • Smart cable (SEVB)

• These components are only applicable to Power Link 2000:

  • Contactor switch (Proton)

  • Power Link 2000 controller (FDC)

  • Cooling controller board (CCB)

  • Cable

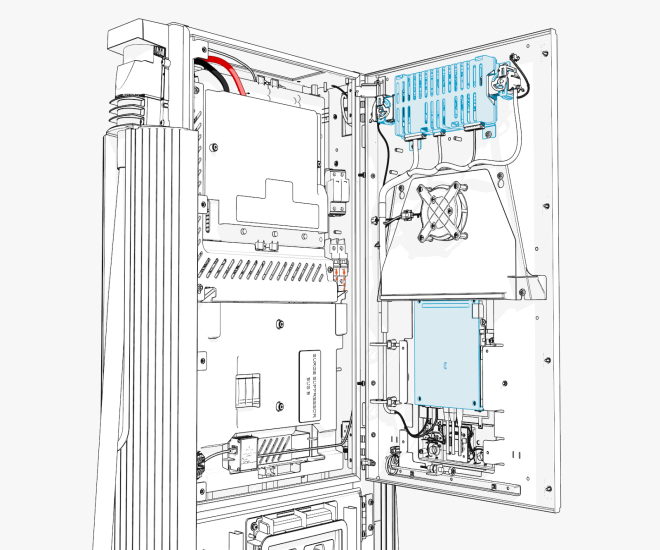

Inside View of Power Link 1000

Inside View of Power Link 2000
