Introduction

Before You Install

RISK OF SHOCK. Before performing any procedure, the technician must disconnect the power to the charging station at the service panel. Follow local code to de-energize the applicable circuit and lockout/tagout the upstream breaker before proceeding. Use a multimeter and check that the power is off. Keep power off for the circuit until all cover panels are correctly reinstalled and the work is complete. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS INJURY, LOSS OF LIFE, OR PROPERTY DAMAGE.
You must be a licensed electrician and complete online training to become a ChargePoint certified installer. If you do not complete training, you cannot access the ChargePoint network to complete installation. Find online training at: https://www.chargepoint.com/partners/training-certification. If the charging station is not installed by a ChargePoint certified installer, using a ChargePoint approved method, it is not covered under warranty and ChargePoint is not responsible for any malfunctions.

Site Prerequisites

Ensure the location of the installation site is appropriate and you are ready to install the CPF32:

  • The CPF32 must be located within 38 m (125 ft) line-of-sight from a CPGWClosed ChargePoint Gateway (ChargePoint Gateway).

  • Ensure the appropriate wiring, circuit protection, and metering is in place at the installation location by reviewing the wiring diagrams and grounding requirements described in Grounding and Wiring. All wiring is installer-provided except as noted in the manual. Ensure that wire type and color follows local and regional code.

  • The mounting template is included and a PDF version is available at ChargePoint Product Reference Documentation. Ensure the PDF version is accurate by printing it at 100% scale on 11” x 17” paper and then verifying at least one dimension.

Required Tools

  • If installing on a wood stud: stud finder

  • If installing on masonry: epoxy and 6 mm (1/4 in)-20 internally-threaded masonry anchors rated for at least 318 kg (700 lb) pull-out force

  • Bubble level

  • Drill

  • Drill bit suitable for the type of wall material (wood, masonry, etc.)

  • 12 mm (1/2 in) drive torque wrench, rated to at least 136 Nm (100 ft-lbs)

  • 24 mm (15/16 in) 6-point deep socket, for 16 mm (5/8 in) nut

  • 19 mm (3/4 in) maximum size conduit and fittings

  • #2 Phillips screwdriver

  • T10 Security Torx driver

  • 10 mm (3/8 in) hex driver

  • UK installations only:

    • Cable gland: 17 mm - 27 mm cable diameter

    • Junction box enclosure: 100 mm x 100 mm x 50 mm, 2 knockouts

    • Conduit: Ø 25 mm (1 in)

    • Grounding cable: 6 mm2 (10 AWGClosed American Wire Gauge), stranded, 300 V

    • Terminal Ring Lug: 6 mm2 (10 AWGClosed American Wire Gauge), non-insulated, M8

    • Terminal Ring Lug: 6 mm2 (10 AWGClosed American Wire Gauge), non-insulated, No. 6

    • M8 x 8mm button head cap screw

    • M8 external tooth washer

    • M8 nut

Power Select Option for 20 A Breakers

As shipped, a CPF32 provides up to 32 A of output power and requires a 40 A dedicated breaker. In situations where power supports only a 20 A breaker or where two stations are connected to the same circuit, the CPF32 must be configured for Power Select, which allows the station to operate at a lower current. To configure the CPF32 for Power Select, contact ChargePoint.

Overview of Steps

  1. Check Shipping Boxes for Correct Contents (described below)

  2. Install a Station Without a CMKClosed Cable Management Kit (if applicable) (see Section 2)

  3. Install a Station With a CMKClosed Cable Management Kit (if applicable) (see Section 3)

  4. Install the Charging Cords and Covers (see Section 4)

  5. Prepare to Activate on ChargePoint (see Section 5)

Check Shipping Boxes for Correct Contents

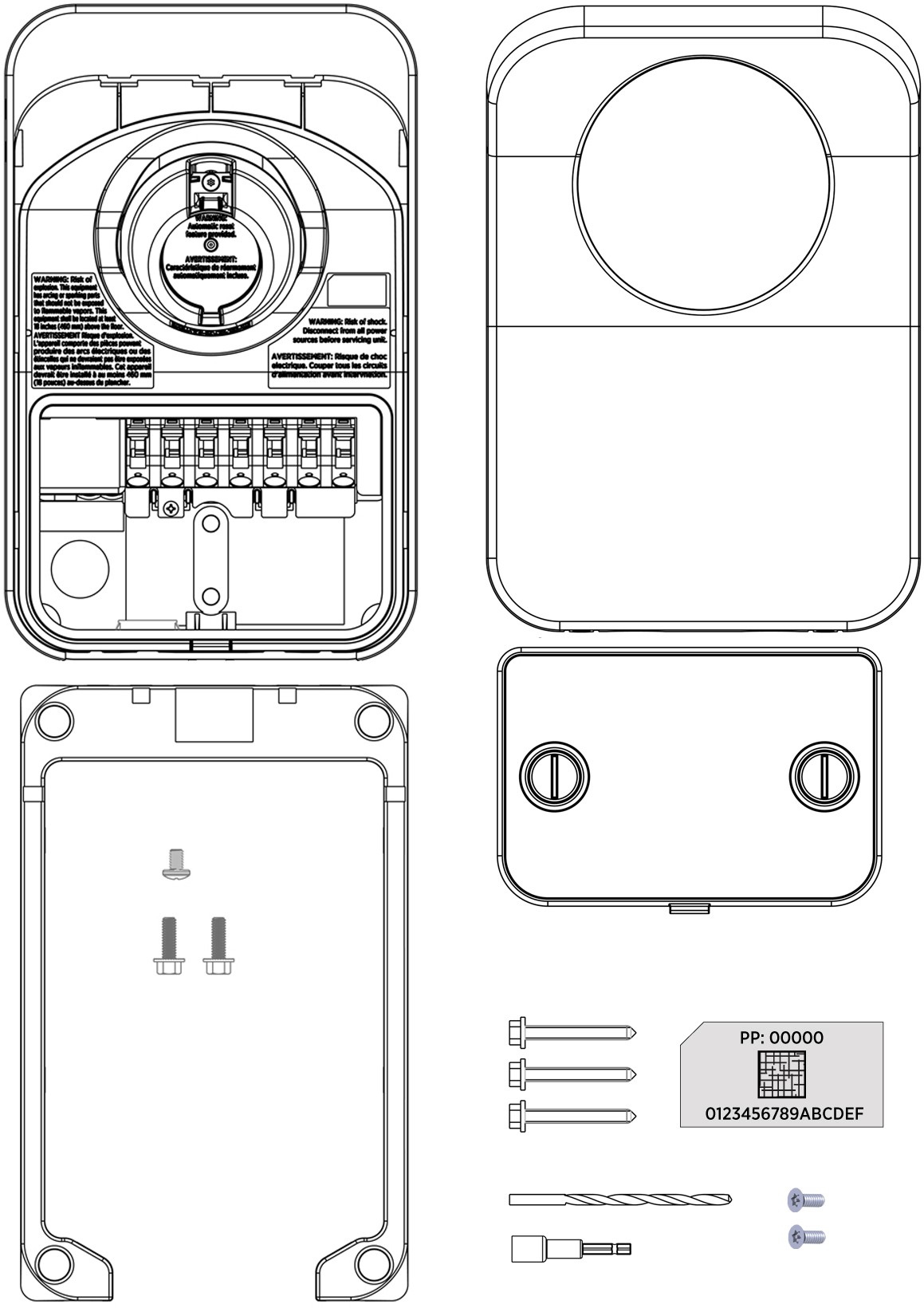

Main Unit

Each main charging unit ships in a box containing:

  • Station (1)

  • Cover (1)

  • Mounting skirt (1) (not needed for non-CMKClosed Cable Management Kit wall mounts)

  • Wire cover (1)

  • 5 mm (3/16 in) drill bit (1)*

  • 6 mm (1/4 in) X 51 mm (2 in) lag screws (3)*

  • Driver bit (1)

  • 6 mm (1/4 in)-20 x 19 mm (3/4 in) hex bolts (2)

  • 6 mm (1/4 in)-20 x 9 mm (3/8 in) Phillips screw (1)

  • T10 Torx screws (2)

  • Spare Activation Label (1). A duplicate label is attached to the inside of the main unit. KEEP this spare label for important information that is needed to activate the station on the ChargePoint network (Section 5).

    *Applicable only if mounting to a wood stud

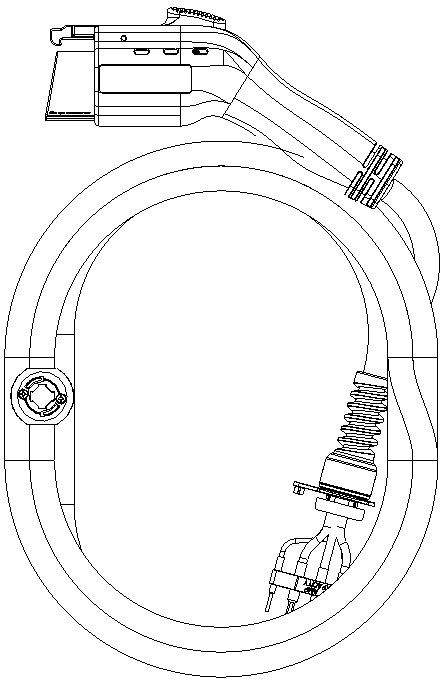

Charging Cord

Each charging cord ships in a separate box. If you ordered the Cord Management Kit (CMKClosed Cable Management Kit), each cord includes an integrated clamp.

Mounting Kit (CMK Systems Only)

  • Back bracket

  • Front bracket

  • 6 mm (1/4 in) - 20 x 19 mm (3/4 in) hex screws (4)

  • 6 mm (1/4 in) - 20 x 9 mm (3/8 in) screws (2)

  • 8 - 32 x 9 mm (3/8 in) screws (6)

  • Lower CMKClosed Cable Management Kit sign (1)

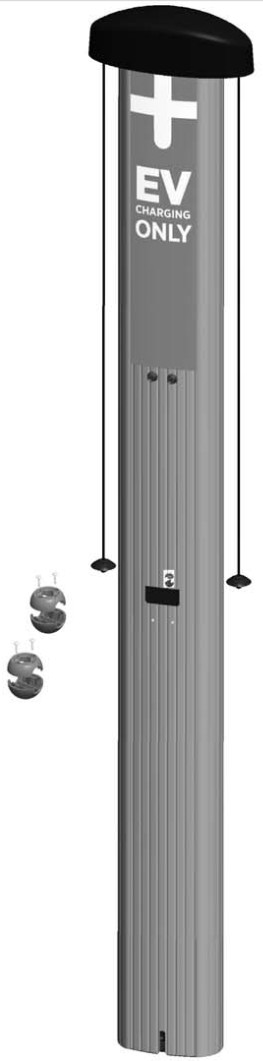

Cable Management Kit (CMK)

If you ordered the optional cord management kit, it ships in a box containing:

  • Cord management assembly with pre-installed “EVClosed Electric Vehicle CHARGING ONLY” sign (1)

  • Cable clamps (2 extra sets)

To install a CPF32 charging station without a CMKClosed Cable Management Kit, proceed to Install a Station without a CMK. For CPF32 stations with a CMKClosed Cable Management Kit, proceed to Install a Station with a CMK.
