Install Charging Cables

Skip this entire chapter if the liquid-cooled cables come preinstalled (see Power Link 2000 LCC Configuration Package).

The Power Link 2000 may be configured with one or two liquid-cooled cables (LCCClosed Liquid Cooled Cable) or non-liquid-cooled cables (non-LCCClosed Liquid Cooled Cable). The Power Link 2000 with LCCClosed Liquid Cooled Cable comes with a liquid cooling system attached to the back of the Power Link 2000 (see Power Link 2000 Installation Configurations for more information). To install charging cables, follow the instructions below:

Power Link 2000 with LCC and non-LCC cables.

Charging Cable Package

Check the package for the following components:

For any missing component, contact ChargePoint support at chargepoint.com/support.

Labeled diagram of product, tools or parts.

  1. Charging cable assembly with connector and tetherball

  2. Holster for placing the cable connector

Standard length (5.8 m or 19 ft) charging cables come with a tetherball preinstalled onto the cable. For non-LCCClosed Liquid Cooled Cable medium length (7.6 m or 25 ft) charging cables, a tetherball is not preinstalled onto the cable. It must be installed after installing the charging cable or while installing the CMKClosed Cable Management Kit.

Remove Cable Cap

Pull the cable cap up to remove and keep it aside to reinstall it later.

Technical illustration depicts the procedural step.



Remove HV DC Lug Landing Bus Bar Safety Cover

To remove HV DCClosed High Voltage Direct Current lug landing bus bar safety cover, complete the following steps:

  1. Loosen the screw (x1 per safety cover).

    Technical illustration depicts the procedural step.

  2. Slide the safety cover up to remove it from the screw.

    Technical illustration depicts the procedural step.

Install Cable Assembly

Follow instructions below to install each charging cable assembly.

  1. Route the red (+) and black (-) HV DCClosed High Voltage Direct Current wires through the Ferrite ring. Route other wires, such as ground (green) and Ethernet, outside of the Ferrite ring.

    While routing the left side cable through the Ferrite ring, make sure that the red (+) wires are at the front side and black (-) wires are at the rear side to easily maneuver and land them onto their respective poles. Conversely, while routing the right side cable, make sure that the black (-) wires are at front side and red (+) wires are at the rear side.

    Technical illustration depicts the procedural step.

  2. Install cable assembly onto the alignment pins (x2).

    Ensure the small cables do not get pinched between the cable assembly and the Power Link 2000 frame.

    Technical illustration depicts the procedural step.

  3. Torque the screws (x4) to 4.5 Nm (40 in-lb).

    Technical illustration depicts the procedural step.

Connect Wires

The illustrated cable connections on the left side and right side are for the left side and right side charging cables, respectively.

Connect HV Wires

To connect HVClosed High Voltage wires, complete the following steps:

Charging cable HV DC wire and cable connections

  1. Remove the lug nuts (x4 per red and black HV DCClosed High Voltage Direct Current wires; x1 per green ground wires).

  2. Connect red HV DCClosed High Voltage Direct Current wire lugs to positive (+) and black HV DCClosed High Voltage Direct Current wires to negative (-) pole.

  3. Connect green ground wire lugs (x2 per charging cable) to ground stud on the frame.

  4. Torque all lug nuts to 5.6 Nm (50 in-lb) and mark using a torque paint pen.

Connect LV Wires

To connect LVClosed Low Voltage wires, complete the following steps:

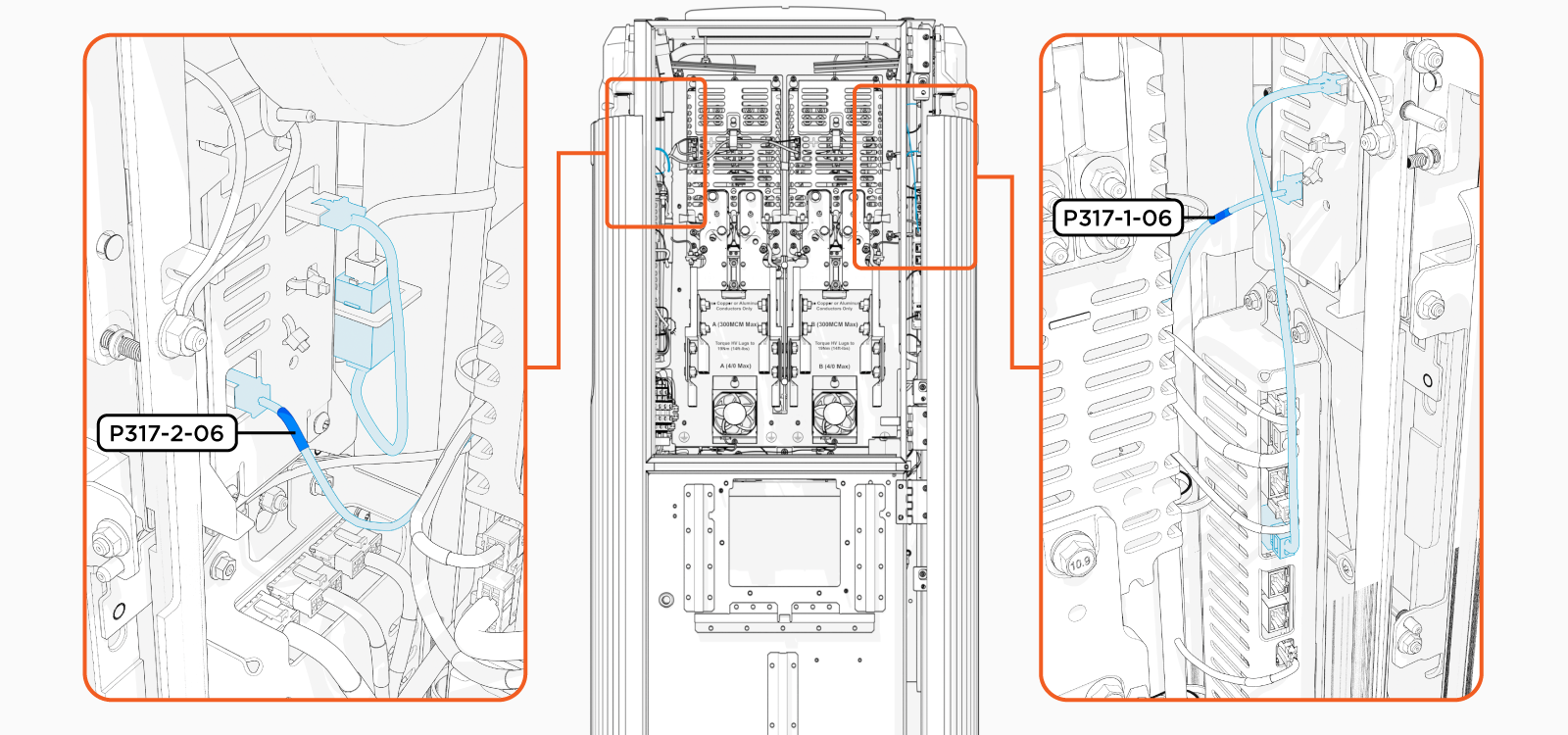

Non-LCC wire and cable connections

  1. Plug in the LVClosed Low Voltage wire (with labels P317-2-06 and P317-1-06) to four pin socket on the cable assembly.

  2. Plug in the Ethernet cable from the charging cable assembly, as illustrated above.

Reinstall HV DC Lug Landing Bus Bar Safety Cover

To reinstall HV DCClosed High Voltage Direct Current lug landing bus bar safety cover, complete the following steps:

  1. Install the safety cover onto the screw (ensure that the screw is loose) and slide it down.

    Technical illustration depicts the procedural step.

  2. Torque the screw to 1.7 Nm (15 in-lb).

    Technical illustration depicts the procedural step.

  3. Tuck the internal low voltage supply wires under the wireway tab on the cover.

    Technical illustration depicts the procedural step.

Install Holsters

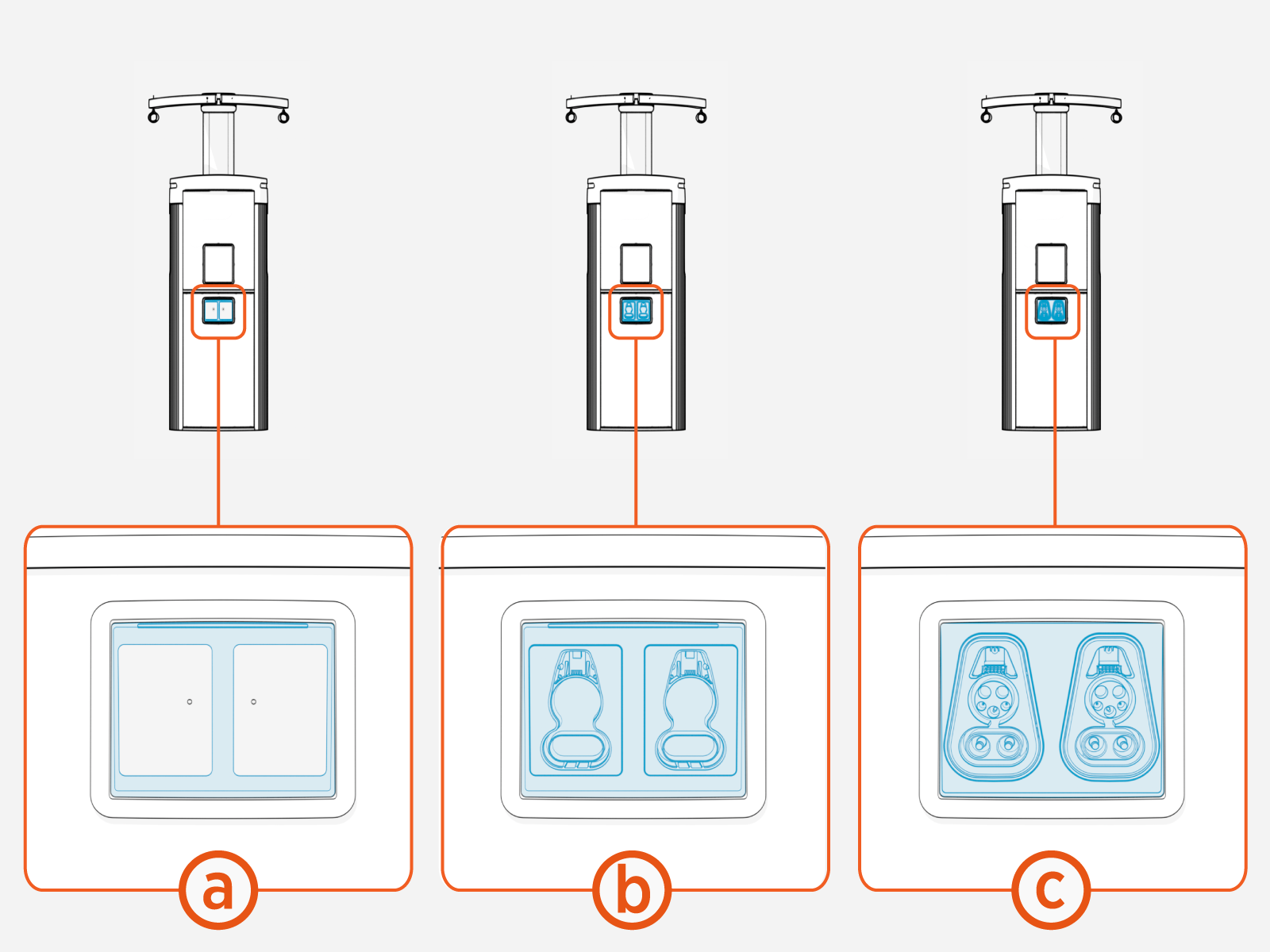

Power Link 2000 can be configured with standard holsters or Omni Port. A newly shipped Power Link 2000 shall arrive in one of the following configurations:

Labeled diagram of product, tools or parts.

  1. With a holster bracket preinstalled (standard holsters must be field-installed into the bracket)

  2. With standard holsters and holster bracket preinstalled

  3. With Omni Port preinstalled

Install Standard Holsters

If the Power Link 2000 requires standard holsters but did not ship with them preinstalled, follow

instructions in this section to install holsters.

  1. Find the holster shipped with the charging cable.

  2. Align and seat the holster onto the holster bracket.

    Technical illustration depicts the procedural step.

  3. Torque the screws (x4) to 2.8 Nm (25 in-lb).

    Technical illustration depicts the procedural step.

  1. If the Power Link 2000 is configured with two charging cables, repeat the above procedure to install a second holster.

Install Omni Port

If the Power Link 2000 requires configuration with Omni Port but did not ship with one preinstalled, follow instructions in this section to install the Omni Port.

Mount Omni Port

  1. Unpack the Omni Port package. Confirm all parts listed below are present.

    2. For any missing component, contact chargepoint.com/support.

    Labeled diagram of product, tools or parts.

    1. Omni Port assembly with cable

    2. Pigtail cable



  1. If the Power Link 2000 shipped with a standard holster bracket preinstalled, remove screws (x6) and remove the holster bracket.

    Technical illustration depicts the procedural step.

  1. Align and seat the Omni Port assembly into the holster opening.

    Technical illustration depicts the procedural step.

  2. Install screws (x6). Torque to 4.5 Nm (40 in-lb).

    Technical illustration depicts the procedural step.

Connect Omni Port wires

To connect Omni Port wires, complete the following steps:

  1. Disconnect and remove the Omni Port pigtail cable. The pigtail cable is not needed for Power Link 2000 Variation B.

    Technical illustration depicts the procedural step.

  2. Route the Omni Port cable harness to reach the main cable harness on the Power Link 2000 door.

    The cable harness must route behind the mid-height brace and through the door cable guide to prevent the cable from being pinched when closing the door.

    Technical illustration depicts the procedural step.

  3. Connect the Omni Port cable harness to the main cable harness.

    The cables are labeled as shown below. The latch must snap onto the receptacle connector with a click to ensure the connection is secure.

    Technical illustration depicts the procedural step.

  4. Use zip ties to secure the Omni Port cables to the main cable harness.

    Pull excess cable into the Power Link 2000 pedestal to ensure there is no loose wire hanging from the door. Loose wires may get pinched when closing the door.

    Technical illustration depicts the procedural step.

  5. Check that the lower door can close properly.

    The rear side of the Omni Port should not touch the HV DCClosed High Voltage Direct Current wires within the Power Link 2000 pedestal when the door is closed. If needed, adjust the HV DCClosed High Voltage Direct Current wires to avoid such contact.
