Mechanical Characteristics

Mechanical Specifications

Mechanical Characteristics	Values
Temperature range	-25 °C to 50 °C
Protection degree	IP56
Impact protection degree (IK)	IK10
Dimensions (WxDxH)	21 x 15 x 36 cm
Enclosure materials	Dye cast aluminum and polycarbonate
Weight	Up to 10 kg (including 5 m and 7.5 m cables)
Pollution degree	PD3

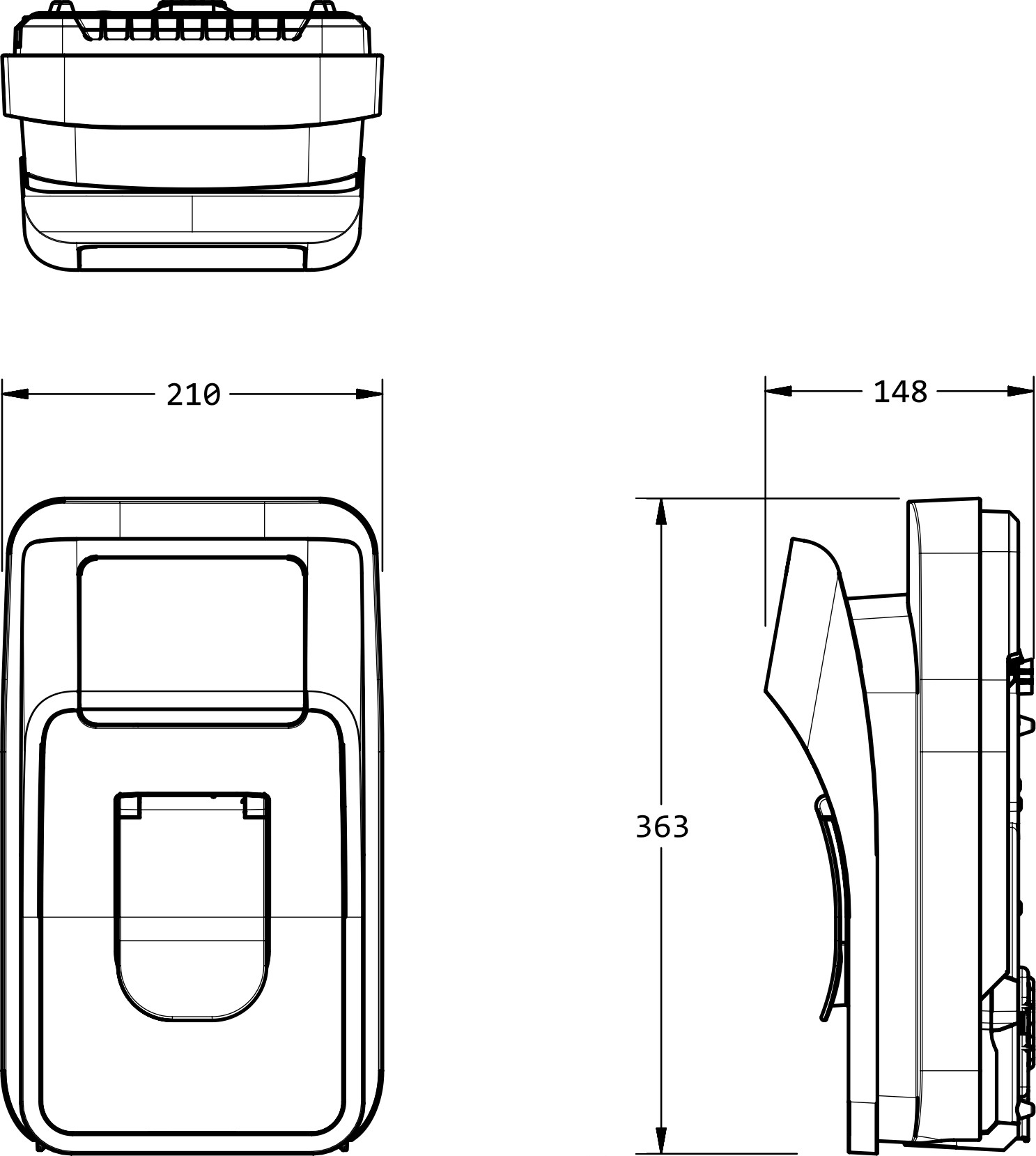

Charging Station Dimensions



Electrical Characteristics

ChargePoint Flex Series stations (also known as CP800) are Alternating Current (AC) charging stations, capable of delivering up to 22 kW (three phase) or 7.4 kW (one phase) of power to an Electric Vehicle (EV Electric Vehicle).

ChargePoint Flex Series charging stations include overcurrent protection which disconnects the outlet if the current is more than or equal to 1.25 times the maximum current set.

For the upstream protection breaker, ChargePoint recommends using Curve B or C Miniature Circuit Breakers (MCB Miniature Circuit Breaker) and must be rated as follows:

• 20 A for a 16 A single or three phase charging station

• 25 A for a 20 A single or three phase charging station

• 32 A for a 25 A single or three phase charging station

• 40 A for a 32 A single or three phase charging station

Electrical Specifications

Feature	Description
Input voltage	~230/400 VAC 3ph + N + PE
Protective class	Class 1. Protective earth and supplementary isolation device installed upstream is compulsory.
Rated Impulse Voltage (Uimp)	4 kV
Rated Insulation Voltage	1.5 kV for 1 min
Input/output current	Maximum 32 Amps, reduction can be applied.
Rated power	Maximum 22 kW (3 phase) or 7.4 kW (1 phase) per output. Power de-rating can apply.
Mode of charging	Mode 3
Type EV Electric Vehicle connection	Case B and case C according to IEC 61851-1:2017
Type of connector	Type 2 EV Electric Vehicle connector according to IEC 62196-2 Type 2-S socket outlet according to IEC 62196-2 Type 2 socket outlet according to IEC 62196-2   Adapters between different EV Electric Vehicle connectors are not recommended.
Supported grid connections	TT, TN-S Terra Neutral Separate, TN-C Terra Neutral Combined-S and IT.
Residual Current Device (RCD Residual Current Device, RCCB Residual Current Circuit Breaker or RCBO Residual Current Breaker with Overload Protection)	Not included, must be provided in the installation. Type A, 40 Amps, 4 pole for 3 ph, and 2 pole for 1 ph.
DC sensor leakage (In> 6 mA DC)	Embedded
Overload protection (1,25 times In)	Embedded
Surge protection devices (optional)	These components are not supplied with the charger. If determined necessary during the site assessment, it must be installed as part of the installation process. Refer to the Surge Protective Devices section for more information.
Welded switching device detection	Embedded
Short-circuit protection RCBO Residual Current Breaker with Overload Protection or MCB Miniature Circuit Breaker	Not included, must be provided in the installation.
Short-circuit capacity	Withstands up to 223 A for 5 seconds and up to 5000 A for 10 milliseconds.
Metering device	MID Measuring Instruments Directive meter is included, accuracy Class B.
Locking system for Case B	Included.
Phase balancing (optional)	Some charging stations can switch and change the line configuration for phase balancing. Order L1, L2, L3 and N can be changed to L1, L3, L2 and N with internal switching devices.
Ventilation function (State D)	Not permitted. The CP800 will stop charging if ventilation is requested from the Electric Vehicle.
Communication port (optional)	Ethernet
Electromagnetic compatibility	Class B

Wiring Diagram

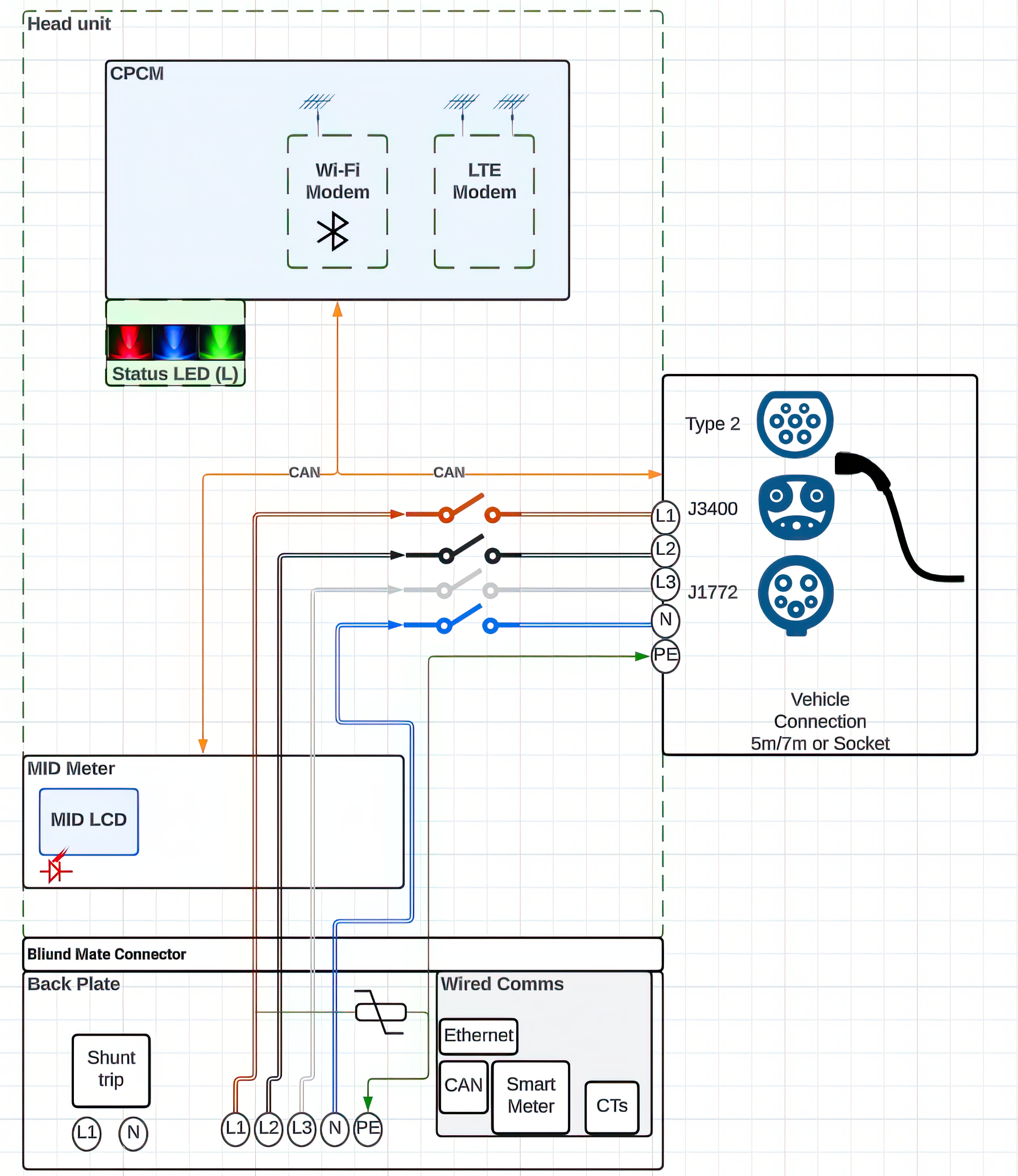

The following diagram represents a simplified description of the wiring configuration of a ChargePoint Flex Series charging station.

At least L1, N and PE shall be connected to the main terminals of the charger. This is applicable for both 1ph and 3ph charger configurations.



European Standards

Flex Pro charging stations comply with the following standards:

List of European Standards

Standards
EN 50470-1:2006+A1:2018
EN 50470-3:2006+A1:2018/EN 50470-3:2022
IEC 62052-11:2003
IEC 62053-21:2003
WELMEC 7.2:2019
REA-Dokument 6-A:2017
PTB-A 50.7:2002
IEC 62052-11
IEC 62052-31
IEC 61851-2017
IEC 61851-21-2:2018
IEC 61439-7:20
IEC 62955 (applicable clauses to 6 mA DC detection only)
EN 63000:2018
ETSI EN 300 328 V2.2.2
ETSI EN 301 893 V2.1.1
ETSI EN 300 440 V2.2.1
ETIS EN 300 330-2 V1.5.1
EN 62311
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.3.2
ETSI EN 301 489-17 V3.2.4
ETSI EN 301 489 -52 V1.2.1

Flex Series Labels

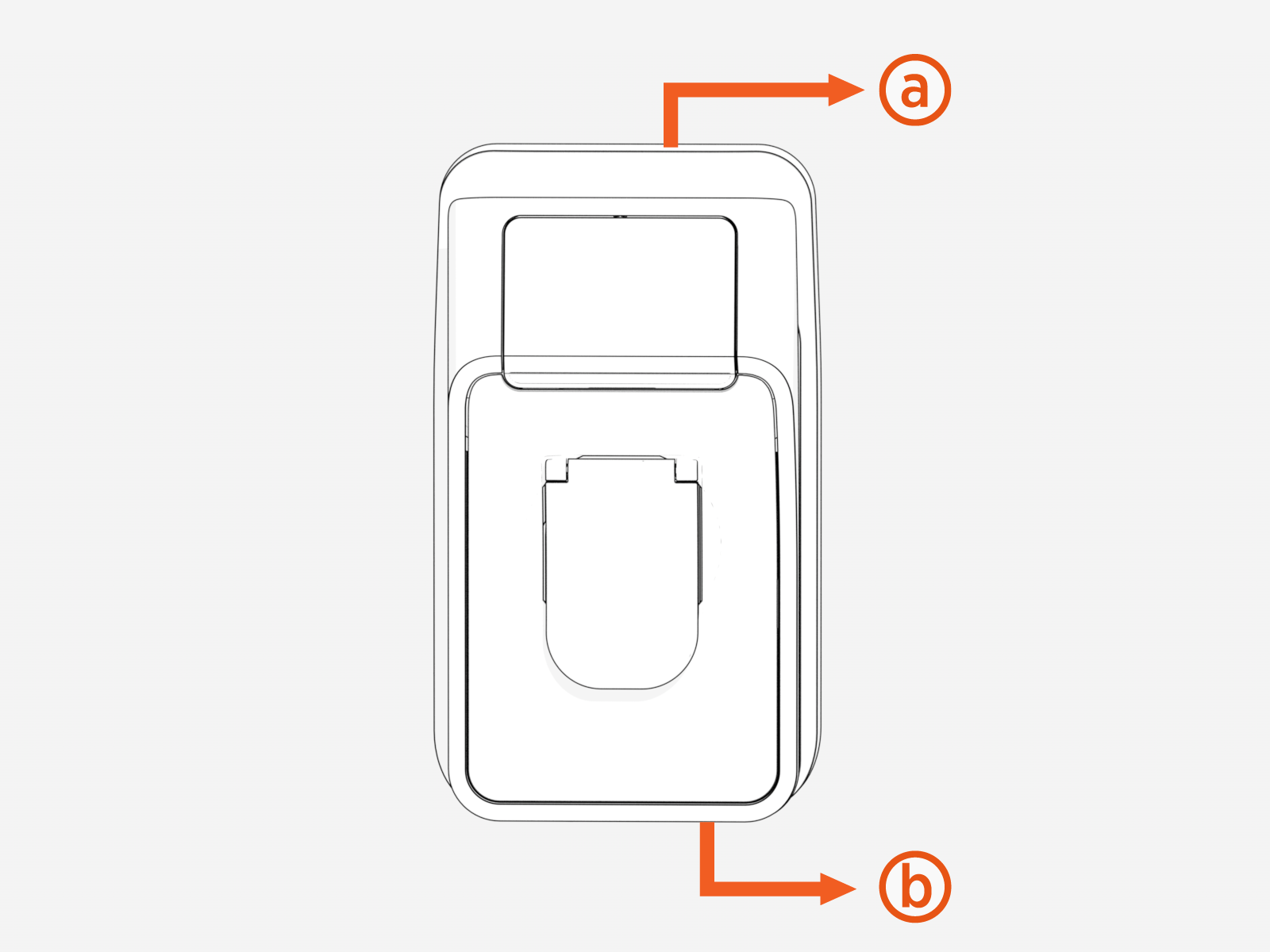

Flex Series charging stations have main product, current and voltage, and tamper proof labels:

• The main product label (a) including Eichrecht information is on the top of the charger. This label includes manufacturer information, metering details, and serial number information.

• The current and voltage label (b) is on the bottom right corner of the charger.

  Tamper proof labels are applied by the manufacturer and are described below.



Serial Number Location

To find the serial number of a Flex Series charging station, start the ChargePoint app. Complete the following steps from the ChargePoint Cloud Dashboard 1.

1. Log in to ChargePoint and select Stations.

2. Find the MAC Message Authentication Code address and serial number (System S/N) next to the station name in the Stations Overview table or check your product label, as shown in the following section.

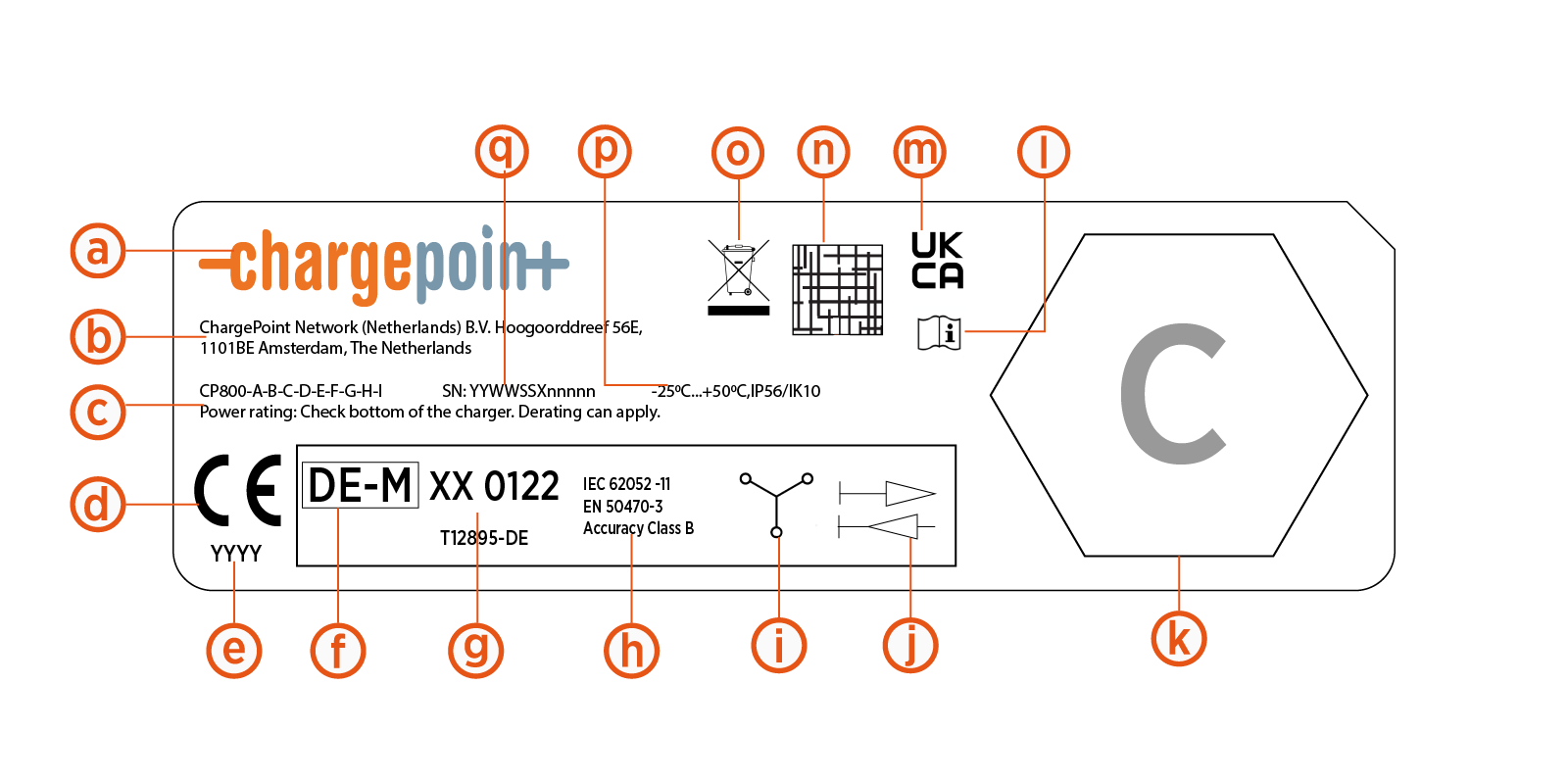

Product Label

1. Manufacturer logo

2. Company address

3. Product type designation

4. CE marking

5. Year of manufacture

6. Eichrecht metrology marking

7. Year of manufacture, notify body number and certificate number

8. Accuracy class of the charging station

9. 3 phase or 1 phase symbol

10. Bi-directional metering function symbol

11. EN 17186 identifier

12. Icon, documentation. Check manual for more information.

13. UKCA marking

14. QR Quick Response code with serial number

15. WEEE symbol. Do not bin this product.

16. Temperature rating/IP rating

17. Serial number

Current and Voltage Label

1. Input and output voltage.

2. Maximum current (and power). Power de-rating can be applied by software.
