Prepare the Housing

Perform the following steps to prepare the housing:

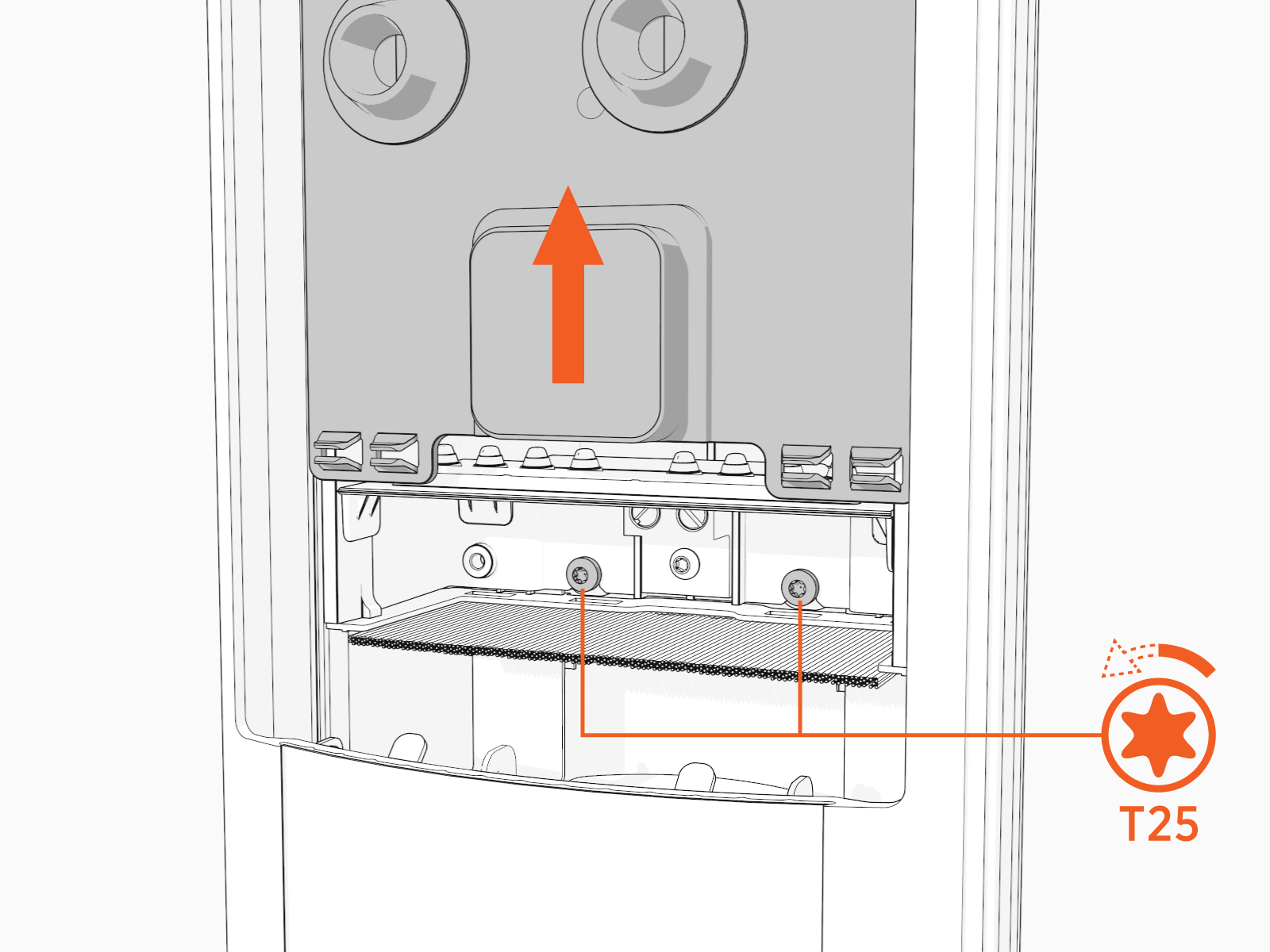

  1. Lift the power plate cover. Loosen, but do not remove, two screws.

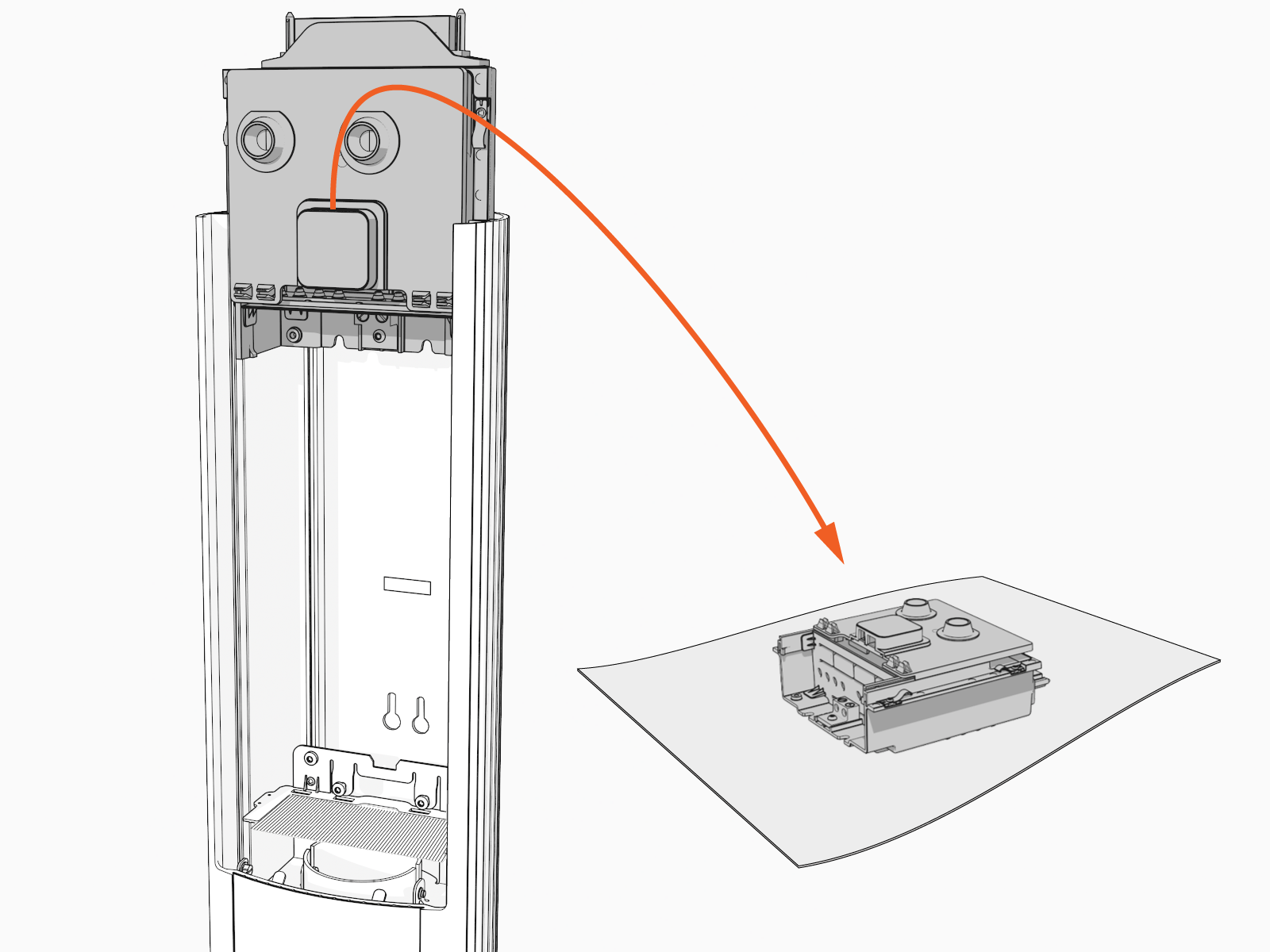

  2. Move the power plate and set it gently on a padded surface.

  3. Drill or use the knockouts in the housing to create holes for the conduit. If drilling holes, drill near the center of the lower housing plate.

    • 33 mm (1.3 in) knockout

    • 24 mm (0.95 in) knockout (optional Ethernet wiring)



    Maximum sizes for larger conduit:

    • Two 40 mm (1.5 in) conduits or two 5 x 16 mm2 armored cables (power in), 0.75 inch conduit (optional Ethernet)

    • One 68 mm (2.5 in) conduit or one 5 x 25 mm2 armored cable (power in), 0.75 inch conduit (optional Ethernet)

  4. Snap lower bracket onto station.
