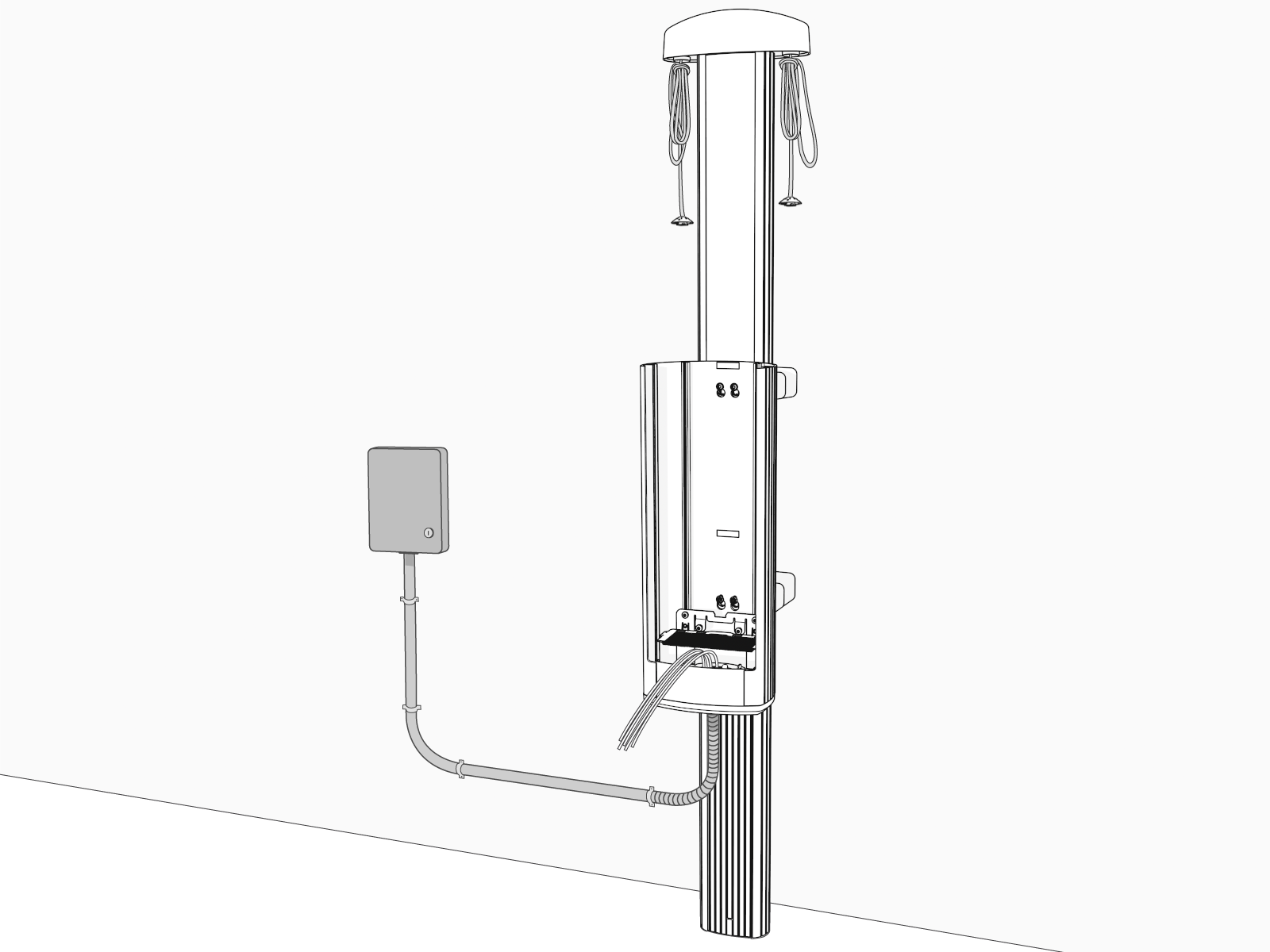

Install the Conduit

Perform the following steps to install the conduit:

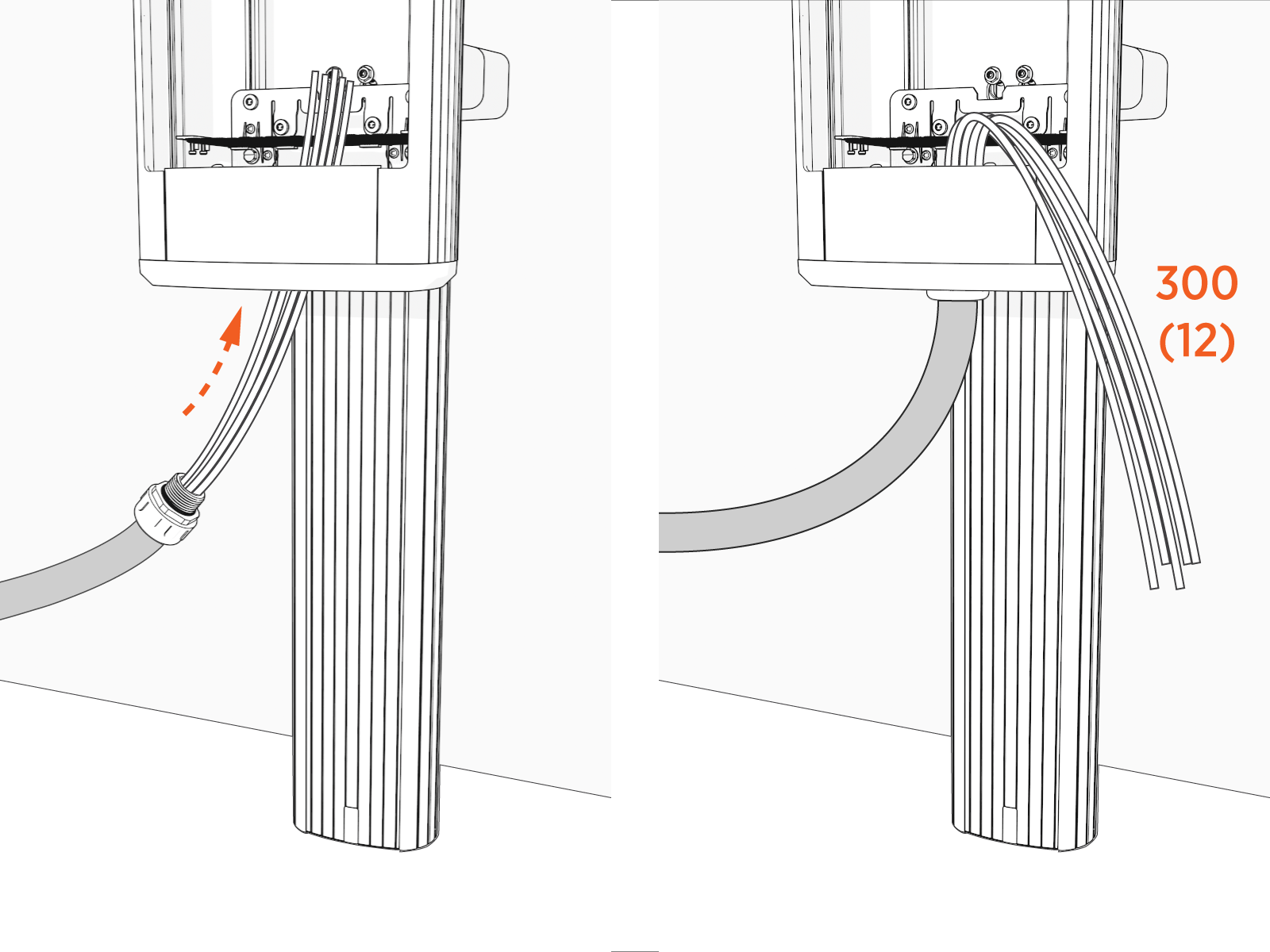

  1. Feed conduit or armored cable through lower station bracket and into station.

    The length of wire available from the end of the conduit or the wall mount base must be at least 300 mm (12 in).

  2. Select the appropriate gland or hardware and sealant, if applicable, to attach the conduit to the station.

Install and seal the conduit following local codes.


After installing the wall mount, go to Connect Wiring.
