RFID Reader

Required Tools and Materials

Tools

	T10 Torx screwdriver		Mobile elevating work platform (scissor lift), as needed
	5/16 in wrench

Before You Begin

1. Power off.

2. Open the PD Controller.

Replace the RFID Reader

To replace the RFID Radio Frequency IDentification Reader, perform the following steps:

1. Disconnect the Ethernet cable and the DC barrel plug.

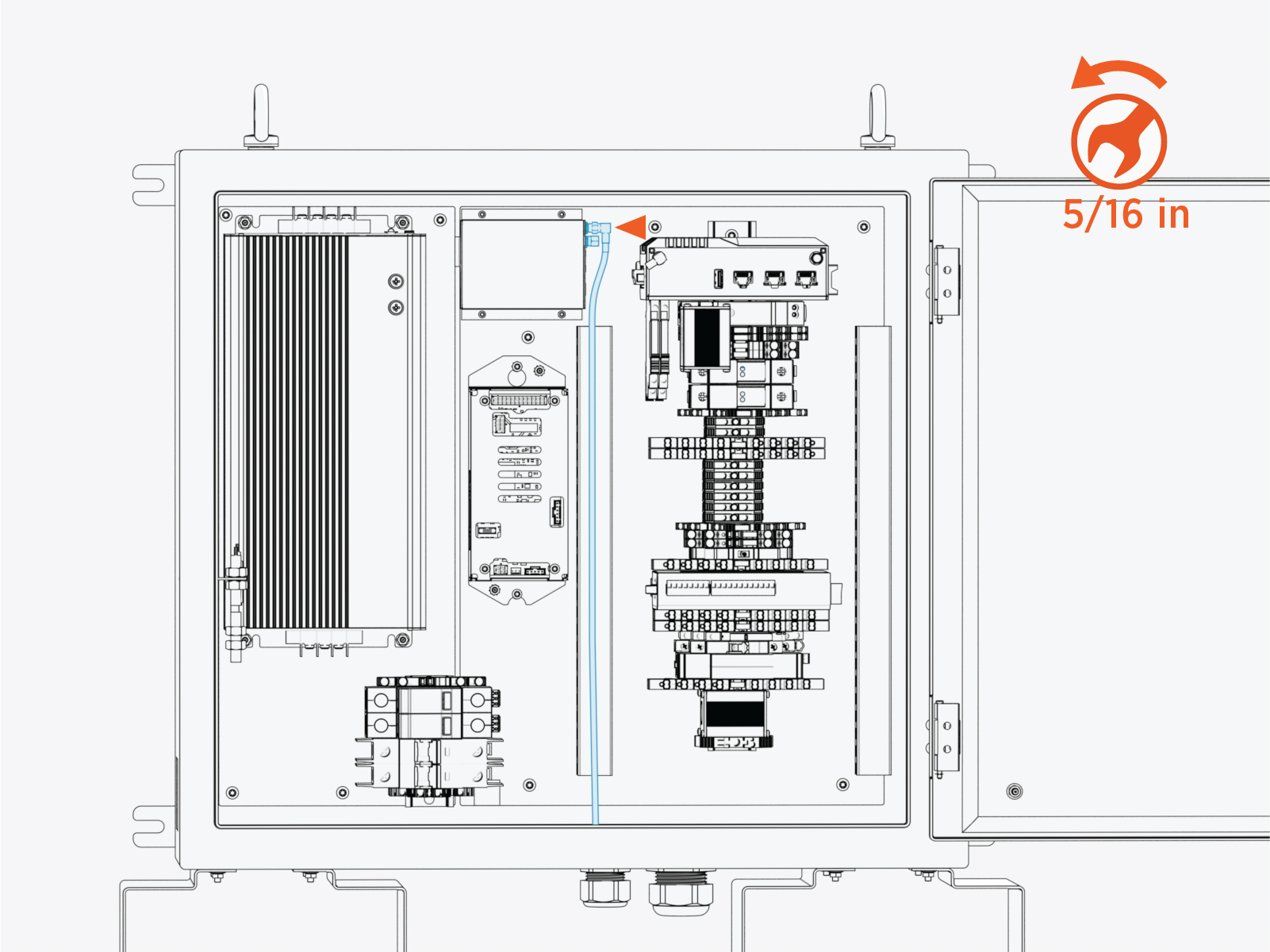

2. Disconnect the right-angle adapter and cap from both SMA connections on the RFID Radio Frequency IDentification reader. Set these aside for reinstallation.

   Store the right-angle adapter and the cap for reuse during RFID Radio Frequency IDentification reader replacement.



   • Torque coax connections from the cable to the right-angle adapter and from the right-angle adapter to the RFID Radio Frequency IDentification reader to 0.45 Nm (4 in-lb).

   • Hand-tighten the cap.

   The coax cable must be reinstalled on the same port it was removed from (upper port). The system will not function if the cable is connected to the wrong antenna port.

3. Remove the screws (x4) and the toothed washer (x1).

    Retain this hardware for re-installation.



   • Torque these screws to 0.6 Nm (5 in-lb).

   • Place the ground wire between the RFID Radio Frequency IDentification enclosure and the toothed washer to ensure proper grounding.

4. Remove the RFID Radio Frequency IDentification reader.



5. Reverse the above steps to reinstall with replacement RFID Radio Frequency IDentification reader.
