Wi-Fi Antenna

Required Tools and Materials

Tools

	10 mm hex socket		Mobile elevating work platform (scissor lift), as needed
	13/16 in wrench

Before You Begin

1. Power off.

2. Open the PD Controller.

Replace the Wi-Fi Antenna

To replace the Wi-Fi Wireless Fidelity antenna assembly, perform the following steps:

1. Disconnect the Wi-Fi Wireless Fidelity antenna cable from the Wi-Fi Wireless Fidelity antenna assembly.



   Torque to 1.5 Nm (13.3 in-lb).

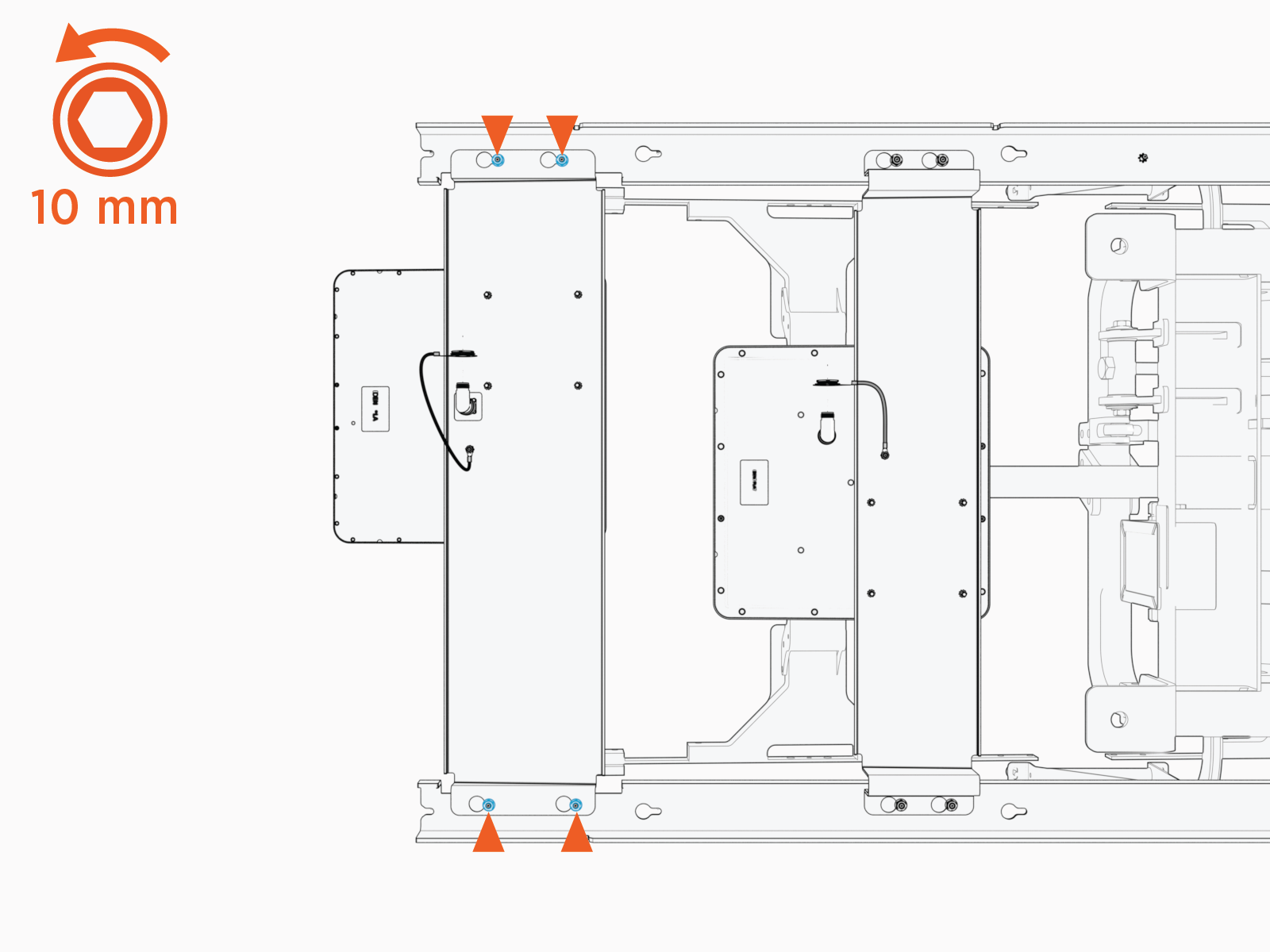

2. Loosen the M6 nuts (x4) securing the Wi-Fi Wireless Fidelity antenna assembly to the left and right rails.



   Torque these nuts to 5.6 Nm (50 in-lb).

3. Slide the Wi-Fi Wireless Fidelity antenna assembly away from the keyhole slots until the mounting studs disengage from the rails.



4. Carefully remove the Wi-Fi Wireless Fidelity antenna assembly from the left and right rails.

5. Reverse the above steps to reinstall with replacement Wi-Fi Wireless Fidelity antenna.
