Door Air Filter
This section provides information on replacing the door air filter.
Required Tools and Materials
|
|
Stepladder |
Service Components

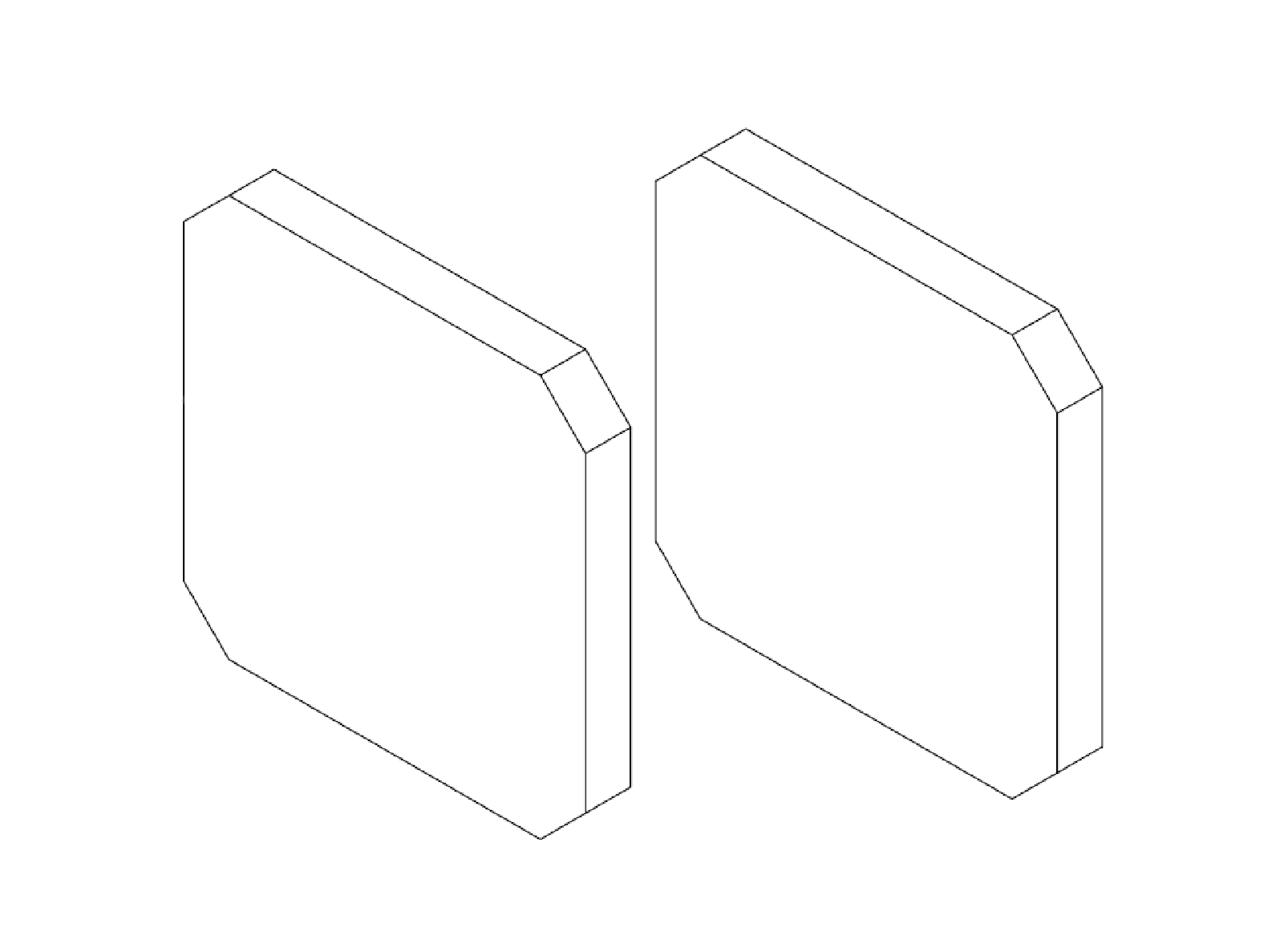

Each kit ships with two air filters.
Replace Door Air Filter

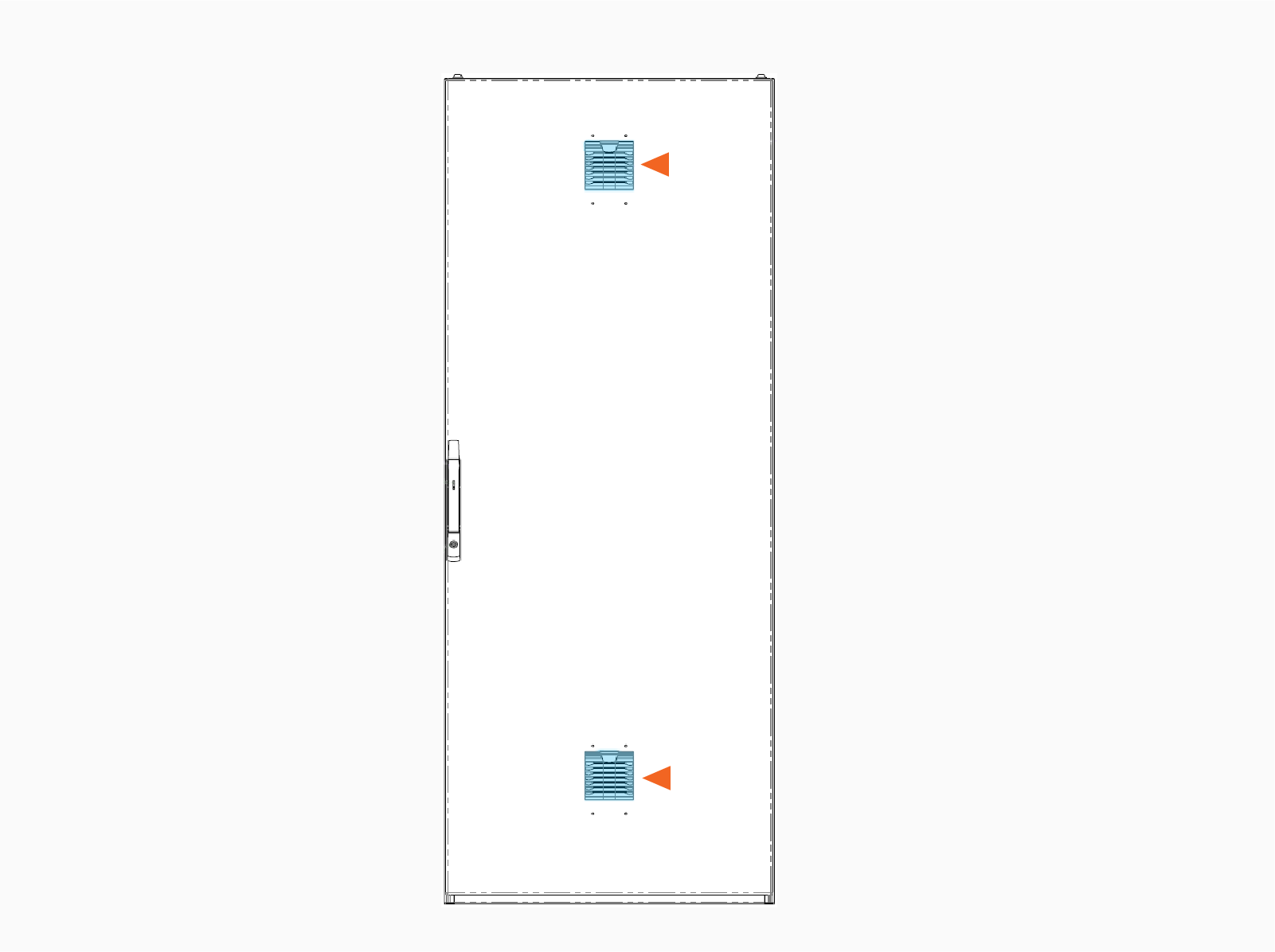

The Power Hub door has two filter vents, located beneath vent hoods, as shown below.
Follow the procedure below to replace the air filter in the vent assembly.
-
Slide the hood up to release it from the Power Hub door. Remove the hood.
-
Grasp the tab on the vent assembly and pull to remove the assembly from the door.
-

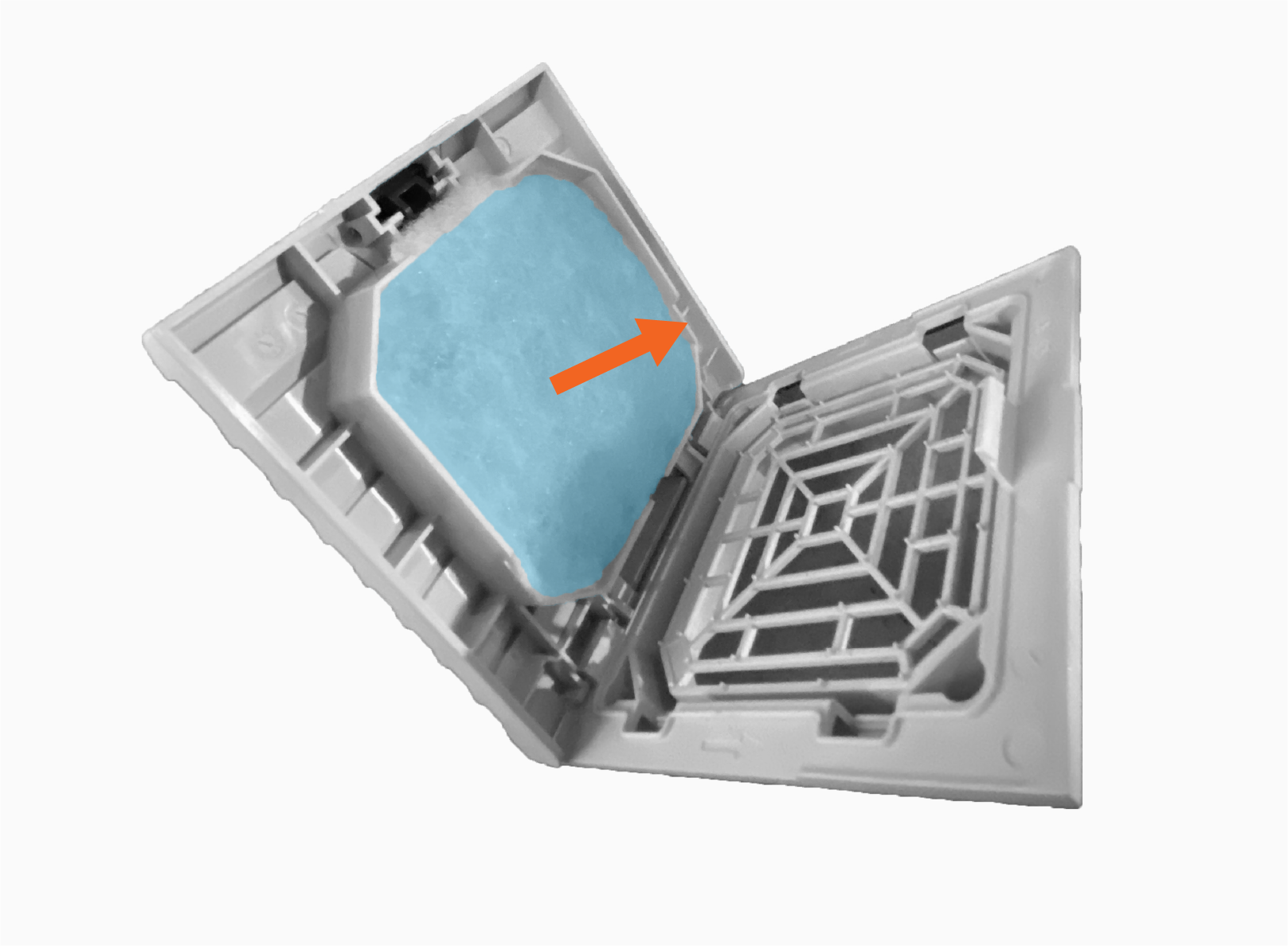

Open the vent assembly and remove the air filter.
Reverse the above steps to install the replacement air filter.
