Fuses

This section provides information on replacing the fuses.

Required Tools and Materials

Stepladder



Service Components

Each kit ships with two replacement fuses.

Before You Begin

  1. End charging sessions at downstream Power Link 1000s.

  2. De-energize the low voltage cabinet.

Replace Fuses

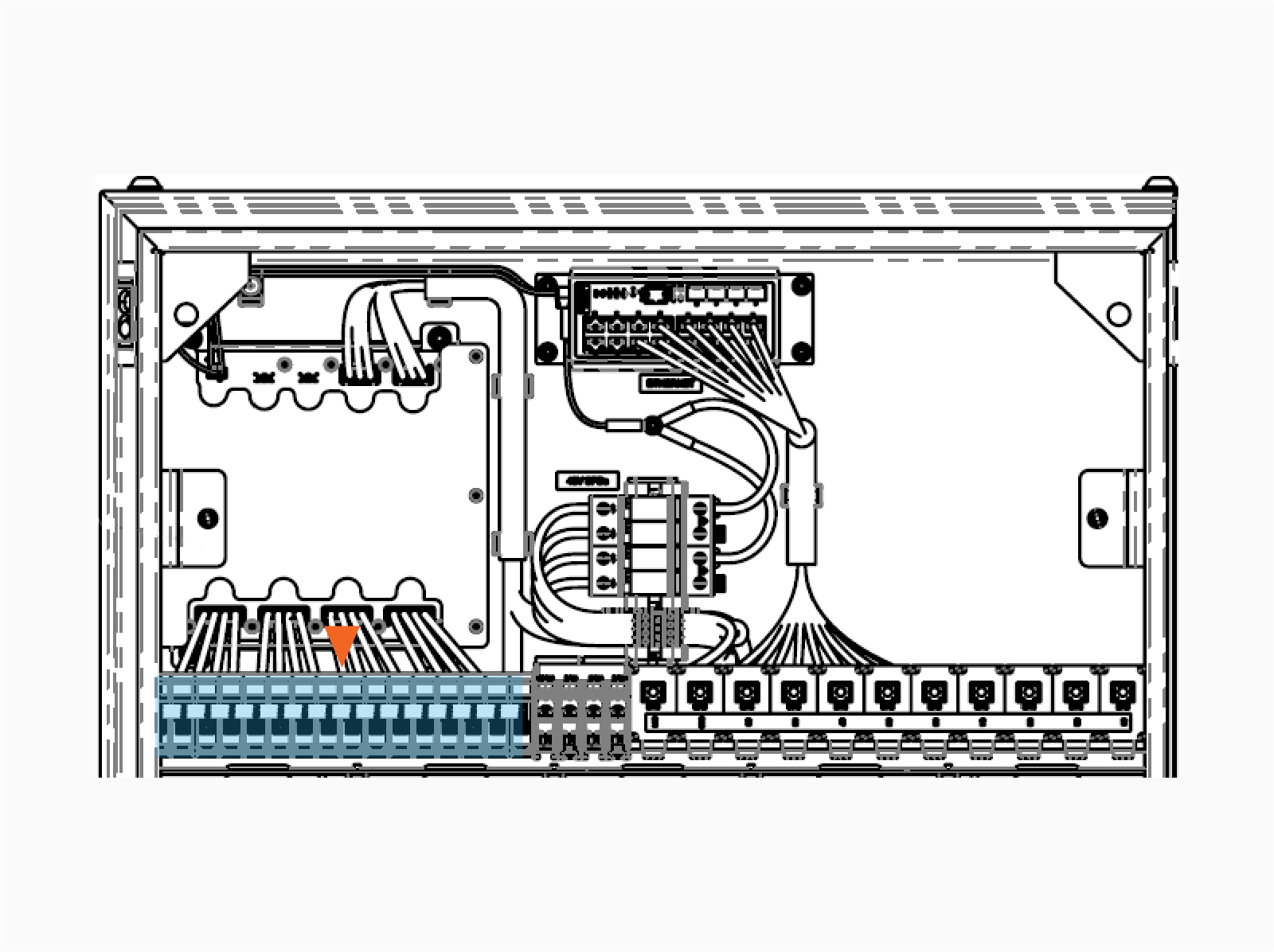

There are eight dual-pole fuse blocks in the low voltage cabinet of the Power Hub, shown below.

Follow the procedure below to replace the fuses in one fuse block.

  1. Pull up on the fuse holder tab.

  2. Remove the fuses.

    Note the orientation of the fuse during removal. Install the replacement fuse with the same orientation.

Reverse the above steps to install the replacement fuses.

To complete the service, power on the Power Hub.

  • To adhere to ChargePoint best practices, complete the post-service checklist before you leave the site.

  • For assistance or to return a faulty part to ChargePoint, go to chargepoint.com/support and contact technical support using the appropriate region-specific number.
