Vent Hood

This section provides information on replacing the vent hood.

Required Tools and Materials

Stepladder

Service Components

The service components are listed as follows:

1. Vent hood

2. Filter vent

Replace Vent Hood and Filter Vent

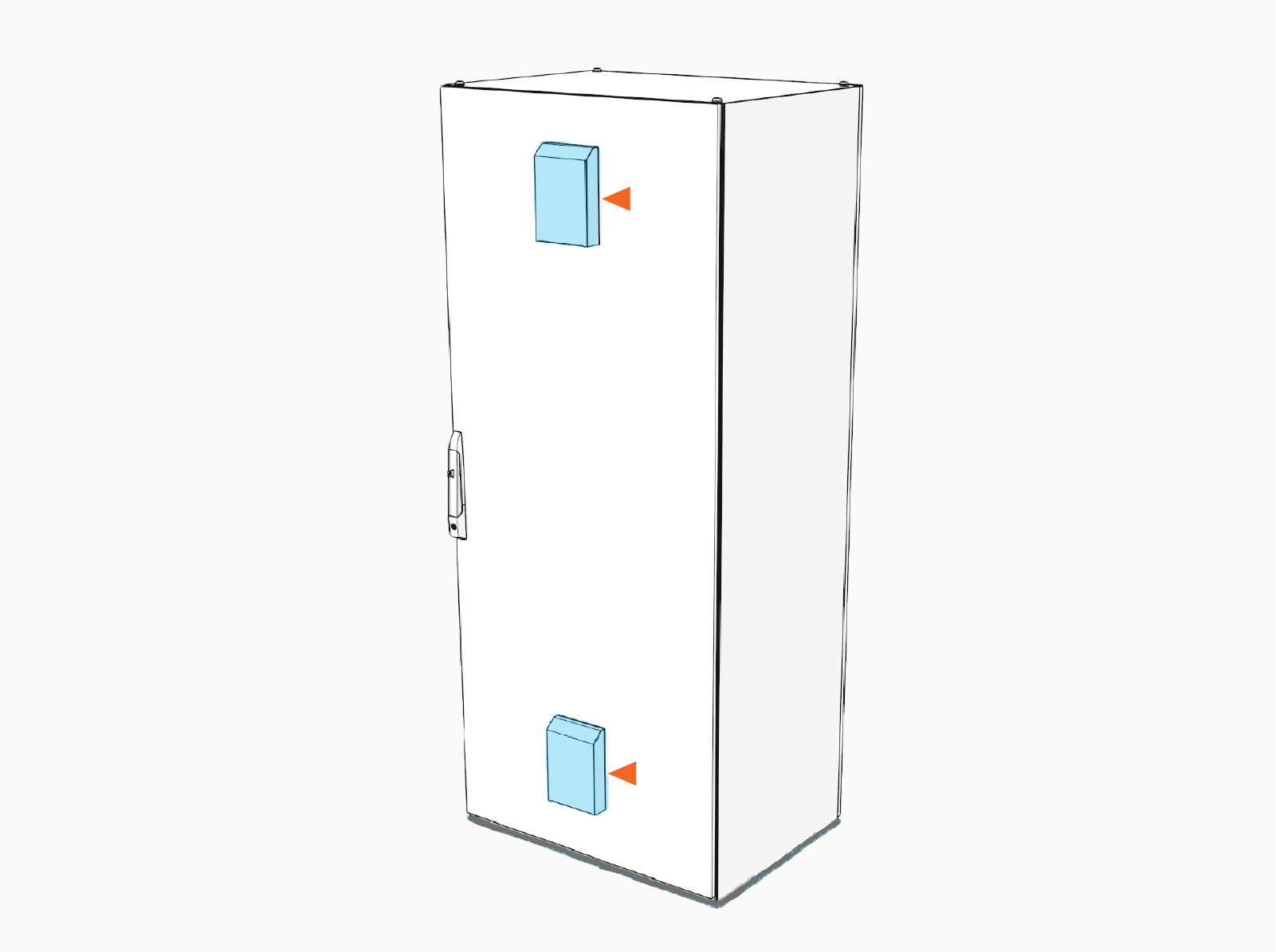

The Power Hub door has two filter vents covered by hoods, shown below.

Follow the procedure below to remove and replace a hood and filter vent.

1. Slide the hood up to release it from the Power Hub door. Remove the hood.

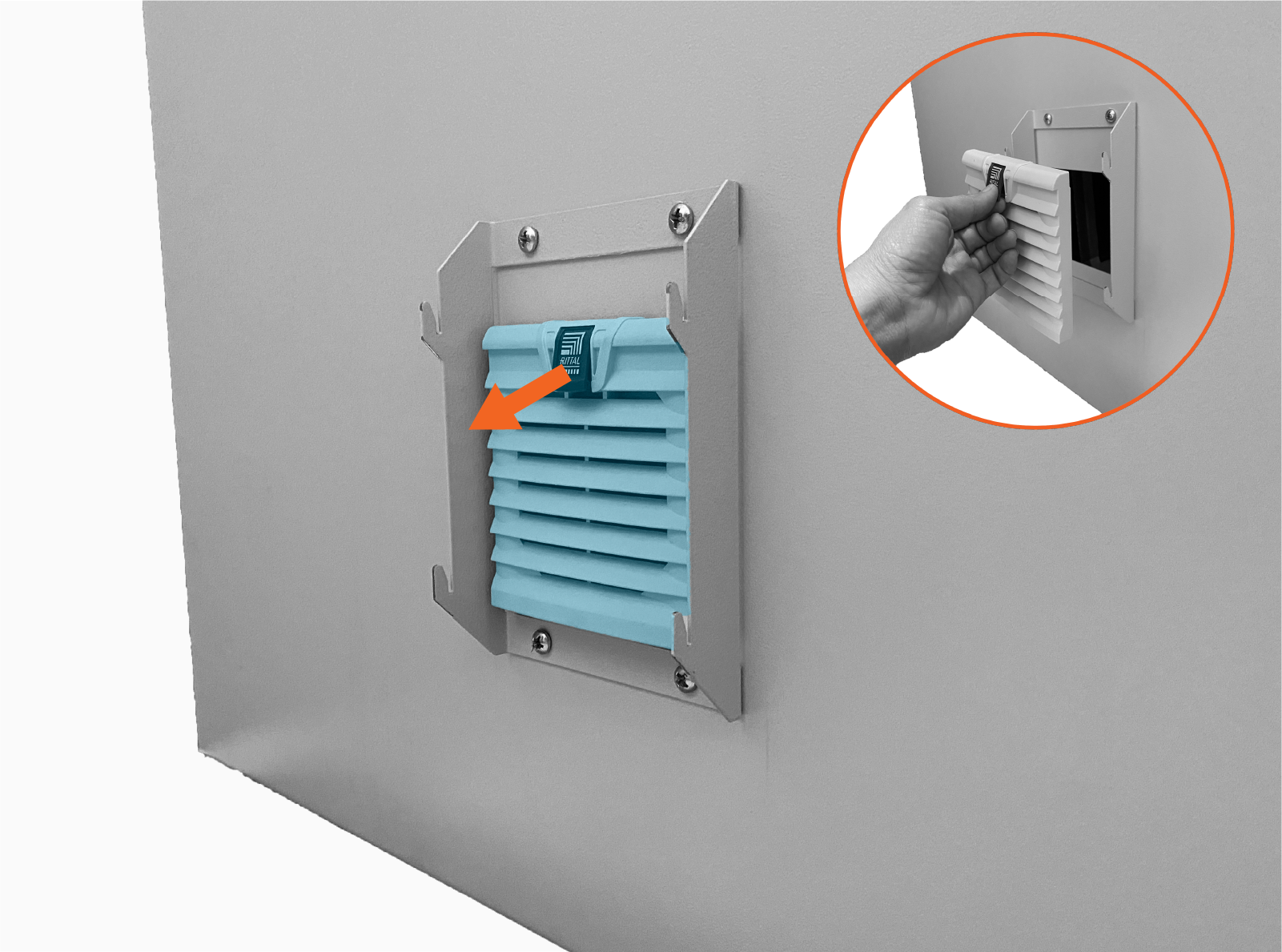

2. Grasp the tab on the filter vent and pull to remove the vent from the door.



Reverse the above steps to install the replacement filter vent and hood.
