Prepare the Housing
Perform the following steps to prepare the housing:
-
Lift the power plate cover. Loosen, but do not remove, two screws.
-
Move the power plate and set it gently on a padded surface.
-
Drill or use the knockouts in the housing to create holes for the conduit. If drilling holes, drill near the center of the lower housing plate.
-
33 mm (1.3 in) knockout
-
(b) 24 mm (0.95 in) knockout (optional Ethernet wiring)
-
Two 40 mm (1.5 in) conduits, 0.75 inch conduit (optional Ethernet)
-
One 68 mm (2.5 in) conduit, 0.75 inch conduit (optional Ethernet)
-

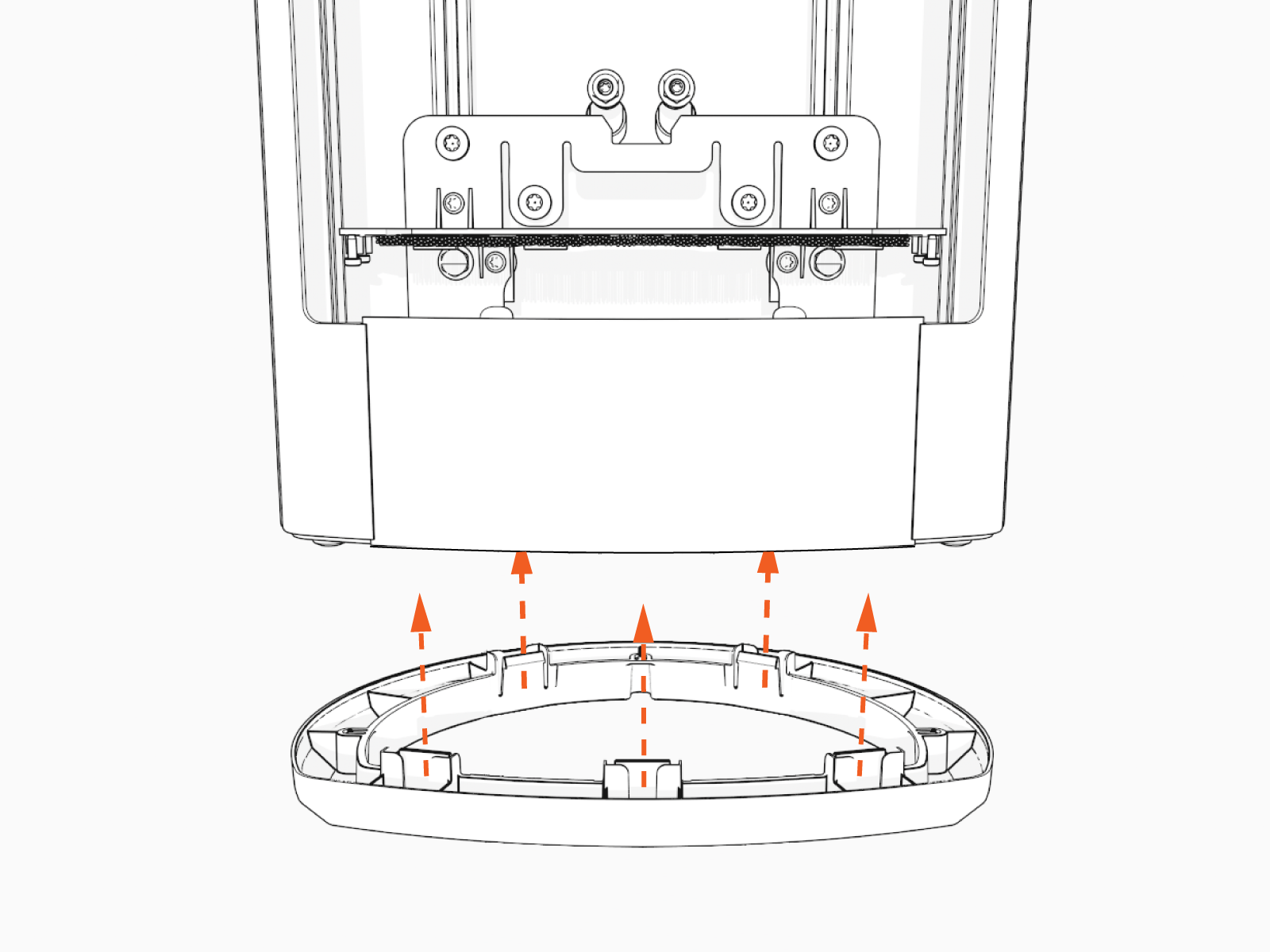

Snap lower bracket onto station.
Maximum sizes for larger conduit:
