Install the Housing

Perform the following steps to install the housing:

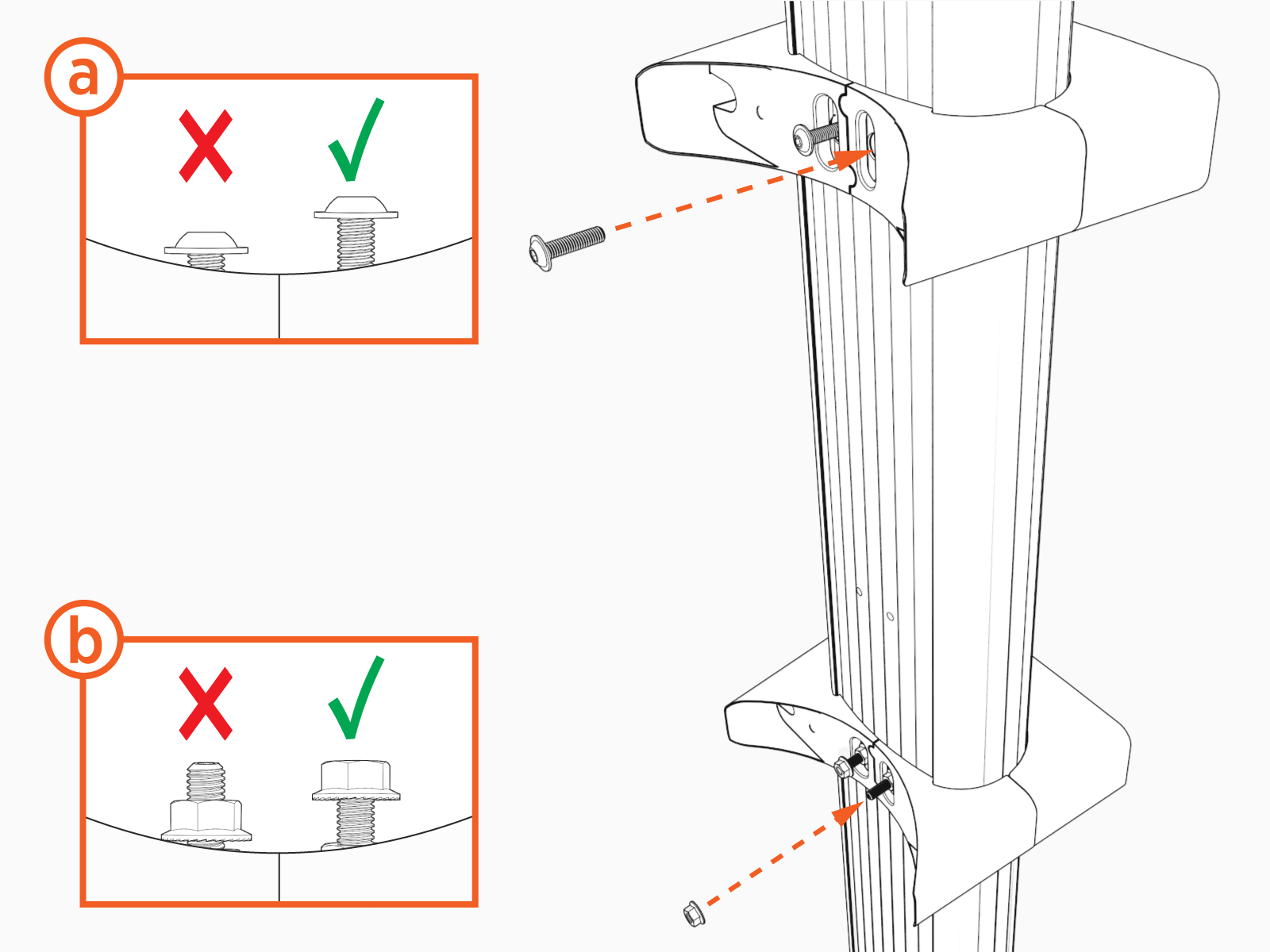

1. Insert two flange bolts (a) half way through the upper bracket.

2. Insert two threaded posts and nuts (b) on the bottom bracket.

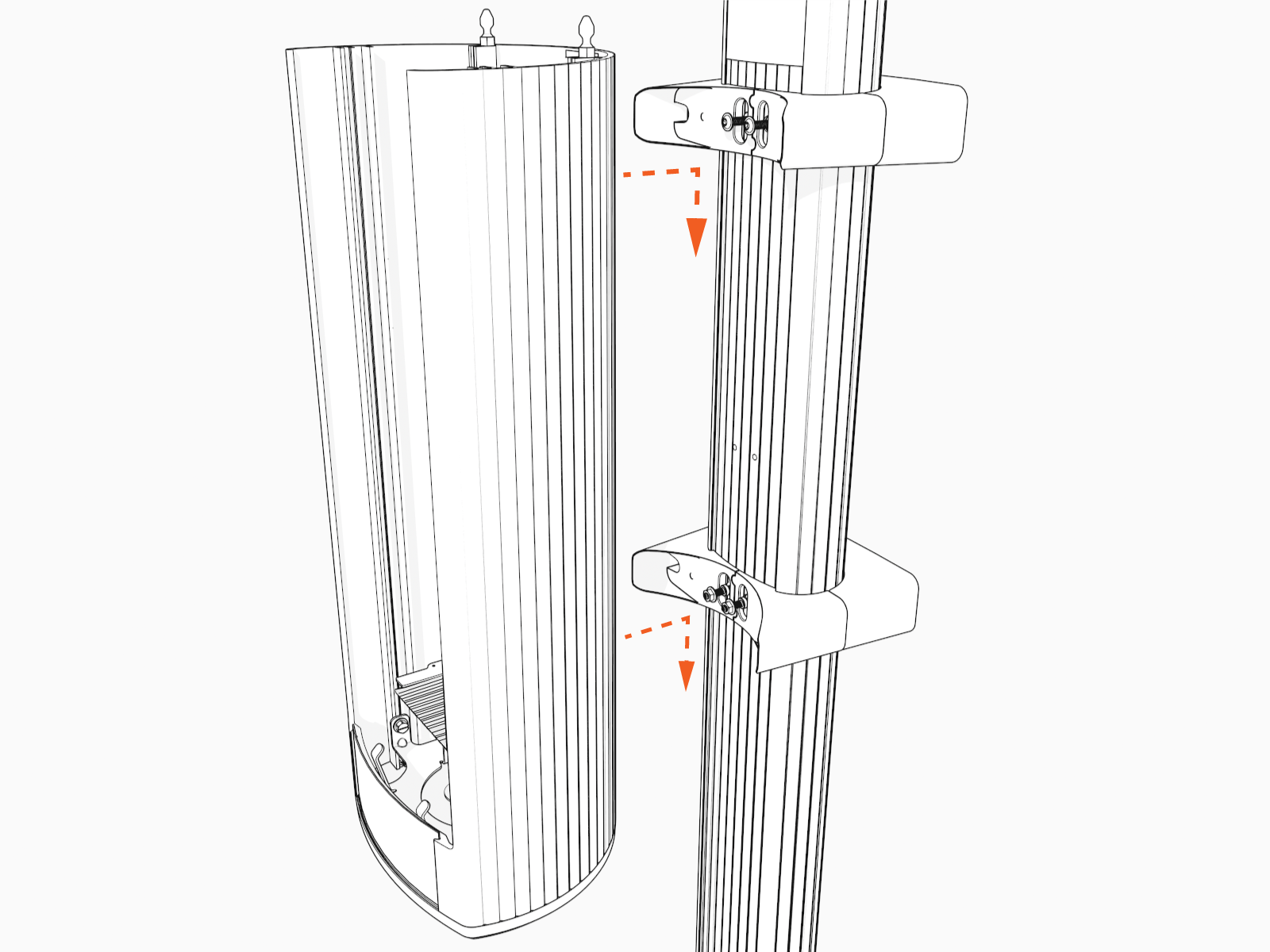

3. Align the mounting screws (top) and nuts (bottom) and hang the housing.

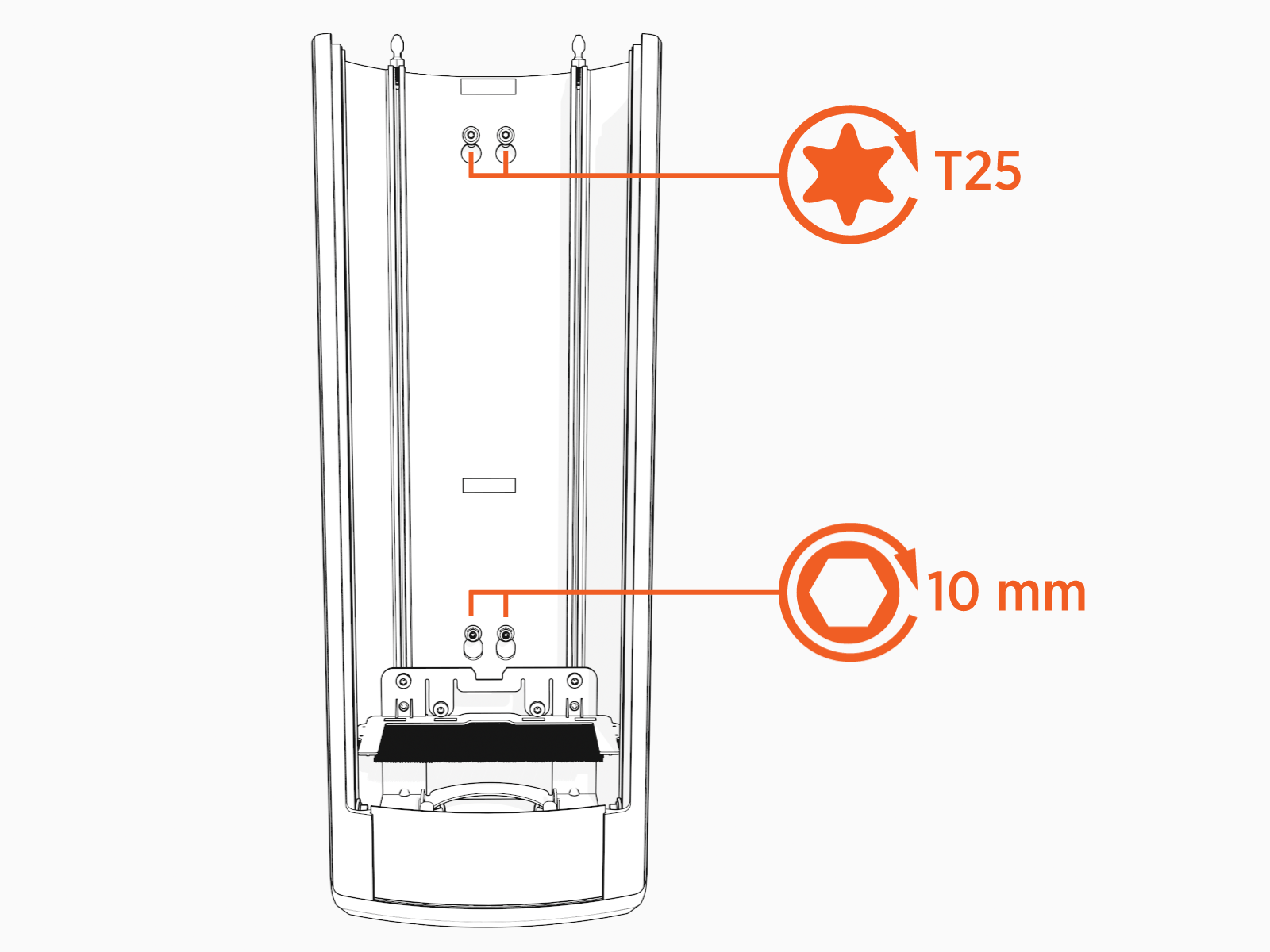

4. Use L-wrench or mini-rachet wrench to torque two flange screws (upper) and two preinstalled nuts (lower) to 5.7 Nm (50 in-lb).
