Install Rating Labels
The rating label corresponds to amperage ratings. Identify if the charging station setup is for a single port or dual port with circuit sharing, and then apply the appropriate rating label for electrical rating. Additionally, ensure the correct rating labels are applied based on the region (NA or EU) since the ratings and standards may differ.
-
Locate the rating label sheet provided with the CP6000 station.
-
Ensure the label selected from the rating label sheet matches the current breaker rating installed in the electrical setup.
IMPORTANT: The rating label must match the station system configuration. -

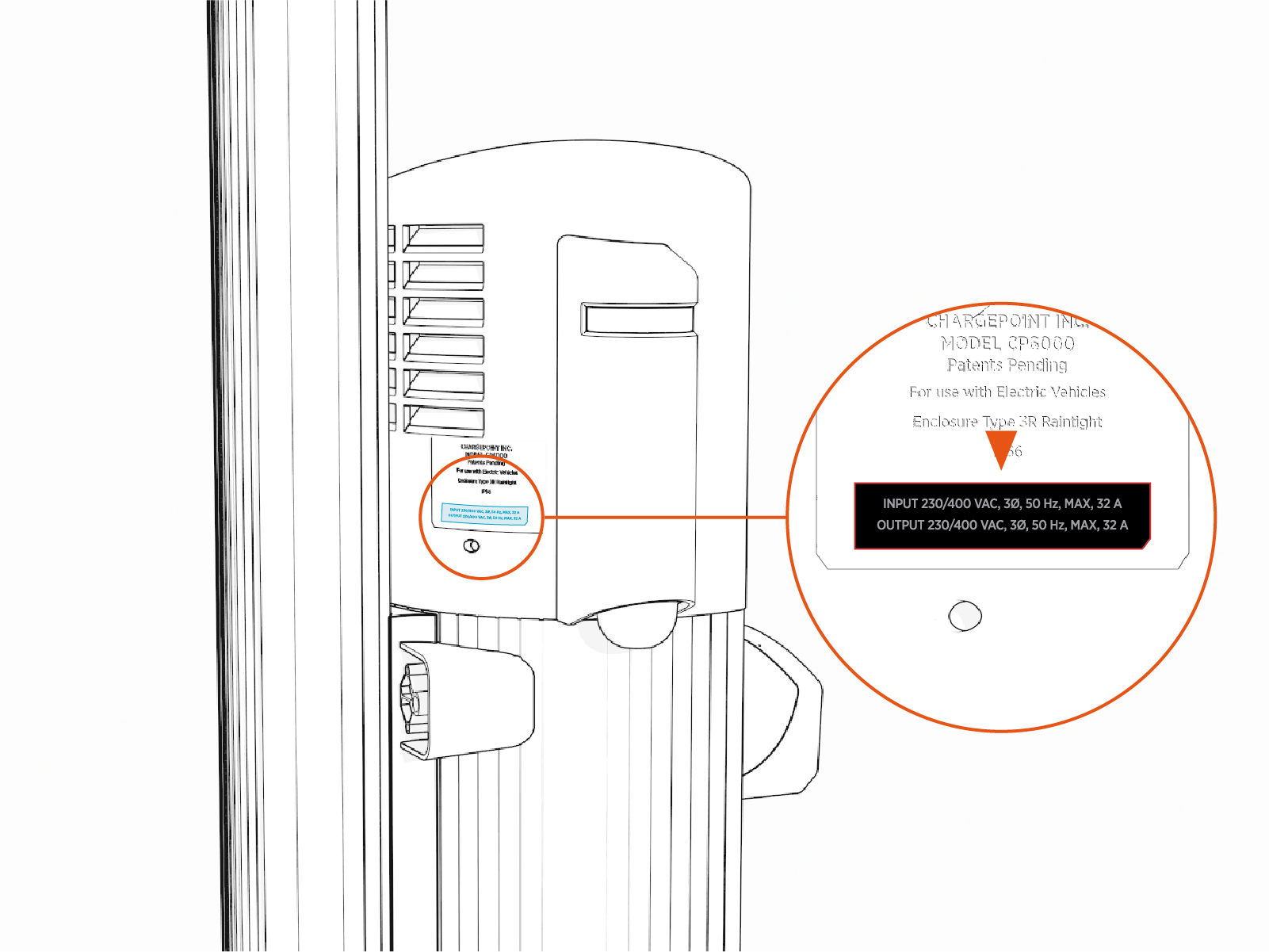

Apply the rating label on the top cap, behind the right ear. If there is a default rating label already applied by the manufacturer, place the new label over the default rating label to indicate the installer-configured rating.
Place a generic label on the electrical panel and affix an additional rating label directly on the station.
