Repair Procedure

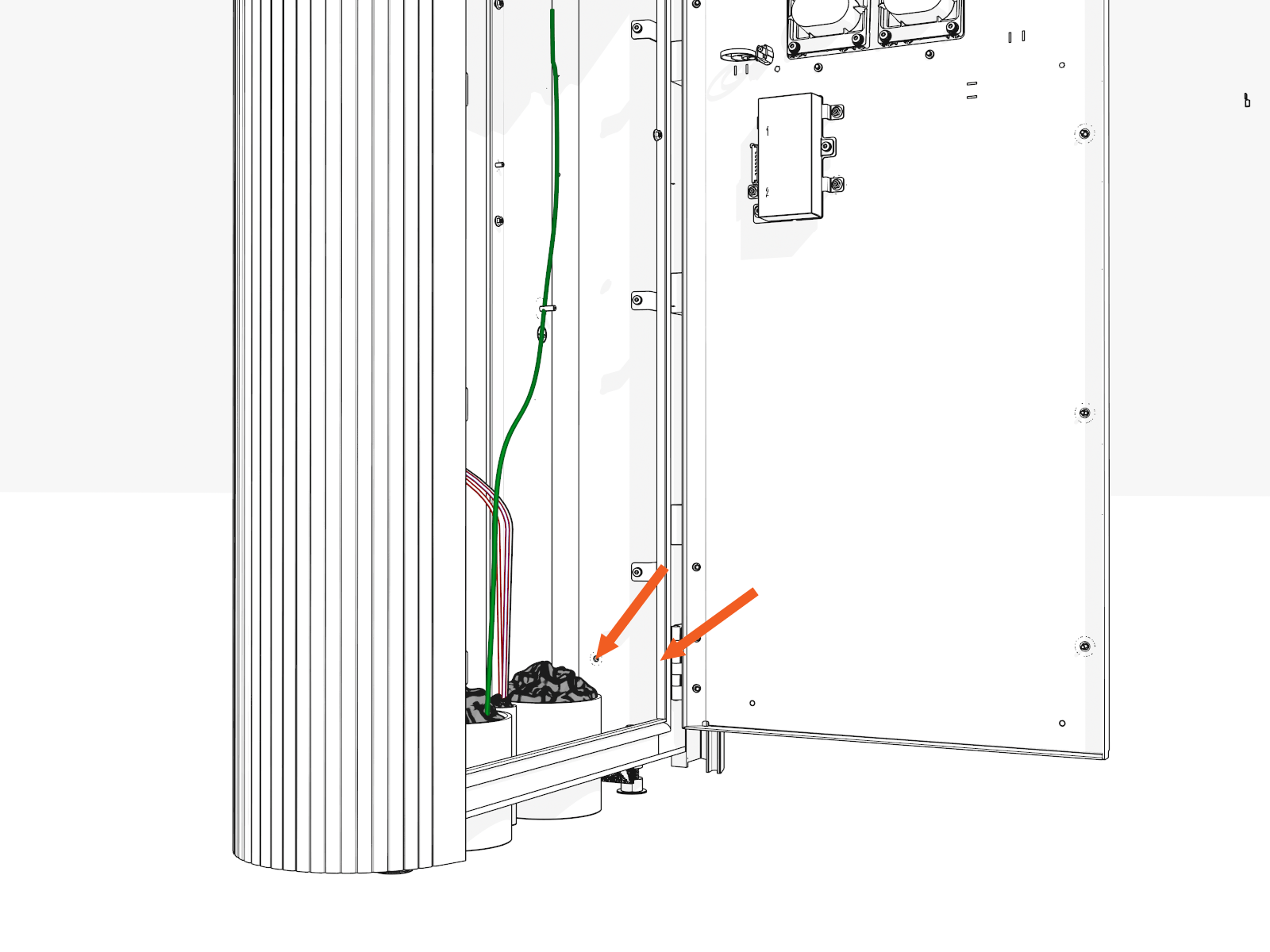

1. Locate two empty screw holes on the lower right inside wall of the Power Link 1000.

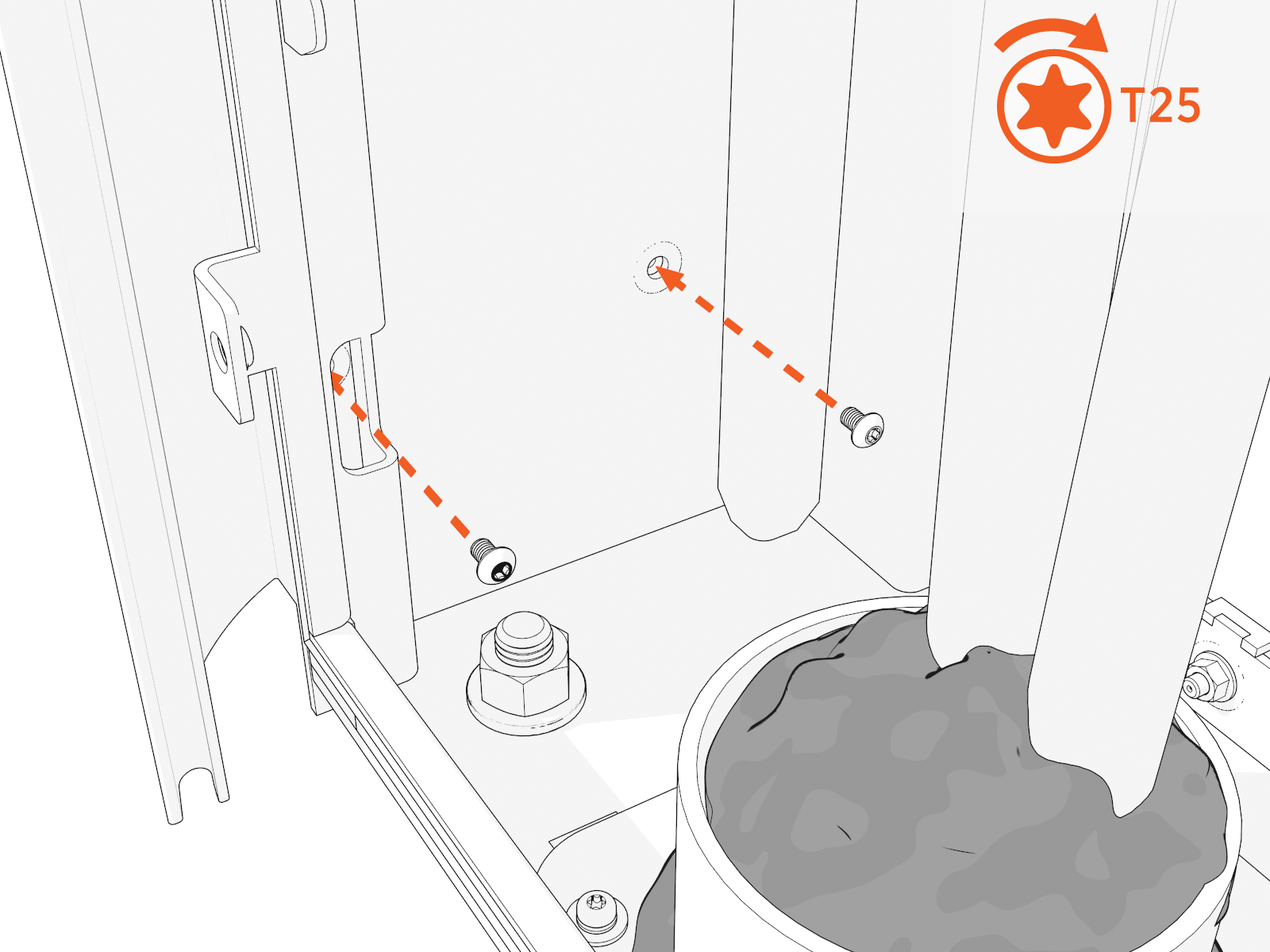

2. Install two screws to secure the right side panel. Hand-tighten.

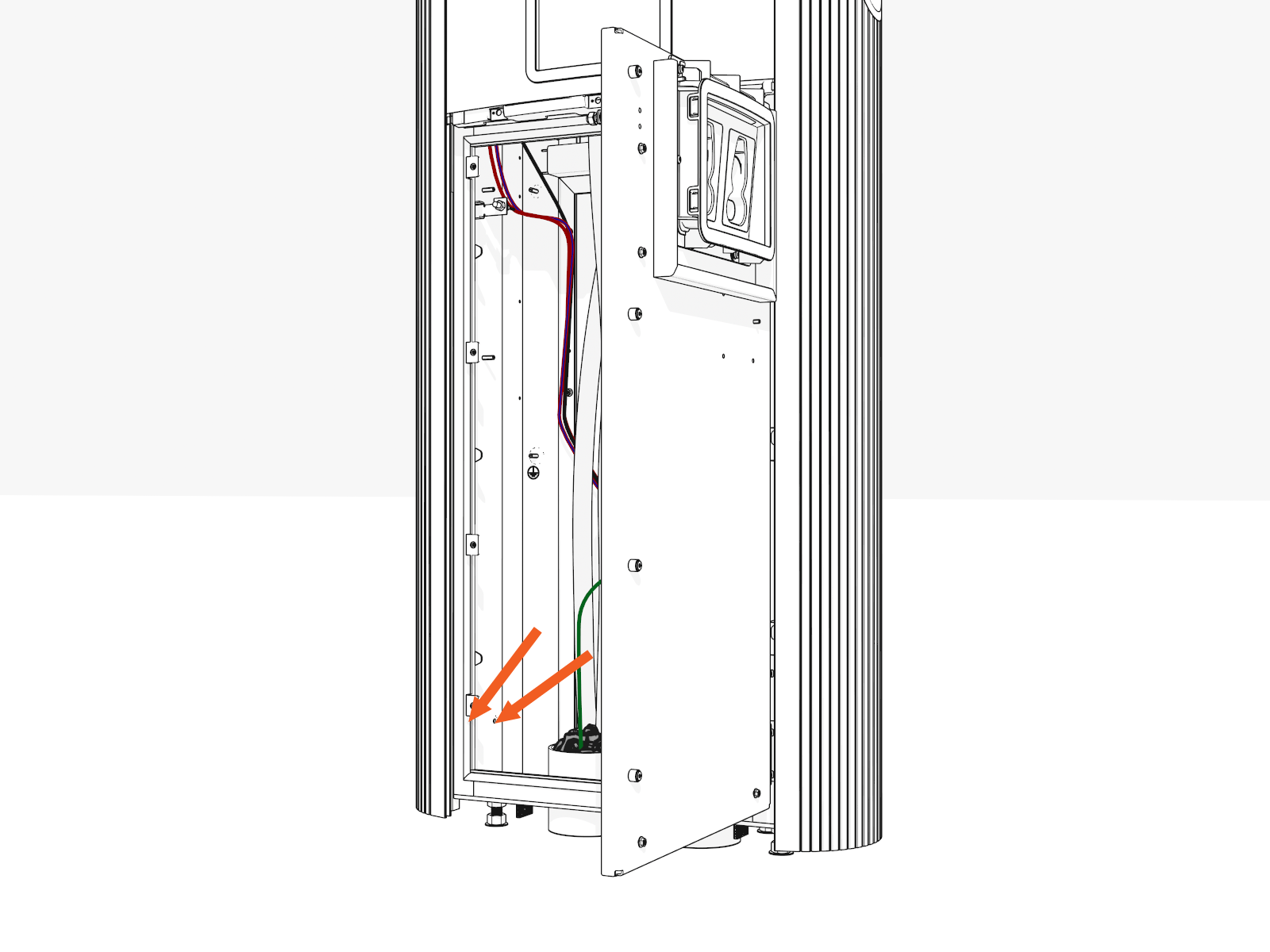

3. Locate two empty screw holes on the lower left inside wall of the Power Link 1000.



4. Install two screws to secure the left side panel. Hand-tighten.
