Appendix: Set Up Power Link 2000

Do not power on product after completing the installation. An Authorized Commissioning Partner will commission, power on, pinpoint, and configure product after installation. If you are authorized to do so, complete the following procedures:

Power On

The Pantograph Down 2000 charging system must pass commissioning before power on, or warranty limitations apply.

To power on the system, complete the following steps:

  1. Ensure all doors and panels, covers, vinyl signs, and all other parts have been correctly installed and the work is complete.

  2. Turn on power at the same points that you turned it off.

    If the site has a remote shunt trip switch, ensure that the switch is in the operating position.

  3. Wait for self-diagnostics to run. The system may take several minutes to initiate. You may see messages intermittently until the system fully boots up.

    Station Self-Diagnostic Tasks

    Self-Diagnostic

    After Installation

    After Service or Power Outage

    Electrical safety checks

    ✔

    ✔

    Lighting checks

    ✔

    ✔

    Display panel checks

    ✔

    ✔

    Component operation checks

    ✔

    ✔

    Network connectivity checks

    ✔

    ✔

    Installation Wizard
    (for the installer to complete configuration and
    pinpoint the station on maps)

    ✔

    —

Set Up Power Link 2000

After you power on the product system at the breaker panel, you must set up and activate the Power Link 2000. To do so, you need:

  • ChargePoint installer login credentials.

  • Activation label (QRClosed Quick Response code label including the MACClosed Message Authentication Code address and activation password).

  • The exact location (to the parking space) where the product is installed.

  • A smartphone with ChargePoint Installer app, Internet connectivity, and QRClosed Quick Response code scanner (usually built into the camera app).

    Scan the QRClosed Quick Response code to download the Installer app, and sign up if necessary.

    Orange and white icon that represents a tool or action.

    QR code to download this asset.QR code to download this asset.

    Orange and white icon that represents a tool or action.

    QR code to download this asset.



Follow the steps below to set up Power Link 2000:

  1. Open the ChargePoint Installer app and log in.

  2. Follow the onscreen prompts.

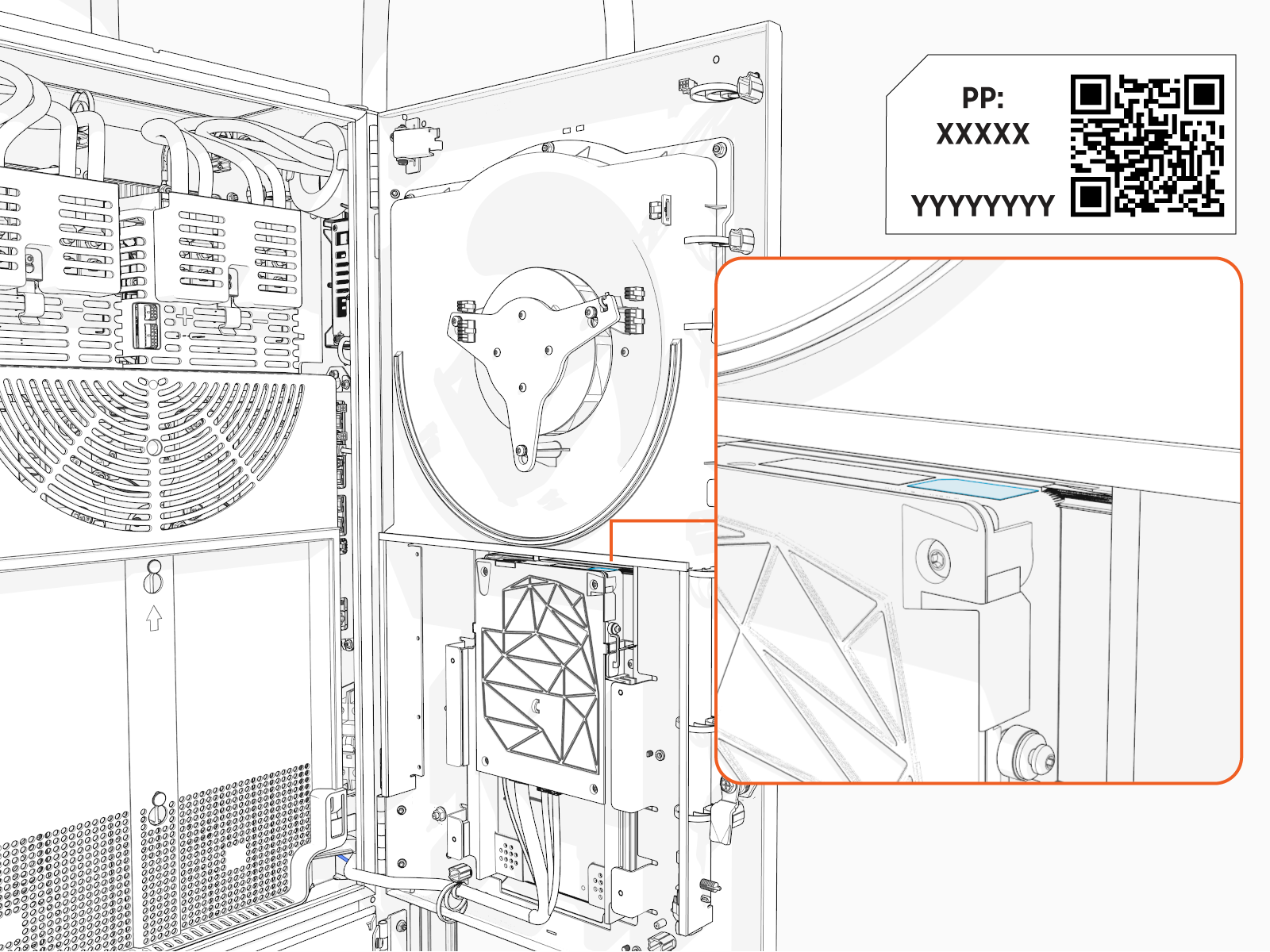

    To connect to Power Link 2000 and complete setup, you need to scan the QRClosed Quick Response code or manually enter the MACClosed Message Authentication Code address and password of Power Link 2000. You can find them on the activation label affixed on top of the display or non-display unit.

    Technical illustration depicts the procedural step.
