Install Circuit Sharing Jumpers
Circuit sharing jumpers are included with all charging stations and are required in each of the following scenarios:
-
Single circuit installations to supply power to dual port stations
-
Single port stations.
Circuit sharing jumpers cannot be installed with the power plate in the housing.
If the station is not being configured for circuit sharing, go to Install the Power Plate.
Install jumpers only when one circuit feeds one or both ports. Installing jumpers while feeding a circuit to each port will result in shorting occurring across the lines.
-

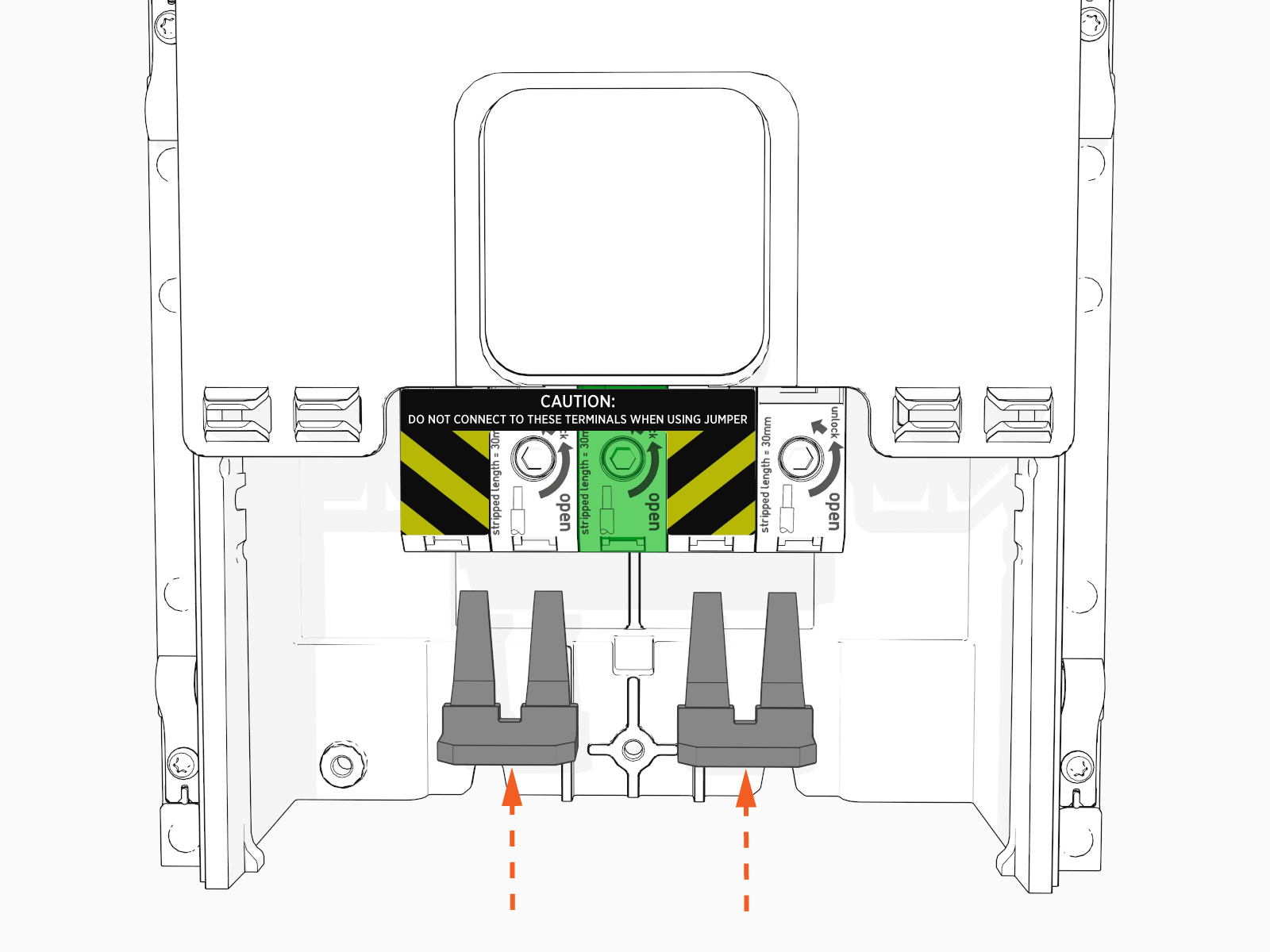

Install the jumpers. You must install both of the jumpers.
Do not terminate wires on either of the two specific terminals that are being fed by a jumper.
Circuit sharing jumpers cannot be installed with the power plate in the housing.

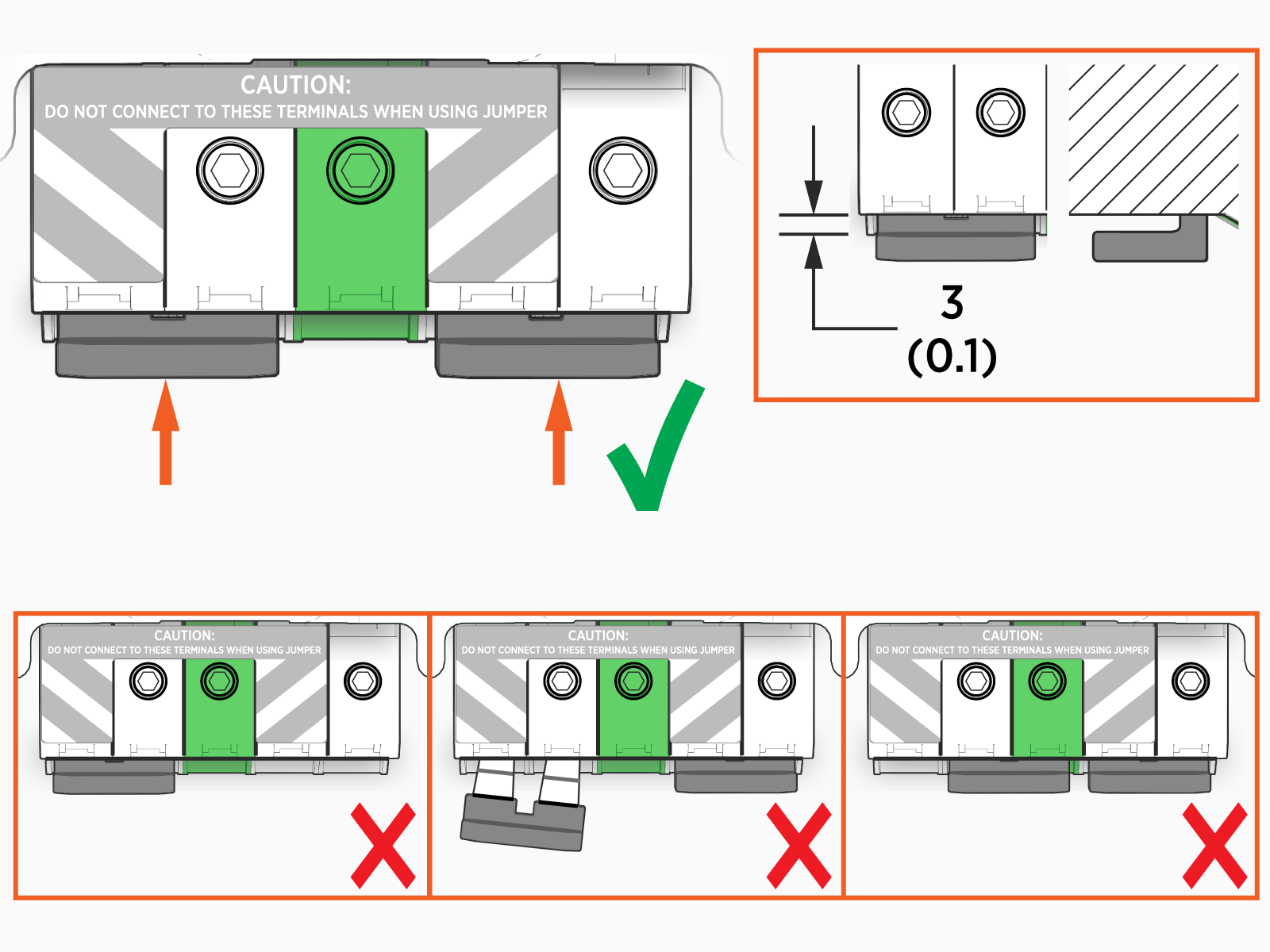

Ensure circuit sharing jumpers are fully seated.
