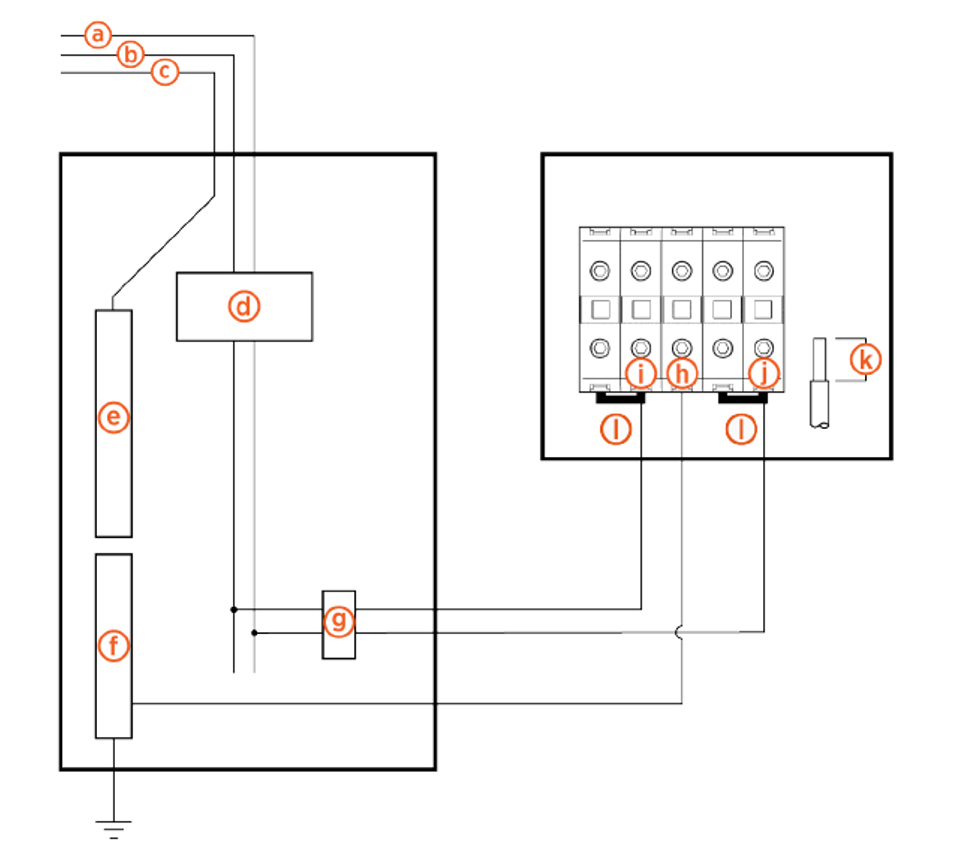

Connect the Wiring

To connect the wiring, follow the steps below:

Strip the wires 30 mm (1-3/16 in).

Cut wires straight across at 90° and not at an angle.

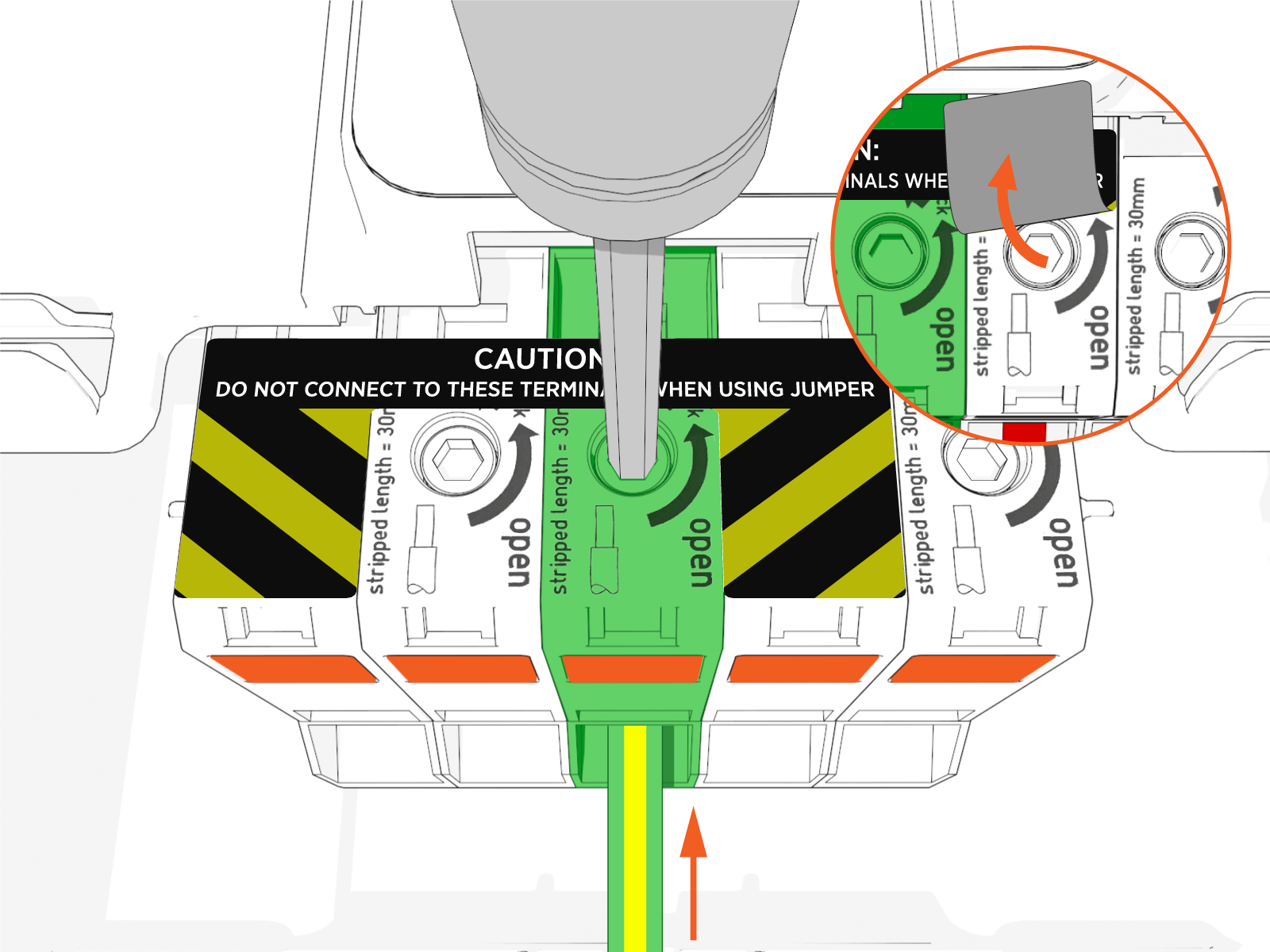

To open the center terminal block, insert an 8 mm (5/16 in) hex driver and rotate it counterclockwise. You might need to lift the label flap to access the terminal block.

Hold the driver in place to keep the terminal open while inserting the wire.

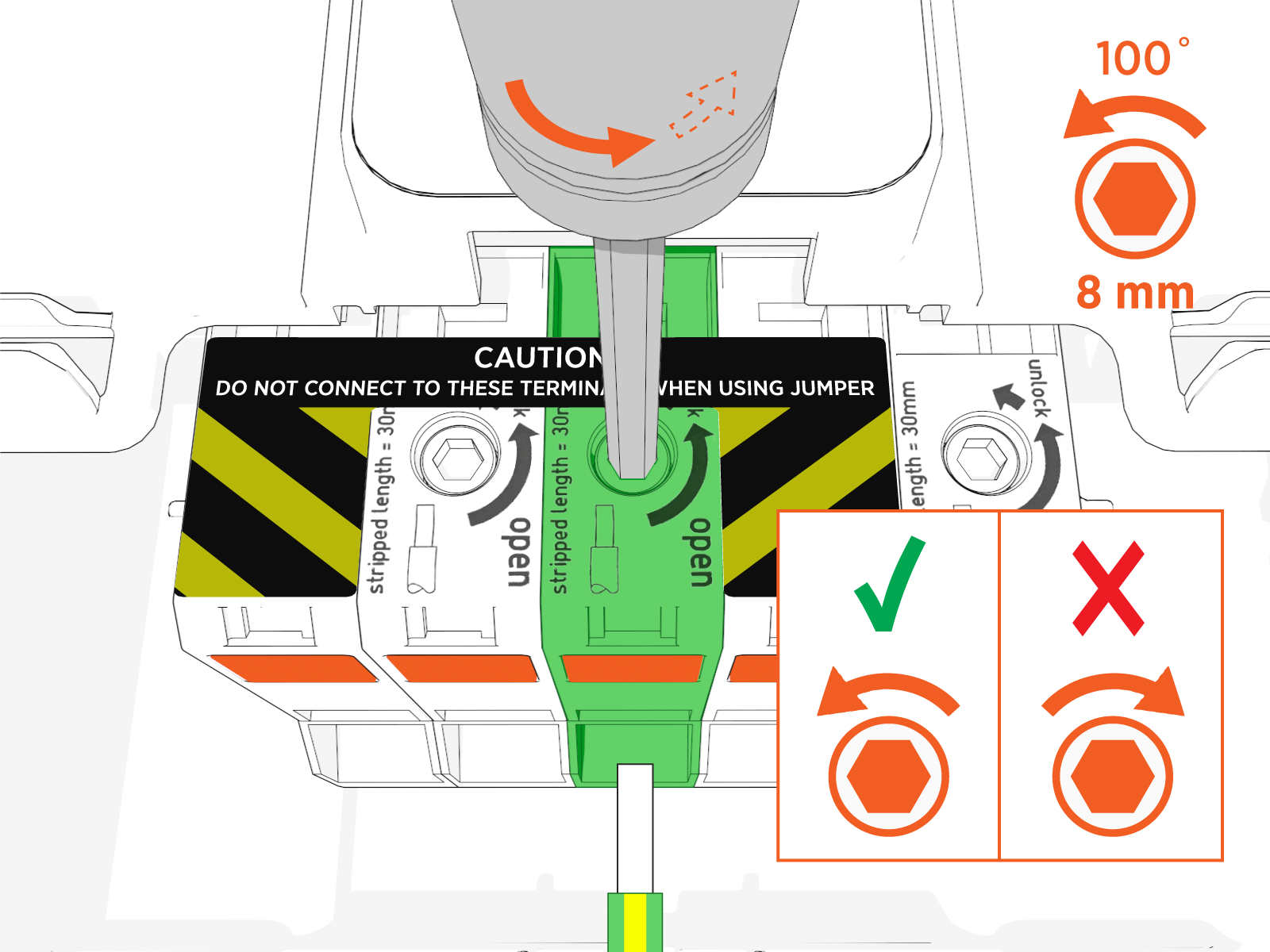

If you use the orange button to lock the terminal block in the open position, use only counterclockwise rotation to release it. Rotating the tool clockwise will damage the terminal block.

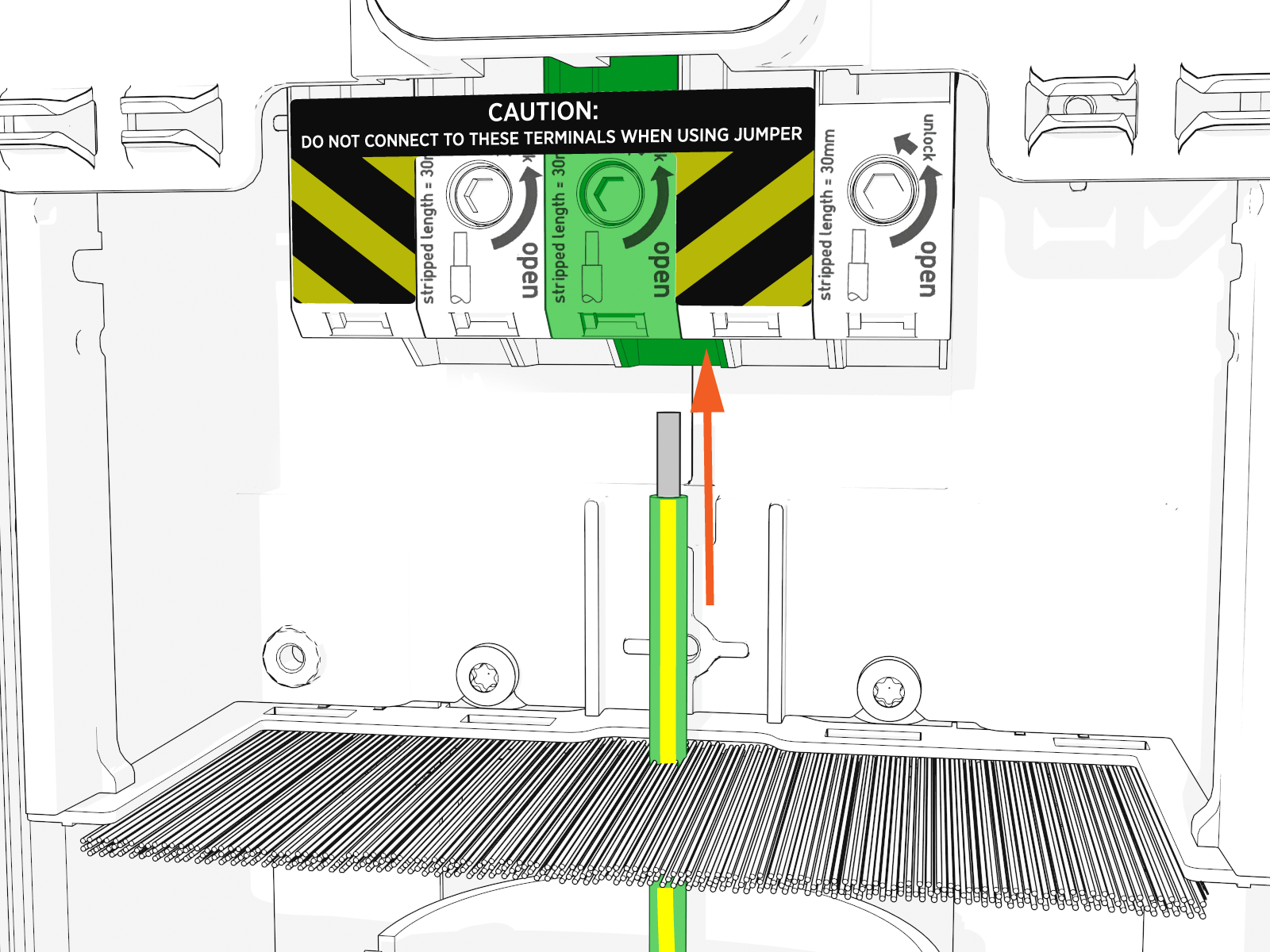

Insert the ground wire into the center terminal.
While holding the wire in place, release the hex driver to secure the wire in the terminal block.

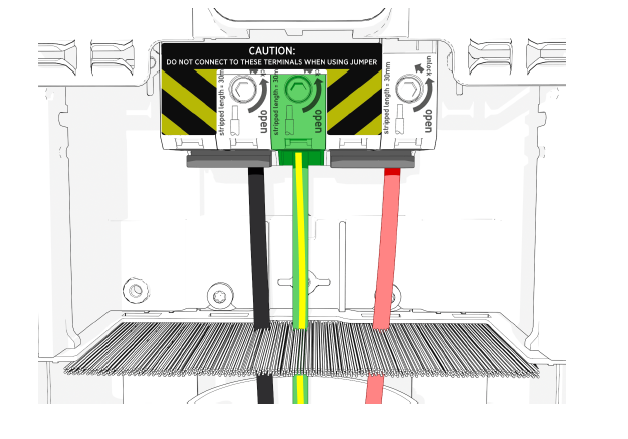

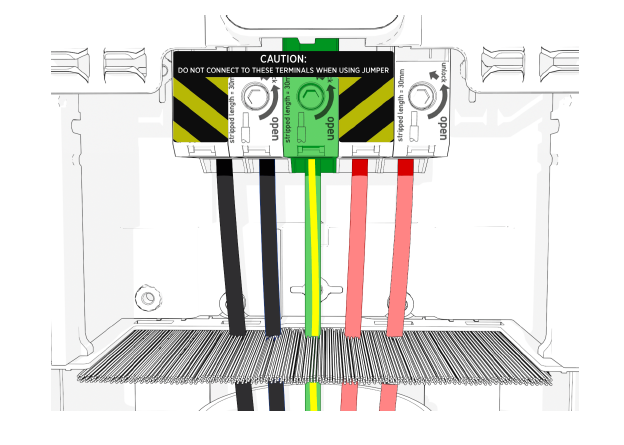

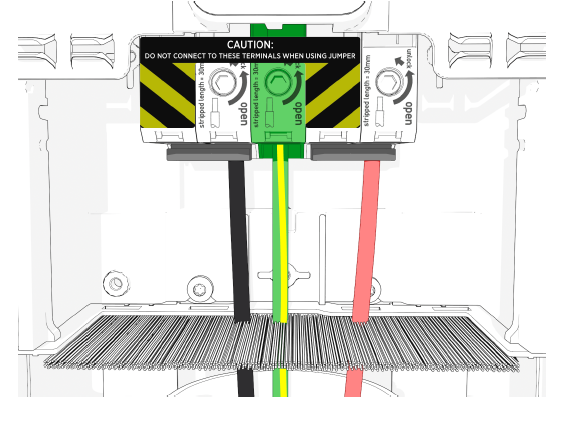

Repeat previous steps for each wire.

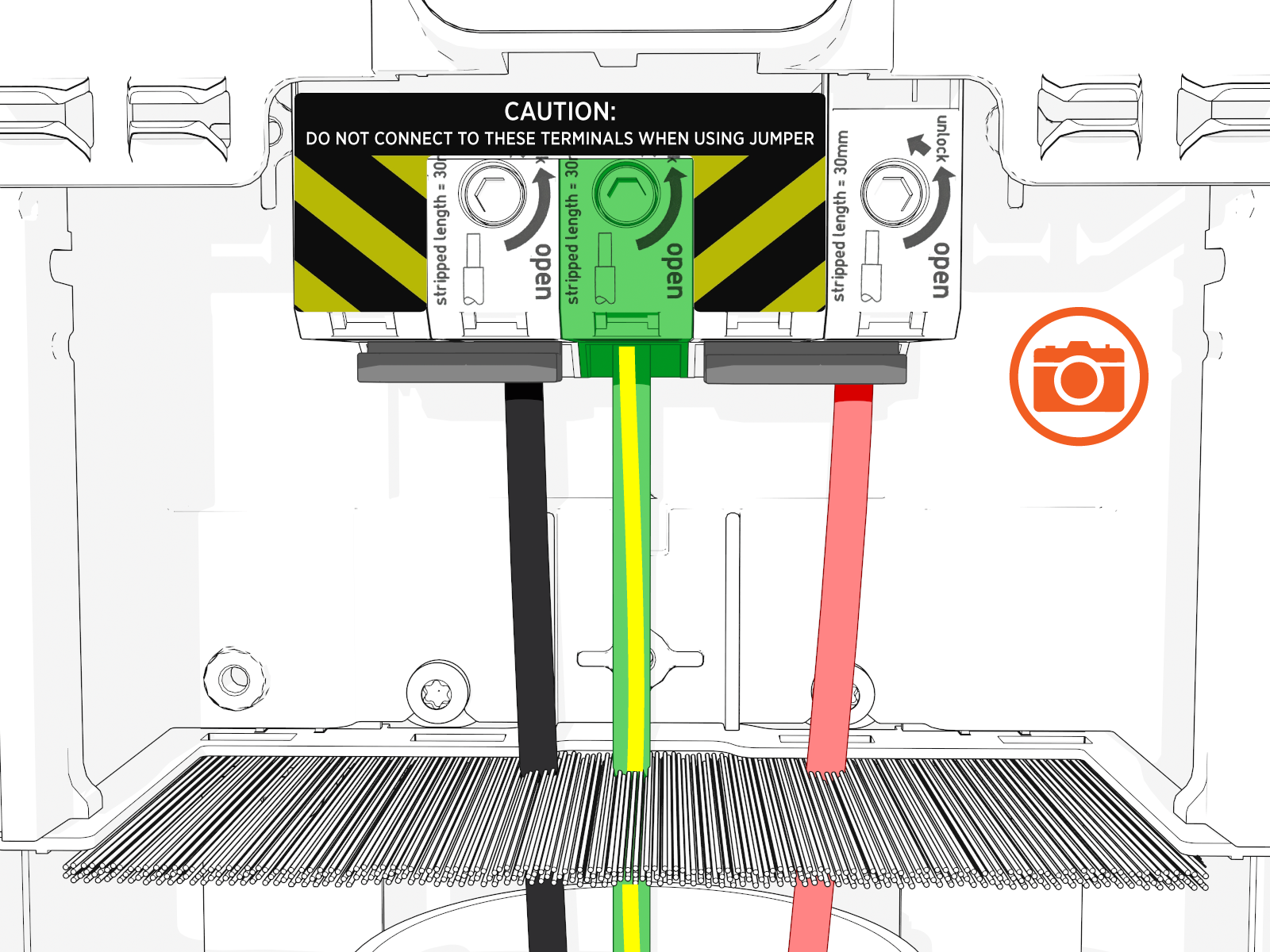

Take a picture of the completed terminal block wiring with labels to submit during pinpointing.

Ensure that you take a photo of the wires in the terminal block before continuing the installation process.

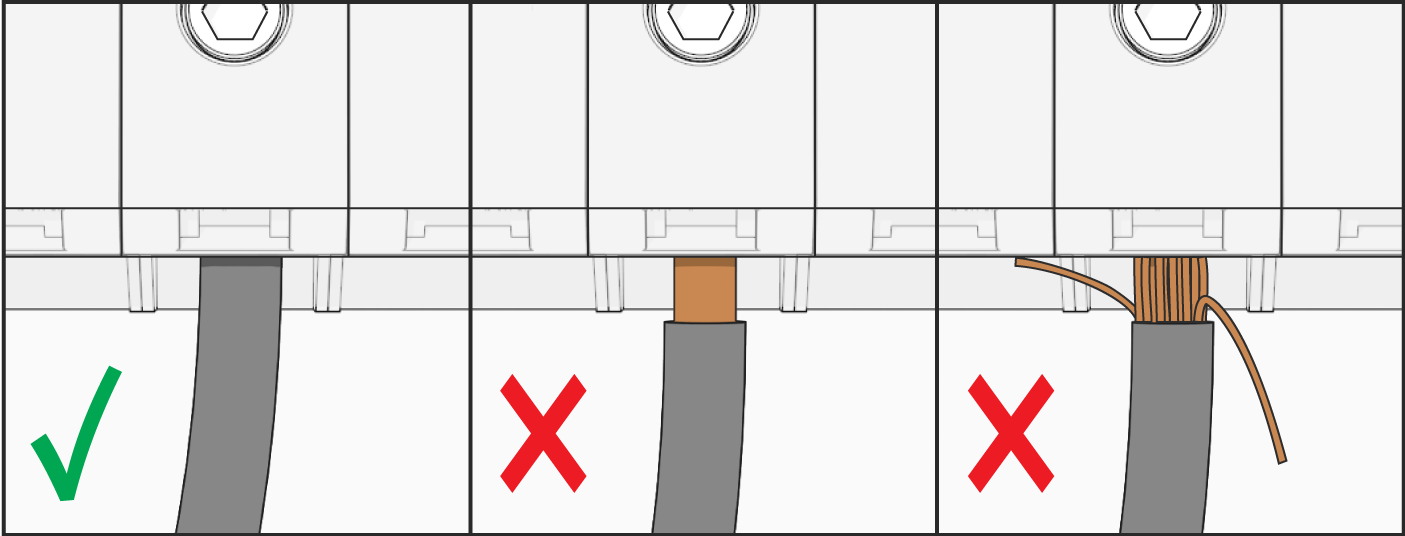

You should not see any copper wire outside the terminal block.

>
