Install Power Block

Follow these instructions to anchor, install, and wire each Power Block.

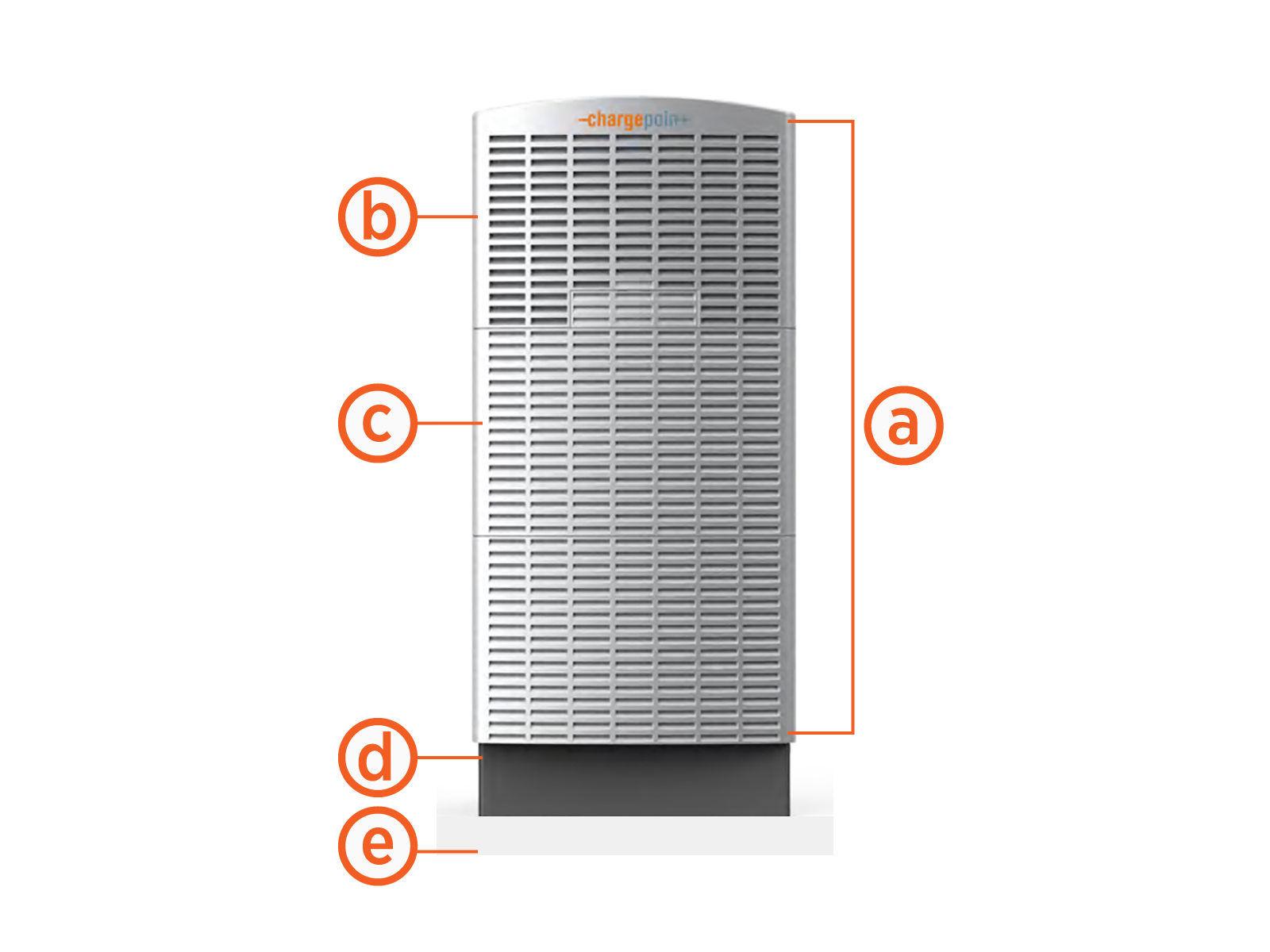

Follow instructions to anchor install, and wire each component.

(a) Enclosure

(b) Upper cabinet (wet box)

Preassembled

(c) Lower cabinet (dry box)

Preassembled

Built-in slots for forklift tines

(d) Pedestal

Built-in slots for forklift tines

(e) Pad

If the site has height constraints for installation, contact ChargePoint to get the instructions and clearances that you will need for the modified process. You will likely need a crane with lifting shackles and a spreader bar (constraints may differ among sites).

Note to ChargePoint Personnel:

  • If the site has height constraints for installation, the installer must first check clearance from the ceiling above the pad and from any objects to ensure nothing will obstruct the movement of equipment and components during this modified installation.

  • Installer may remove the upper cabinet (refer to the Service Guide).

  • With the upper cabinet removed, the four M10 threaded mounting points on the lower cabinet (at upper corners) can accept crane lifting shackles but, only with a spreader bar.

  • Installer may use a crane with lifting shackles and a spreader bar to install the pedestal (onto the pad), then lower cabinet, and upper cabinet.

  • Installer must reinstall upper cabinet onto lower cabinet (refer to the Service Guide).
