Replace the Power Module Carrier Fan

To replace a power module carrier fan, complete the following steps:

Required Tools and Materials

Tools and Materials

Torx screwdriver (T20)



Power off the Station

Power off at the breaker panel and lock out/tag out before continuing work.

Risk of shock

  • Before any procedure, disconnect the power. If station is paired, disconnect the power to both paired charging stations.

  • Follow local code and site lockout/tagout procedure to de-energize the station.

  • Wait for energy to dissipate (approximately five minutes).

  • Keep power off until all covers and panels are reinstalled and the work is complete.

Failure to follow these instructions can result in serious injury, loss of life, or property damage.

Before You Begin

  1. Remove the Area Light Bar

  2. Remove the Top Front Panel

  3. Remove the Front Lower Panels

  4. Remove the Upper and Lower Rear Panels

Release the Power Module

  1. Using both hands, press the release bar on the Power Module mechanism and lift it. While keeping the bar pressed, gently raise the mechanism to disengage it from the guide posts and connectors.

  2. Verify that the mechanism is completely disconnected from all Power Module connectors.

  3. On the bottom-right of the Express 280, press down and hold the yellow release latch, then pull the tray out of the station.

Remove the Module Carrier Fan

To remove the module carrier fan, go to the rear side of Express 280 and perform the following steps:

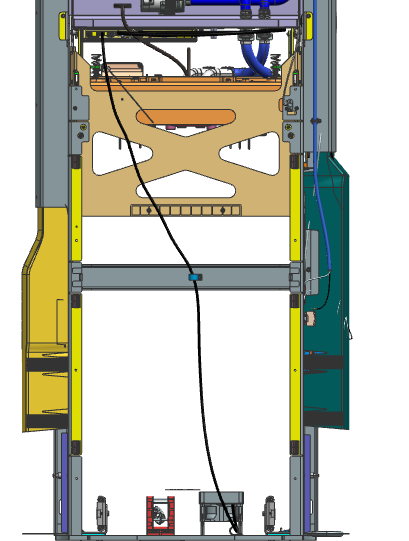

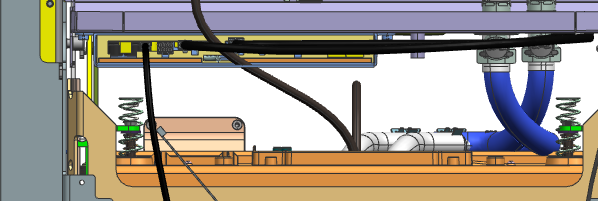

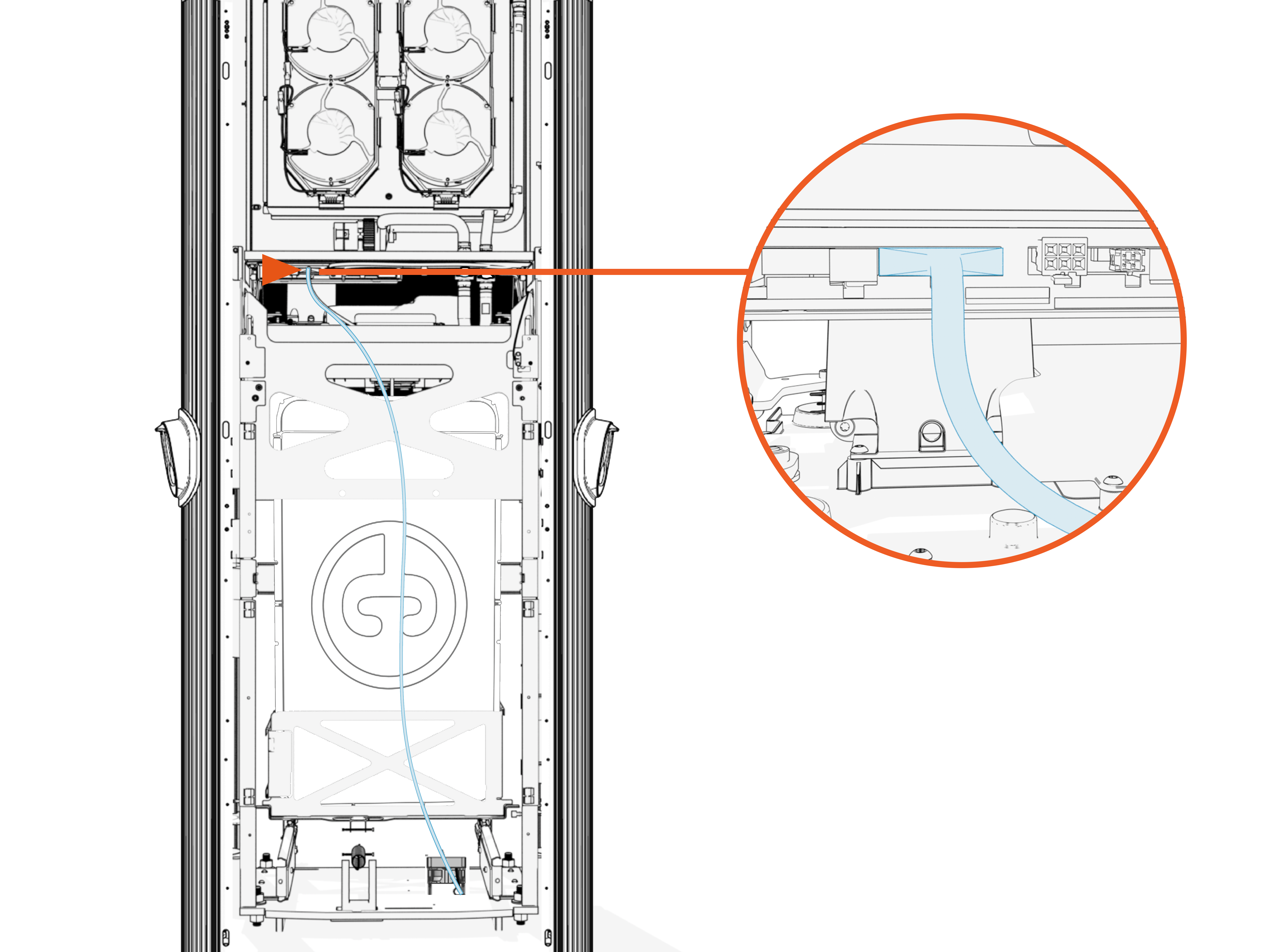

  1. Unplug the power cord from the cooling controller and from the clips.

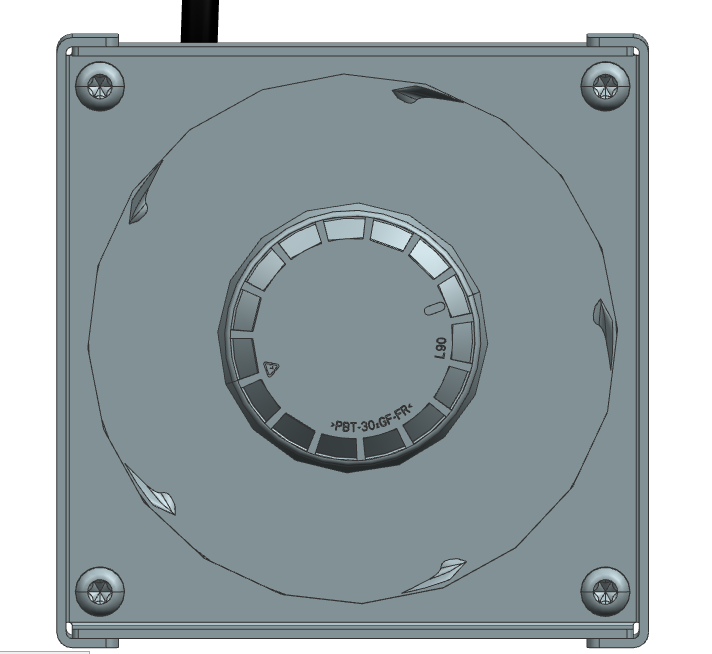

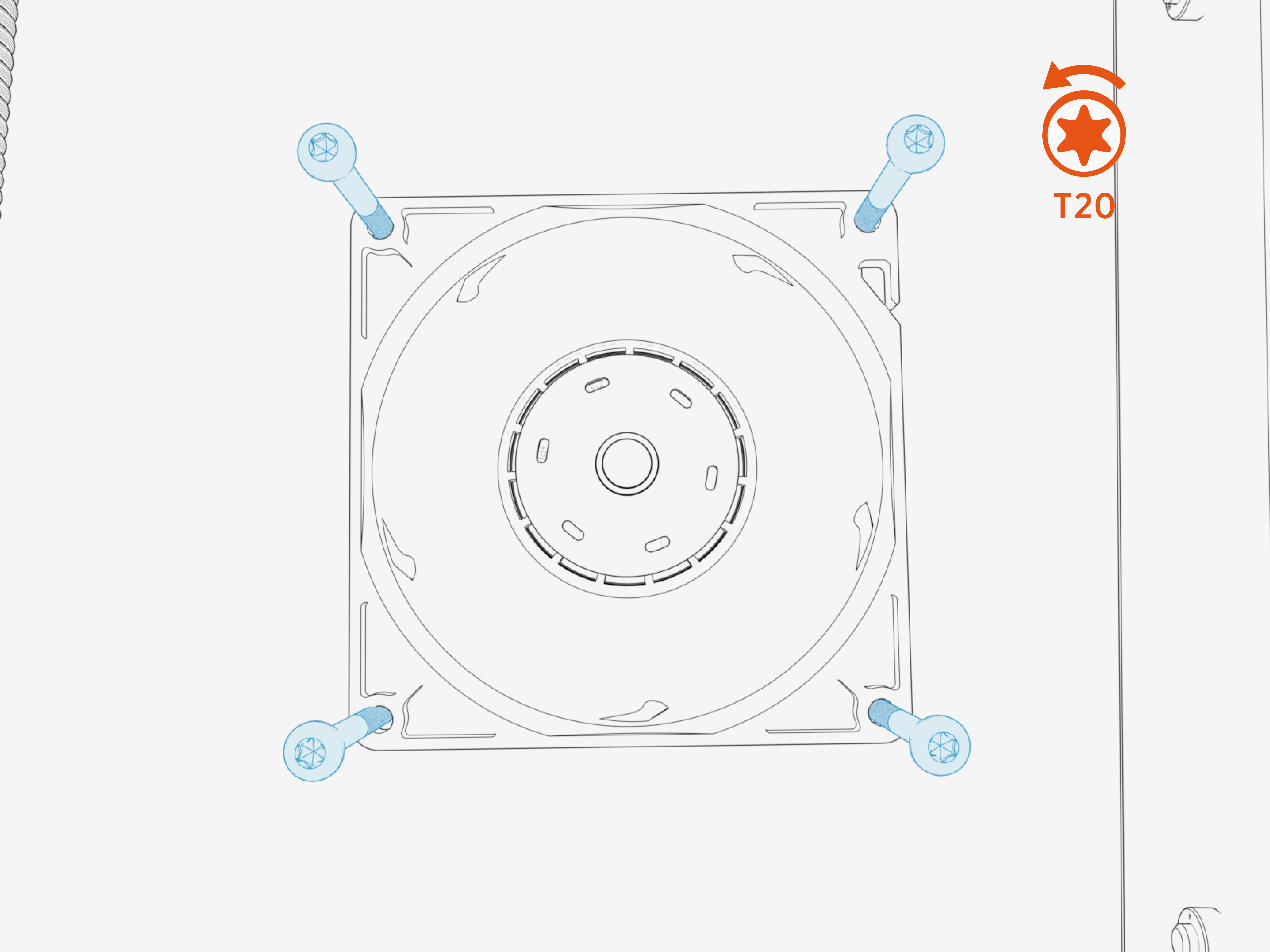

  2. Using a T20 Torx screwdriver, unscrew and remove the four screws from the fan duct.

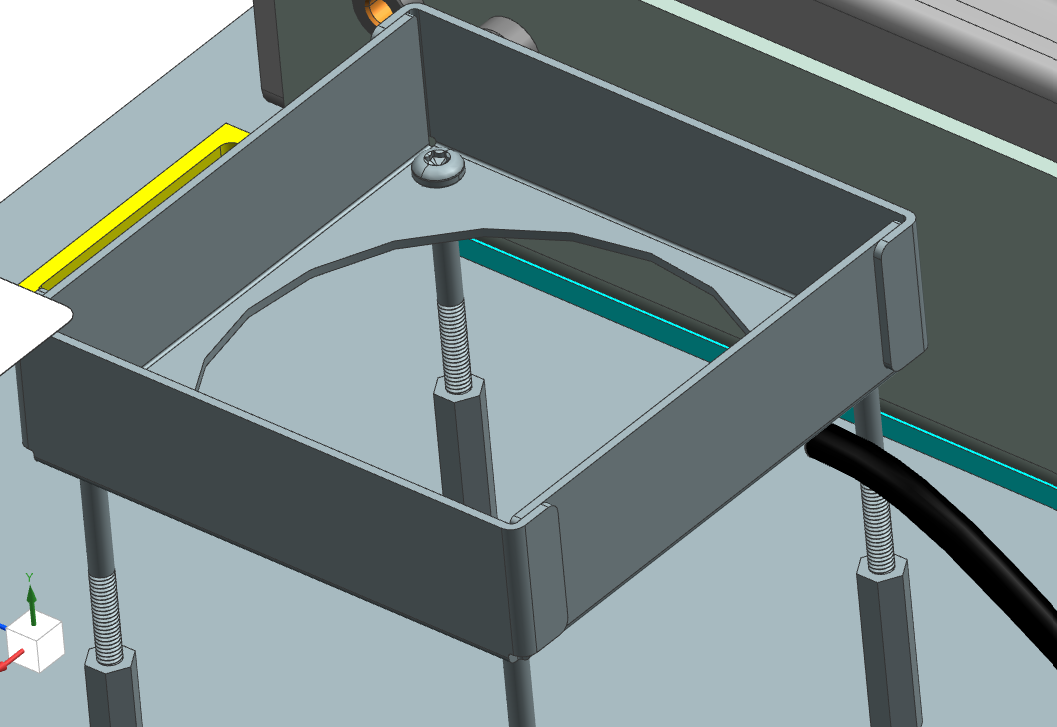

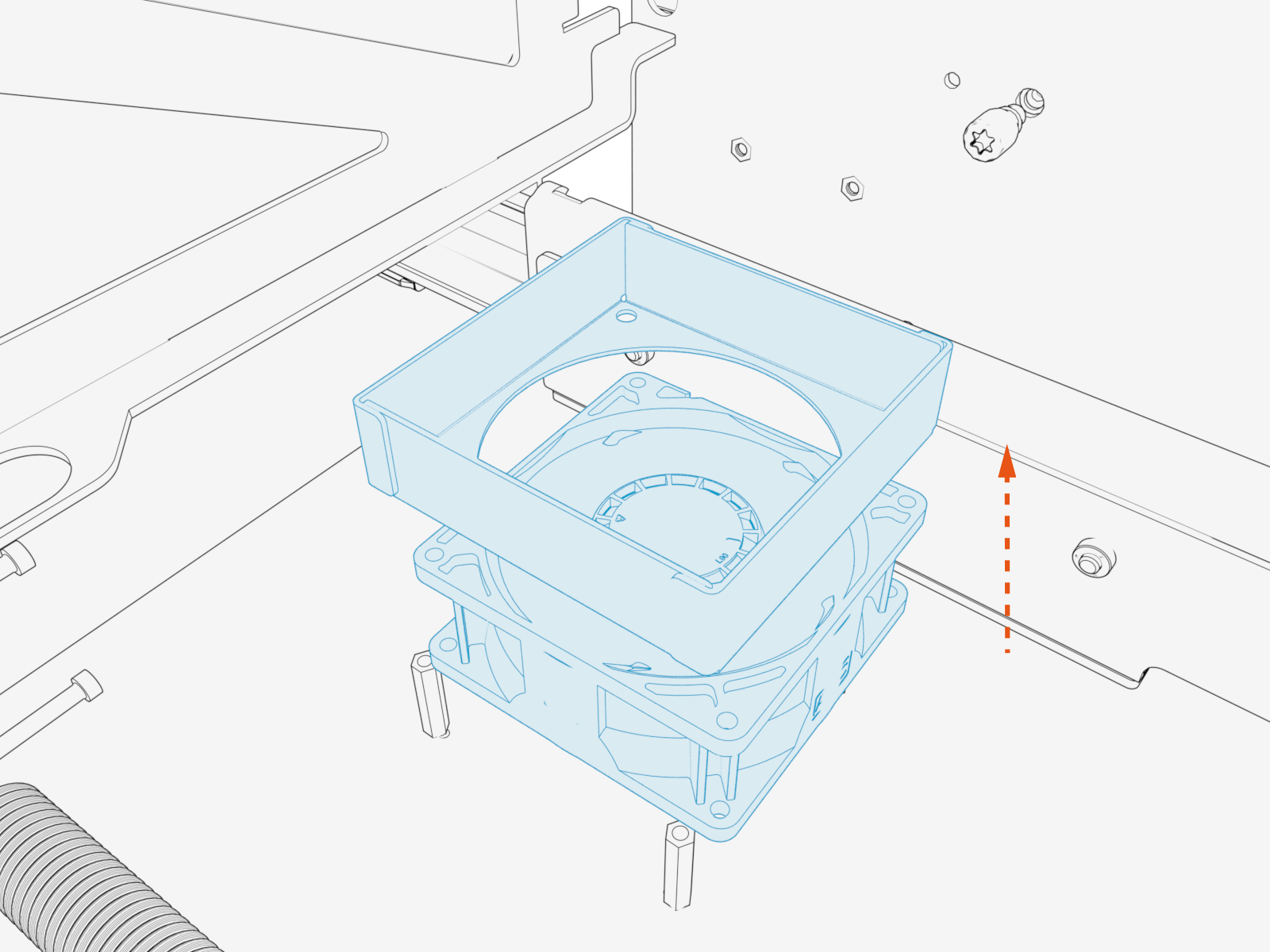

  3. Remove the fan duct and the module carrier fan from the fan assembly.

Install the Module Carrier Fan

REVERSE THE ABOVE STEPS TO REPLACE THE MODULE CARRIER FAN.

Power On the Station

Once all parts are installed, power on the Express 280. The Express 280 runs a self test to verify that it can operate properly.

RISK OF SHOCK. If a fault exists, turn the power off at the service panel to BOTH product paired charging stations during work and keep it off until all panels are reinstalled. Internal components can present a shock hazard. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS INJURY OR LOSS OF LIFE.
