Door Operations

Follow steps below to open the intake, exhaust, and display doors.

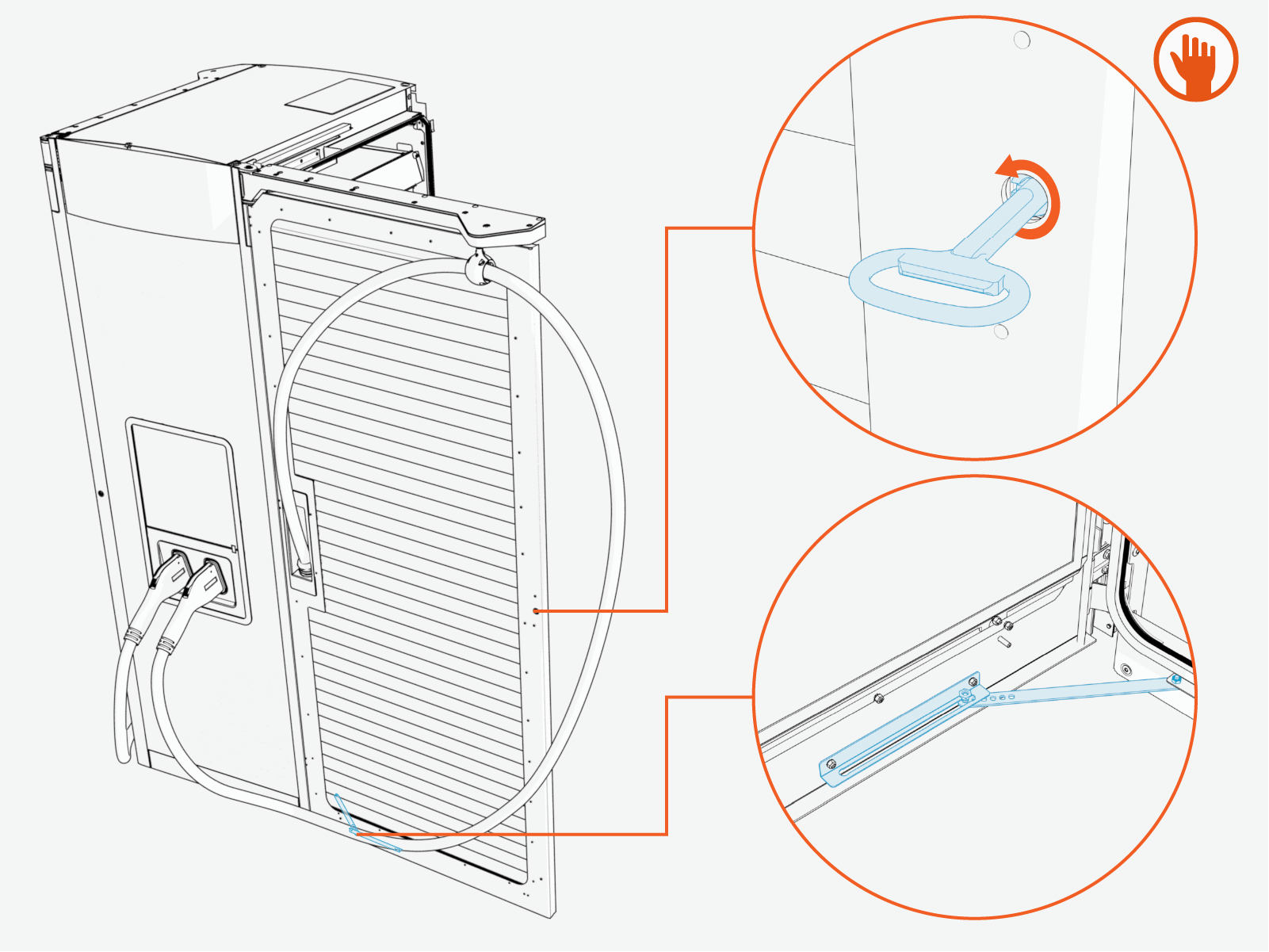

Open the Intake (Right) Door

Use the door key to unlock the intake (right) door, then swing the door open until the door stopper secures it in the open position.

Raise the door stopper to disengage it. Then, reverse the above step to close the Intake door after maintenance.

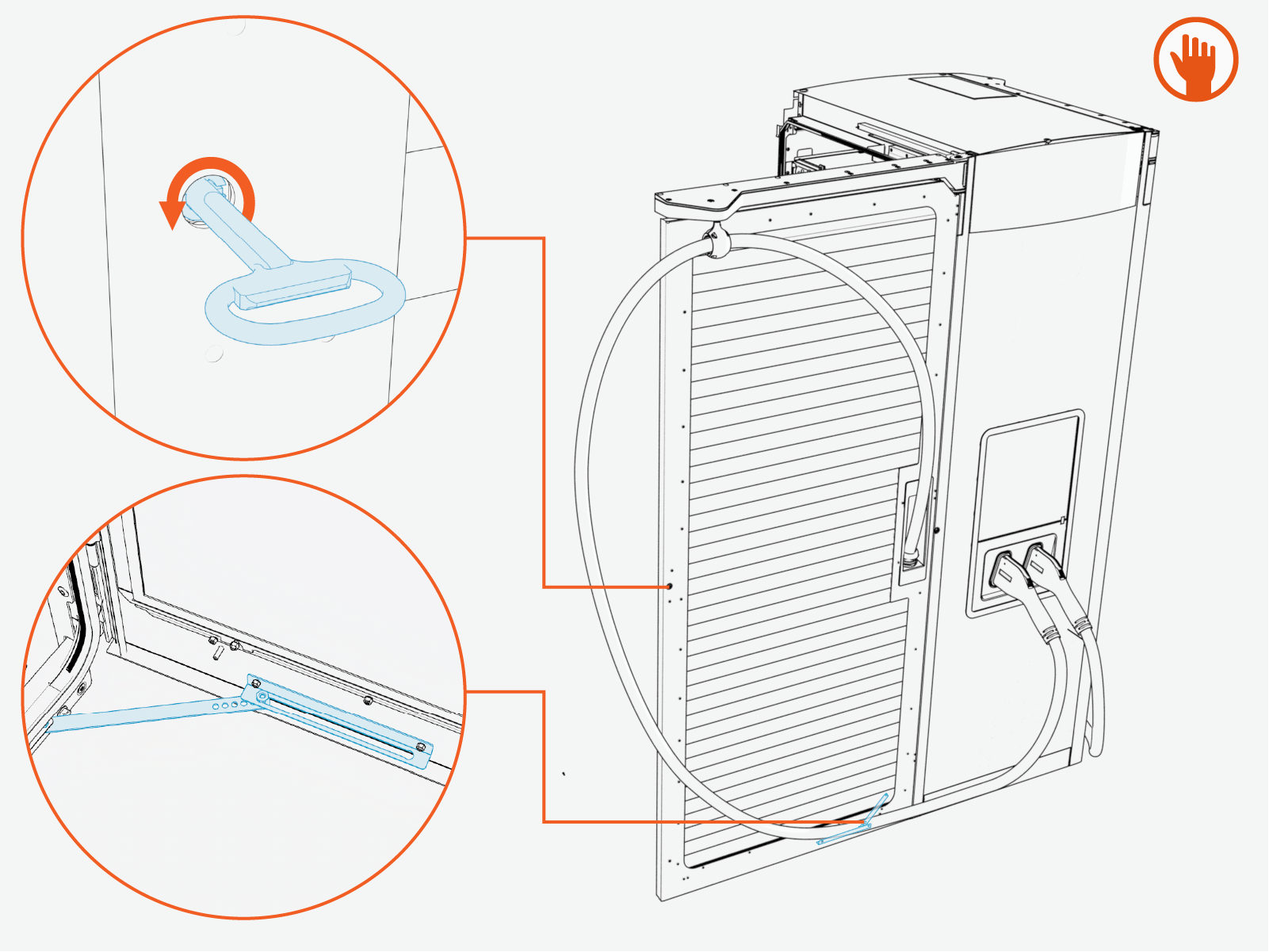

Open the Exhaust (Left) Door

Use the door key to unlock the exhaust (left) door, then swing the door open until the door stopper secures it in the open position.

Raise the door stopper to disengage it. Then, reverse the above step to close the exhaust door after maintenance.

Open the Display Door

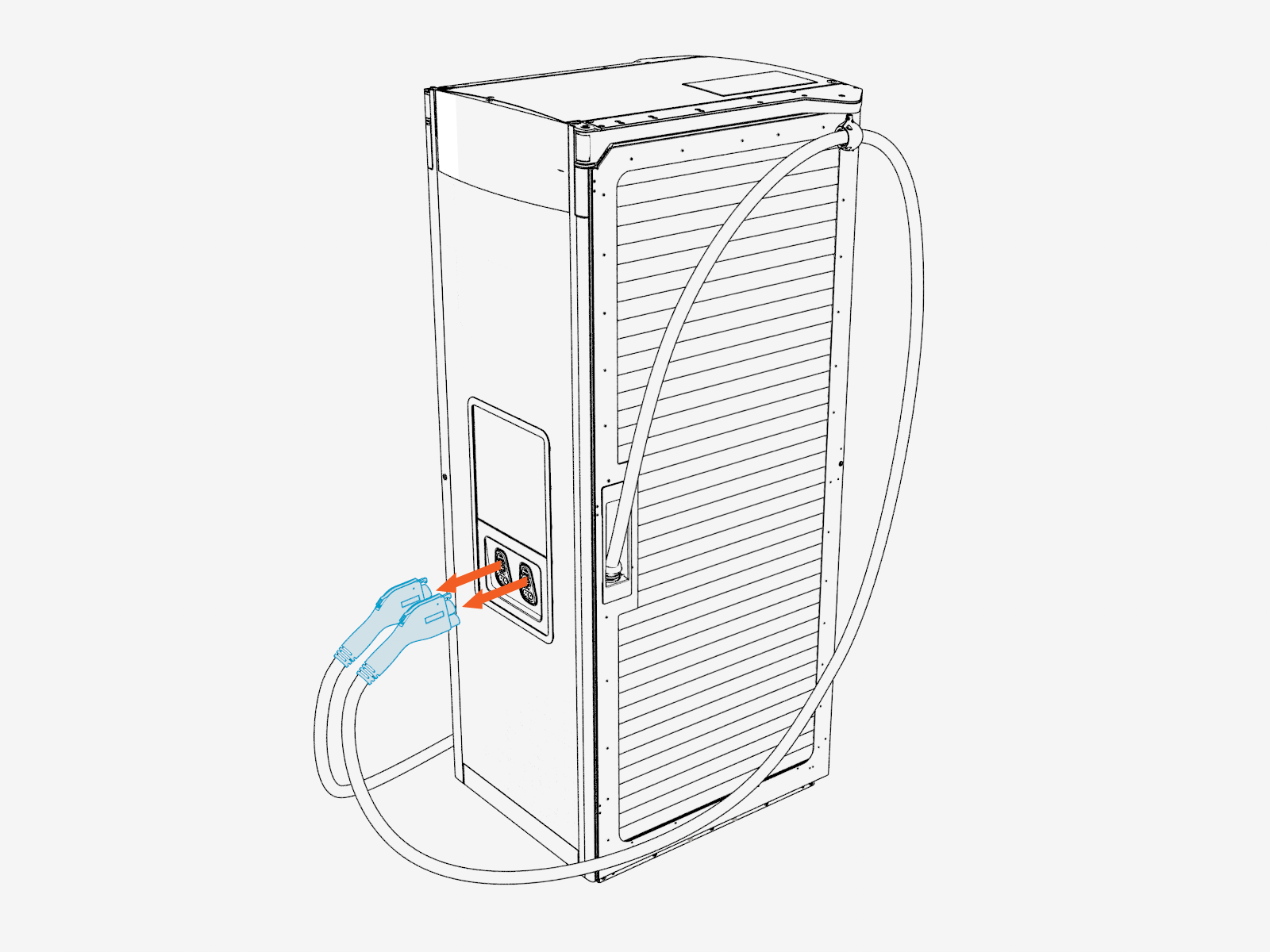

  1. Detach the charging cable connectors from the holsters.

    ChargePoint recommends wrapping the charging connectors with a protective bag or cover. Set the charging connectors down where they will not be damaged during service.

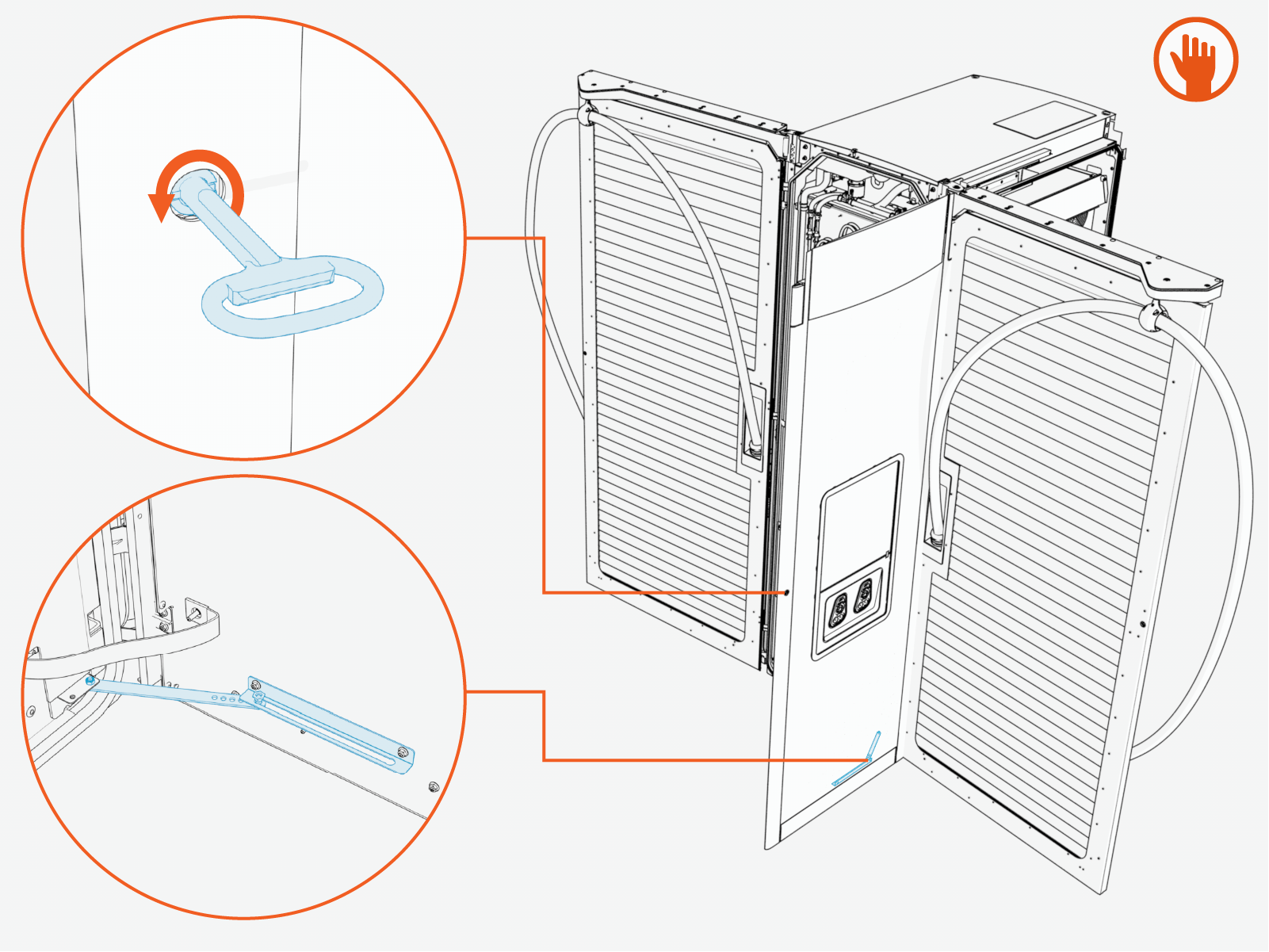

  2. Use the door key to unlock the display (front side) door. Swing the display door open until the door stopper holds the door in open position.

    Raise the door stopper to disengage it. Then, reverse the above steps to close the display door after maintenance.
