Install the Power Plate

1. Align the power plate with the housing and slide it down until it touches the metal bracket.



   IMPORTANT:: Avoid damaging the shunt trip cables when routing.

2. Ensure the power plate is seated correctly.

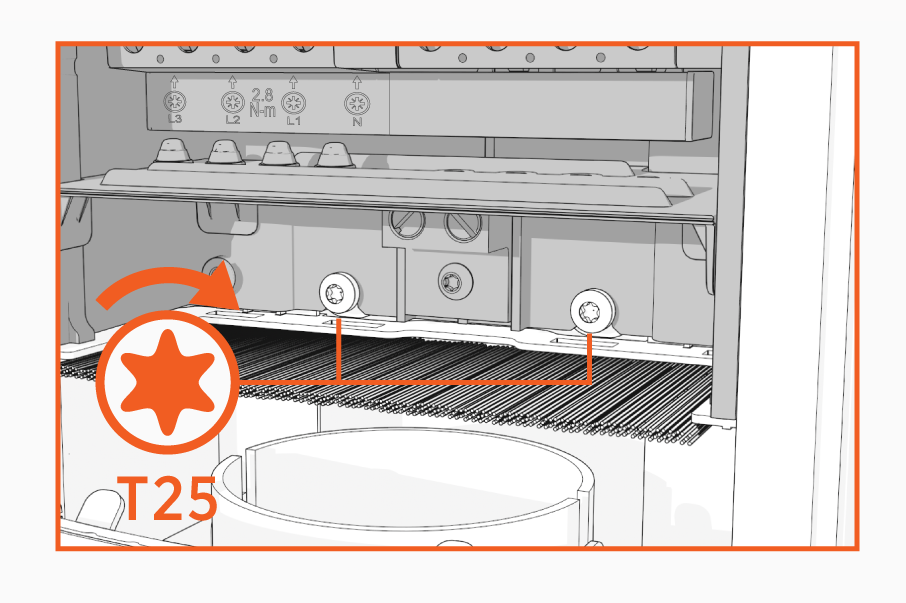

3. Using a T25 torque driver, torque the screws to 5.7 Nm (50 in-lb) to secure the power plate.



4. Ensure the power plate is fully seated. If the distance from the top of the power plate to the top of the pedestal does not equal 286 +/- 1 mm (11.26 in) (a), contact ChargePoint Support.
