Coolant Level Sensor

This section provides instructions for replacing the coolant level sensor in the Power Block.

Before You Begin

Before servicing the component, complete the following steps:

  1. Power off.

  2. Remove front upper panel.

AFTER REPLACING THE COMPONENTS, REVERSE THE ABOVE STEPS TO COMPLETE THE SERVICE.

Replace the Coolant Level Sensor

  1. If necessary, rotate out the coolant reservoir to access the sensor.

  2. Disconnect the sensor cable.

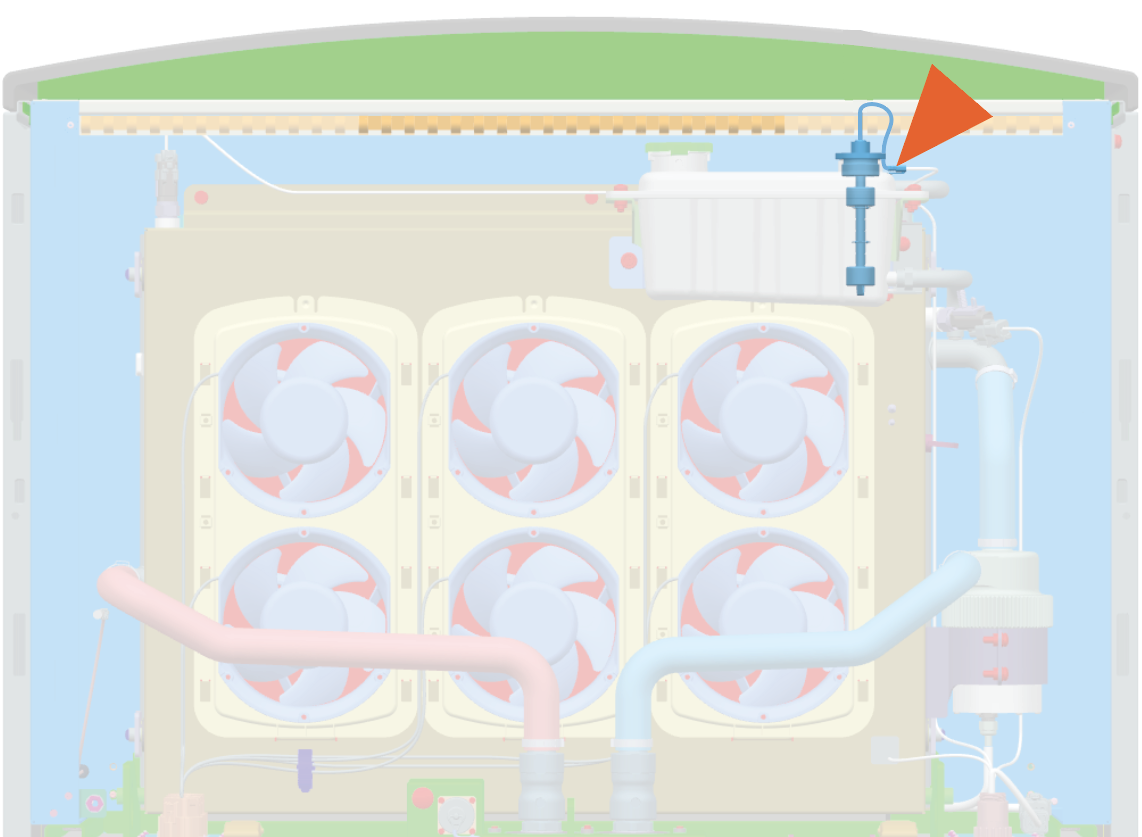

    Disconnect the sensor cable

  3. Unscrew the sensor cap to remove the sensor.

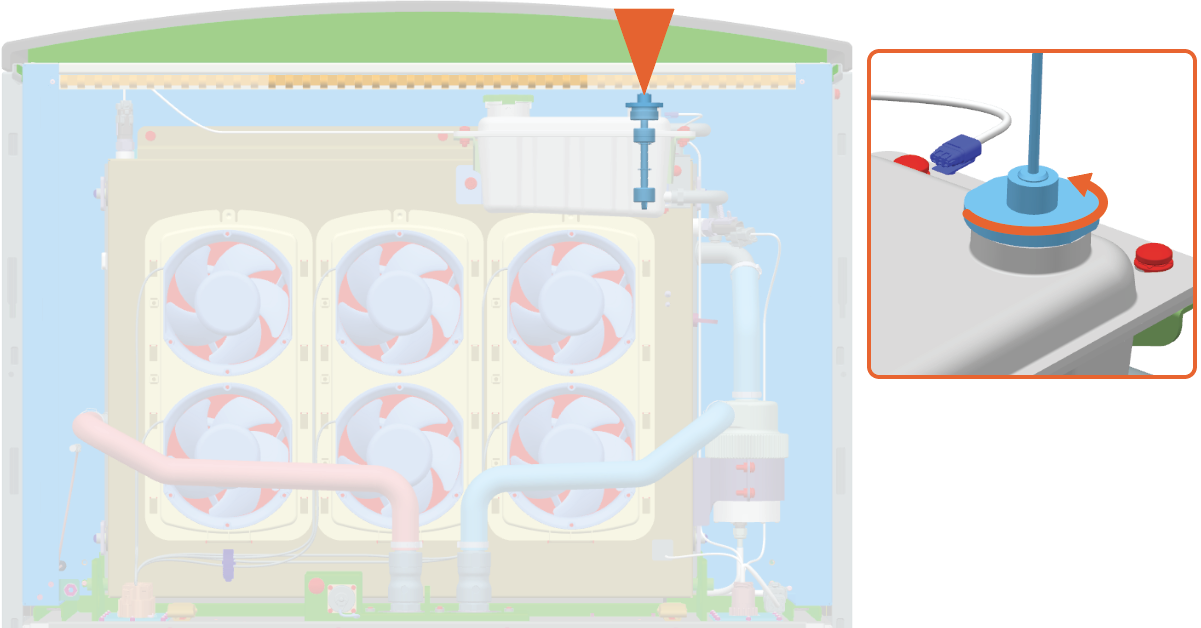

    Unscrew the sensor cap to remove the sensor.

Reverse the above steps to reinstall with replacement FRUClosed Field Replaceable Unit.



Always refill or top off coolant when you service a part of the cooling system or remove, reinstall, or replace a Power Module.
  • To adhere to ChargePoint best practices, complete the post-service checklist before you leave the site.

  • For assistance or to return a faulty part to ChargePoint, go to chargepoint.com/support and contact technical support using the appropriate region-specific number.
