Side Panels (Overhead Mounted)

This section provides information on servicing and replacing side panels (overhead mounted).

Required Tools and Materials

Orange and white icon that represents a tool or action.

T25 security screwdriver

Orange and white icon that represents a tool or action.

Stepladder

Before You Begin

  1. Power off the charging station at the site electrical panel.

  2. Determine if the Power Link 1000 has preassembled covers or unassembled components, remove them as necessary.

  3. Open the upper door.

AFTER REPLACING A SIDE PANEL, REVERSE THE ABOVE STEPS TO COMPLETE THE SERVICE.

Replace Side Panel

To replace the side panel, complete the following steps:

Remove

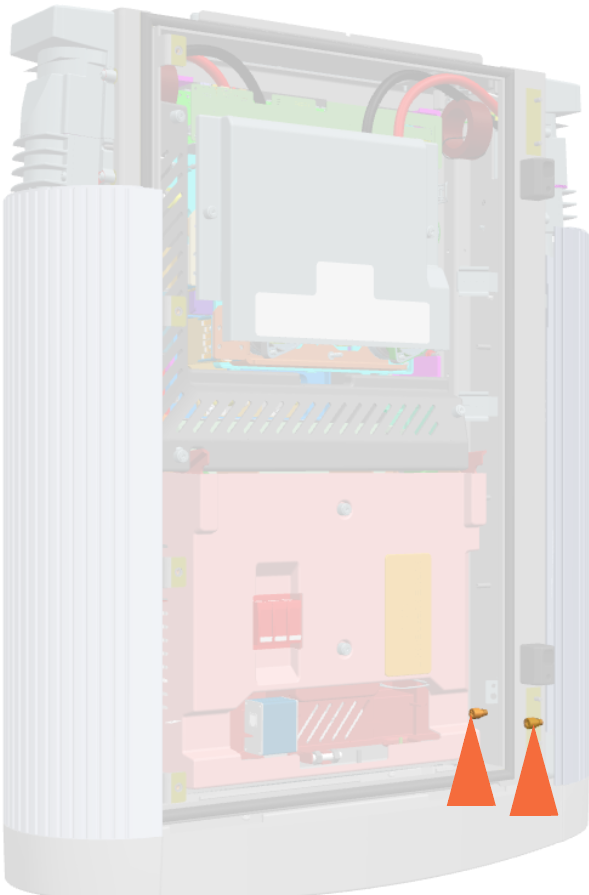

  1. Loosen the M5 screws (x2) (use T25 security screwdriver) at lower side inside the cabinet.

    Loosen the two M5 screws using T25 security screwdriver at lower side inside the cabinet.

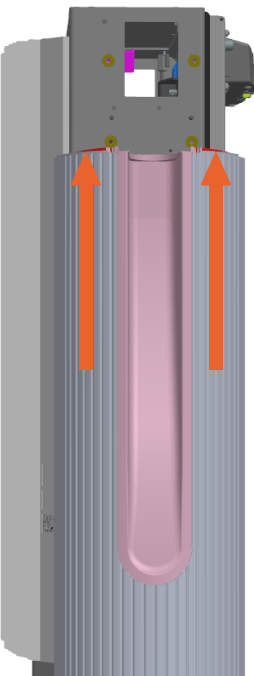

  2. Slowly push upper side of the panel up to disengage it from the two hooks on the frame and remove the panel.

    Slowly push upper side of the panel up to disengage it from the two hooks on the frame

    After pushing upper side of the panel up to disengage it from the two hooks on the frame, then remove the panel.

Reinstall

To reinstall the side panels, complete the following steps:

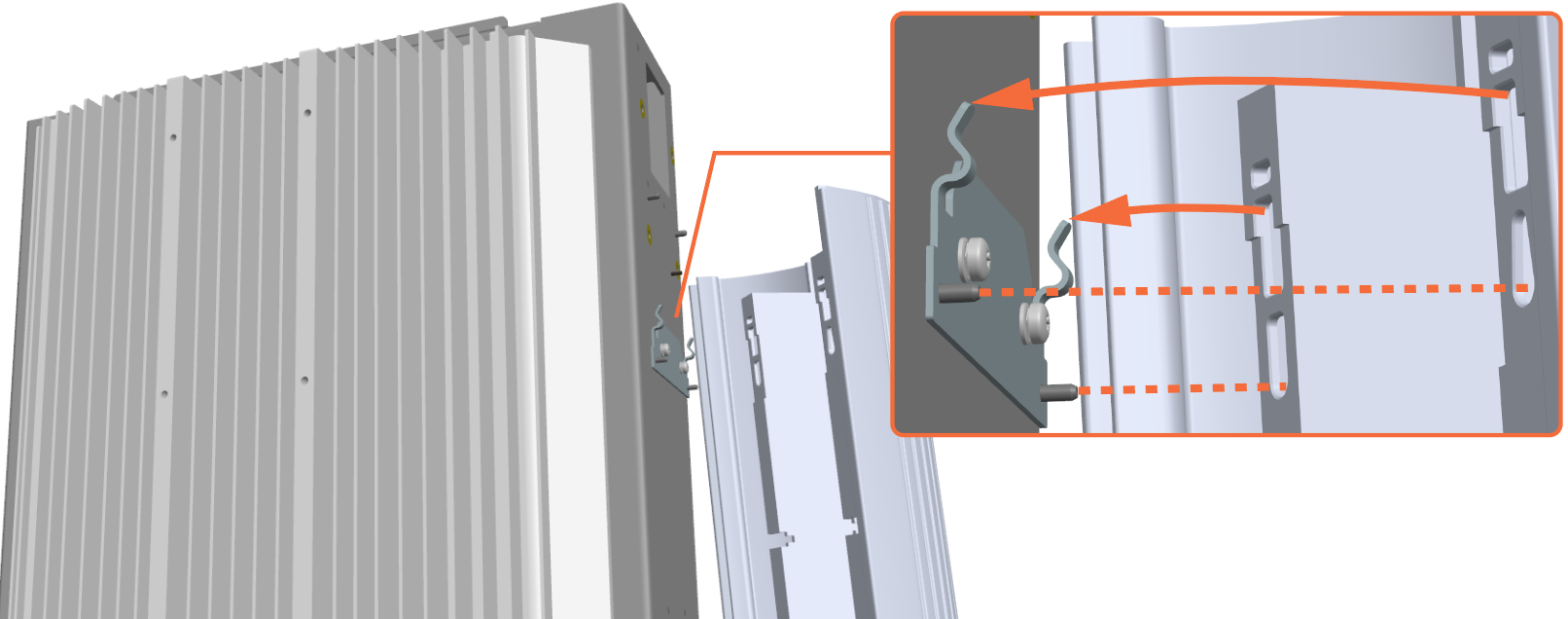

  1. Align and install the side panel onto the two hooks and two studs on the frame.

    Align and install the side panel onto the two hooks and two studs on the frame.

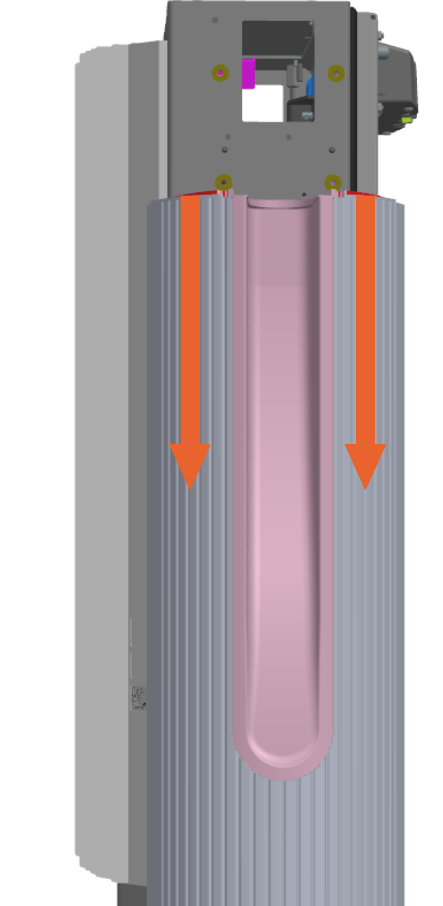

  2. Slowly pull the side panel down to hook the panel to the frame.

    Slowly pull the side panel down to hook the panel to the frame.

  3. Align and torque (use T25 security screwdriver) the M5 screws (x2) to 4.5 Nm (40 in-lb).

    Align and torque the two M5 screws using T25 security screwdriver to 4.5 Nm or 40 in-lb

  • To adhere to ChargePoint best practices, complete the post-service checklist before you leave the site.

  • For assistance or to return a faulty part to ChargePoint, go to chargepoint.com/support and contact technical support using the appropriate region-specific number.
