Appendix A: Variation Identification

There are two variations of the pedestal-mount Power Link 2000: Variation A and Variation B.

Variation B Power Link 2000 supports the following enhancements:

  • Allows high voltage DC output, Ethernet, and 48 V DC power output from Power Blocks to be connected from Power Link 2000 to Power Link 2000, enabling higher port counts in specific sequential charging configurations.

  • 48 VDC redundancy - Allows up to two 48 V inputs per Power Link 2000.

The variation of a Power Link 2000 can be identified by its part number, as described by this appendix.

Power Link 2000 Part Number

Power Link 2000s are manufactured and ordered by part number. Part numbers are listed on the Power Link 2000 sales order, on the Power Link 2000 package shipping label, and on the Power Link 2000 upper front door.

To find the part number on the Power Link 2000 upper front door, take these steps:

  1. Power off.

  2. Remove these:

    1. Top cap

    2. Front lower cover

    3. Front upper cover

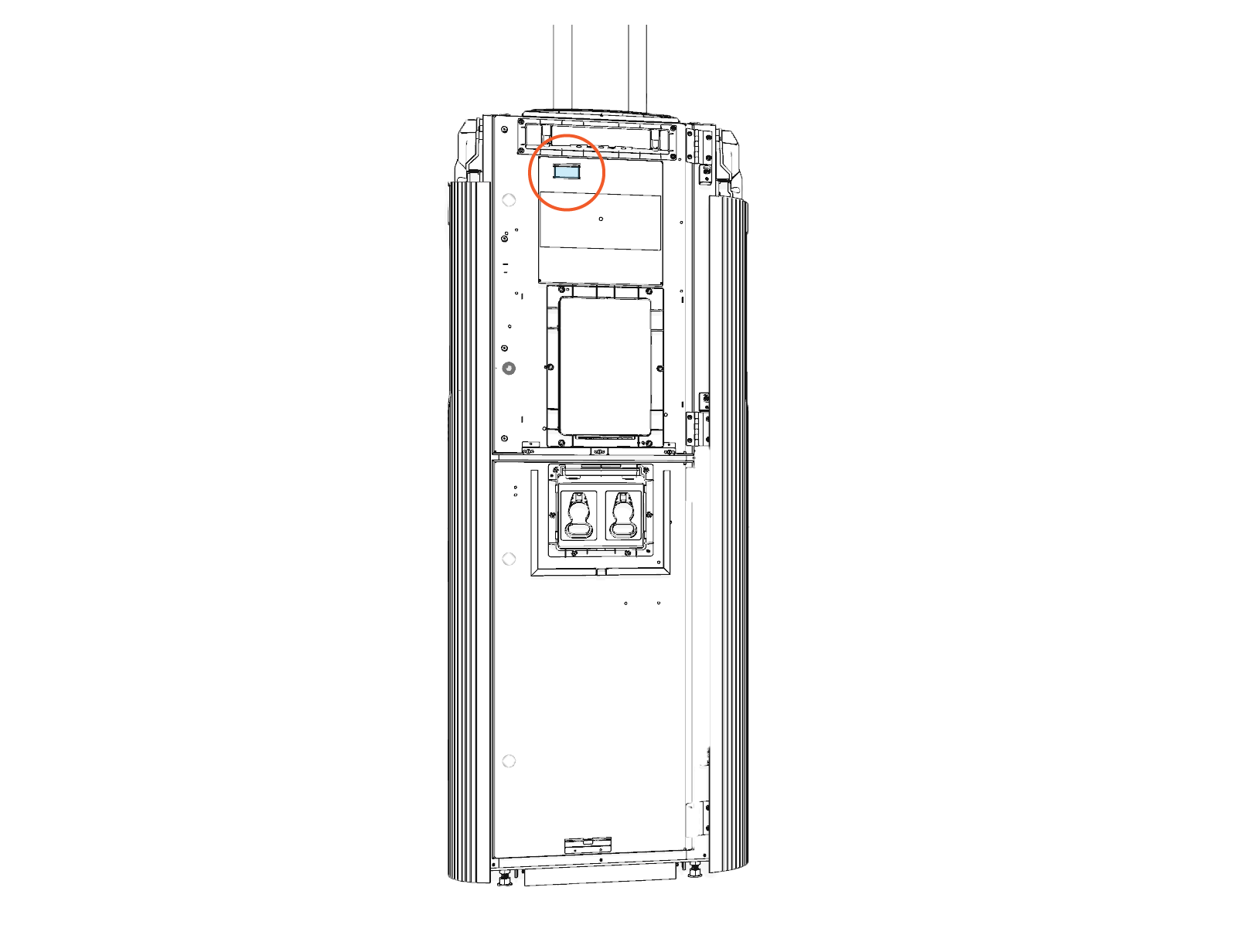

  3. Find the part number label on the upper door.

    Technical illustration depicts the procedural step.

If service work does not proceed immediately after finding the part number on the front door, reverse the above steps to restore the Power Link 2000 to operating state.

The part number is formatted as 99-XXXXXX-YY-ZZ, where:

  • 99-XXXXXX is the base part number

  • YY is a version enumerator

  • ZZ is a variant indicator

Power Link 2000 Variation Identification

The Power Link 2000 variation is identified by its base part number and version enumerator, as follows:

Power Link 2000 Model Identification By Part Number
 Power Link 2000 Part Number Variation

  • 99-007902-03

  • 99-007904-03

  • 99-007910-02

  • 99-007911-02

  • 99-007916-02

A

Any part number other than listed above.

B

For further assistance in Power Link 2000 variation identification, contact ChargePoint.
