High Voltage (HV) Surge Suppressors

This section provides instructions for replacing the HVClosed High Voltage surge suppressors in the Power Link 2000.

Before You Begin

Before servicing the component, complete the following steps:

  1. Power off.

  2. Remove these:

    1. Top cap

    2. Front lower cover

    3. Front upper cover

  3. Open the upper door.

After replacing the components, reverse the above steps to complete the service.



Replace the HV Surge Suppressor

To replace HVClosed High Voltage surge suppressors, complete all steps given below.

Remove the suppressor

Pinch the sides and pull down the surge suppressor to remove it.

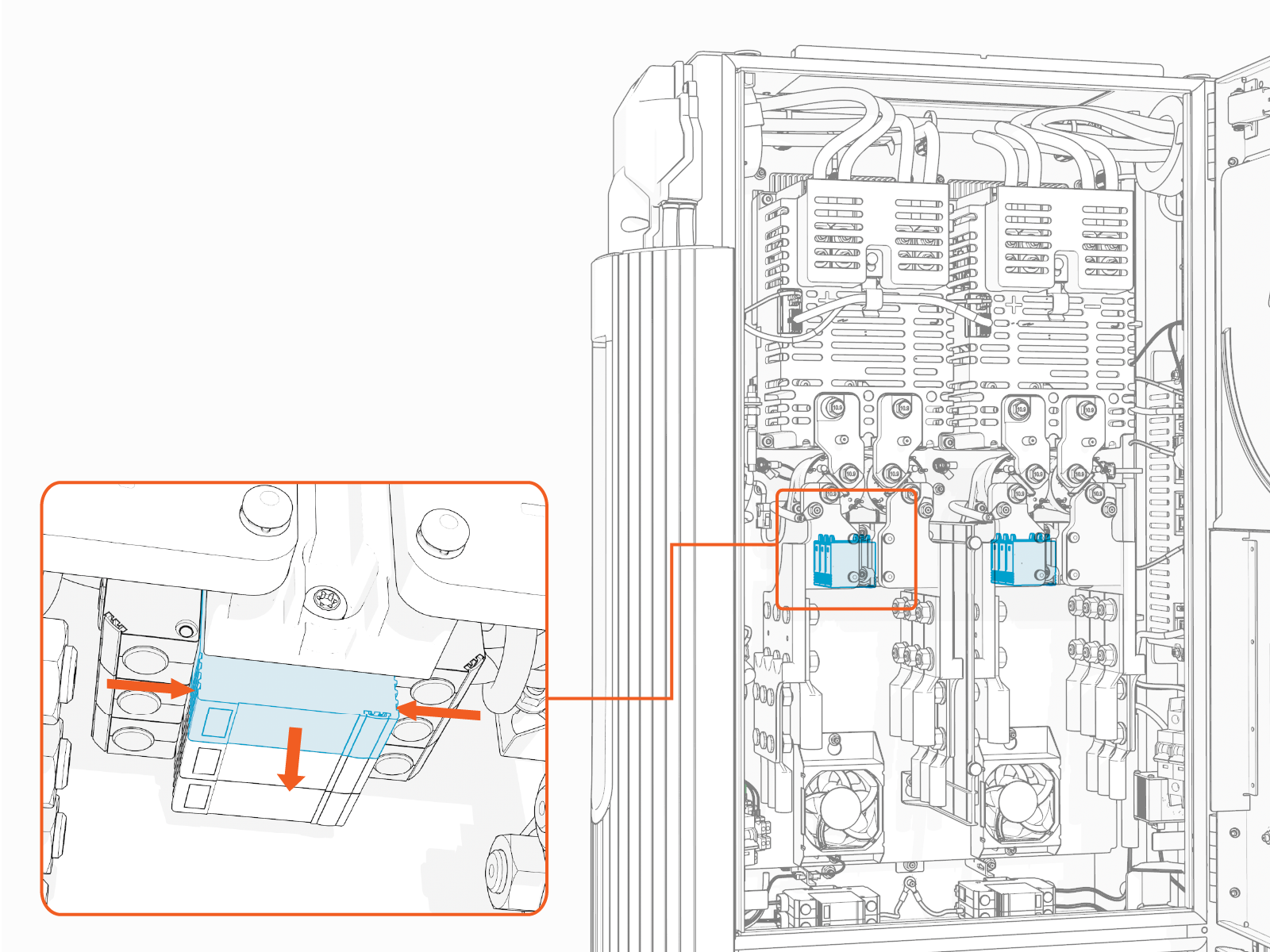

Technical illustration depicts the procedural step.

Reinstall the suppressor

Plug in the replacement surge suppressor.

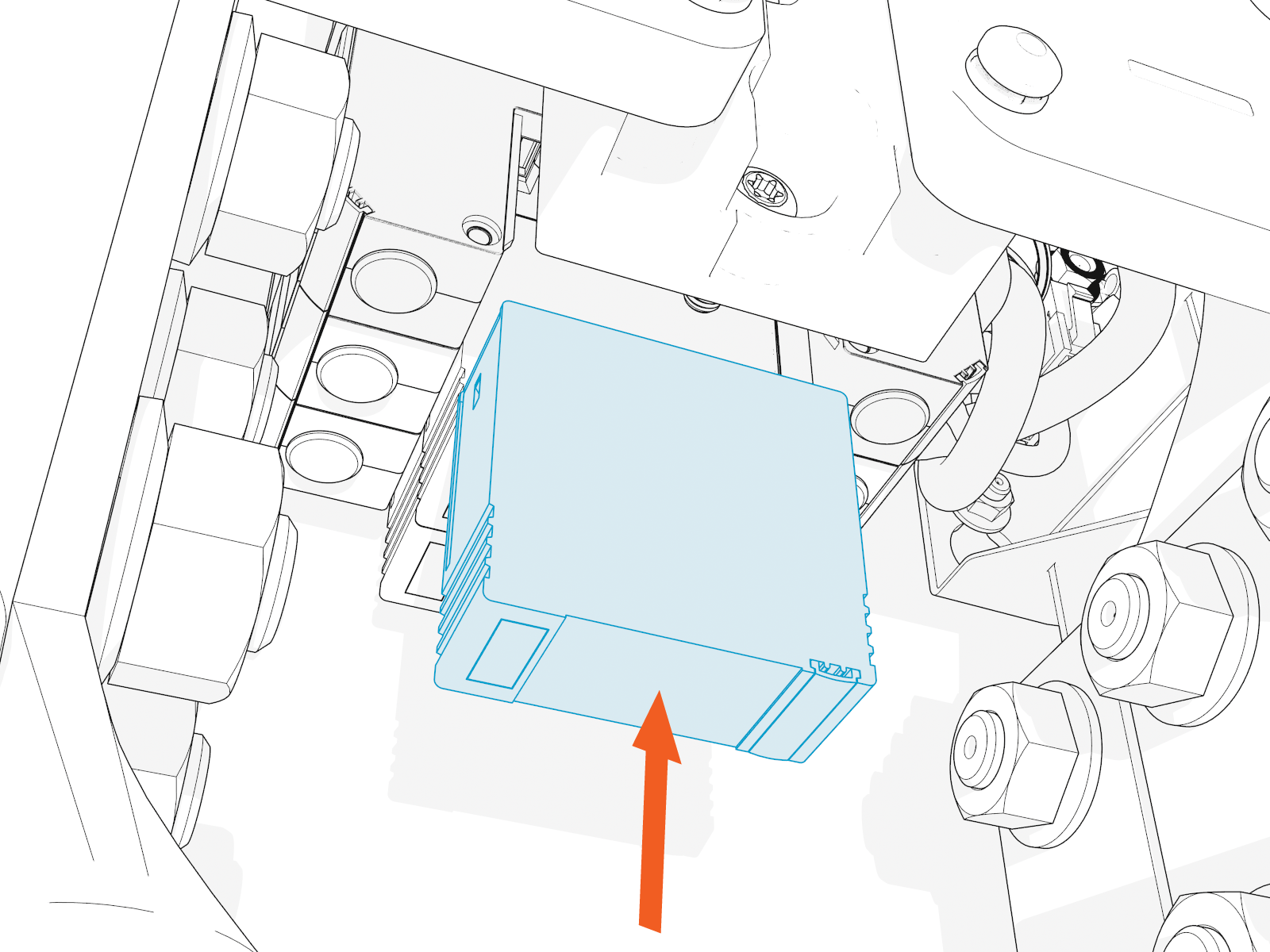

Technical illustration depicts the procedural step.


  • To adhere to ChargePoint best practices, complete the post-service checklist before you leave the site.

  • For assistance or to return a faulty part to ChargePoint, go to chargepoint.com/support and contact technical support using the appropriate region-specific number.
