Cooling Controller

This section provides instructions for replacing the cooling controller in the Power Link 2000.

Required Tools and Materials

Orange and white icon that represents a tool or action.

8 mm hex socket



Before You Begin

Before servicing the component, complete the following steps:

  1. Power off.

  2. Remove these:

    1. Top cap

    2. Front lower cover

    3. Front upper cover

  3. Open the lower door.

After replacing the components, reverse the above steps to complete the service.



Replace the Cooling Controller

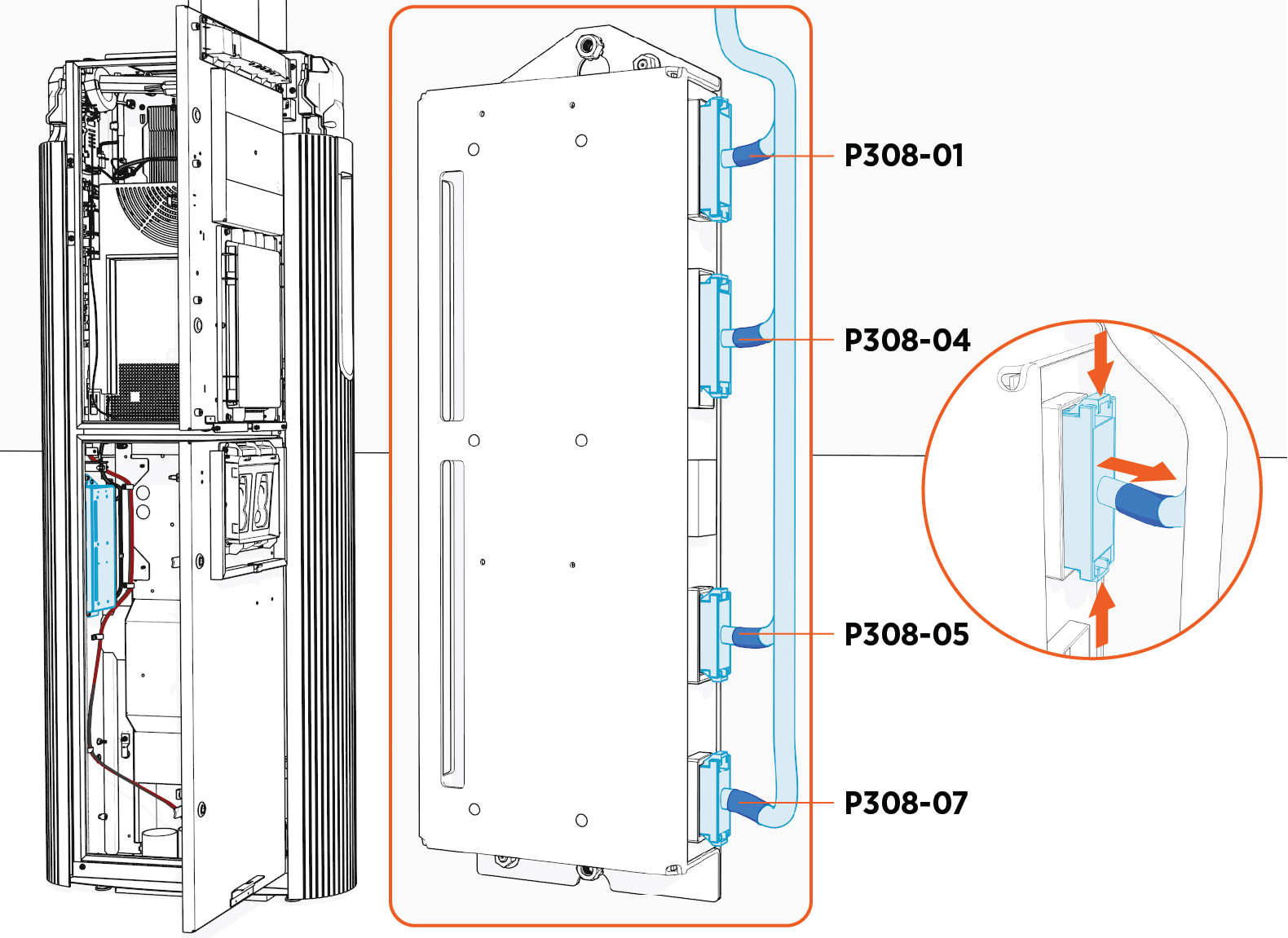

  1. Press the latches and pull the connector to disconnect the cables (x4).

    Technical illustration depicts the procedural step.Technical illustration depicts the procedural step.

    • Find the label on each cable to plug its connector back into its correct receptacle connector.

    • To reconnect, plug in. The latch must snap into the receptacle connector with a click sound to ensure that the connection is secure.

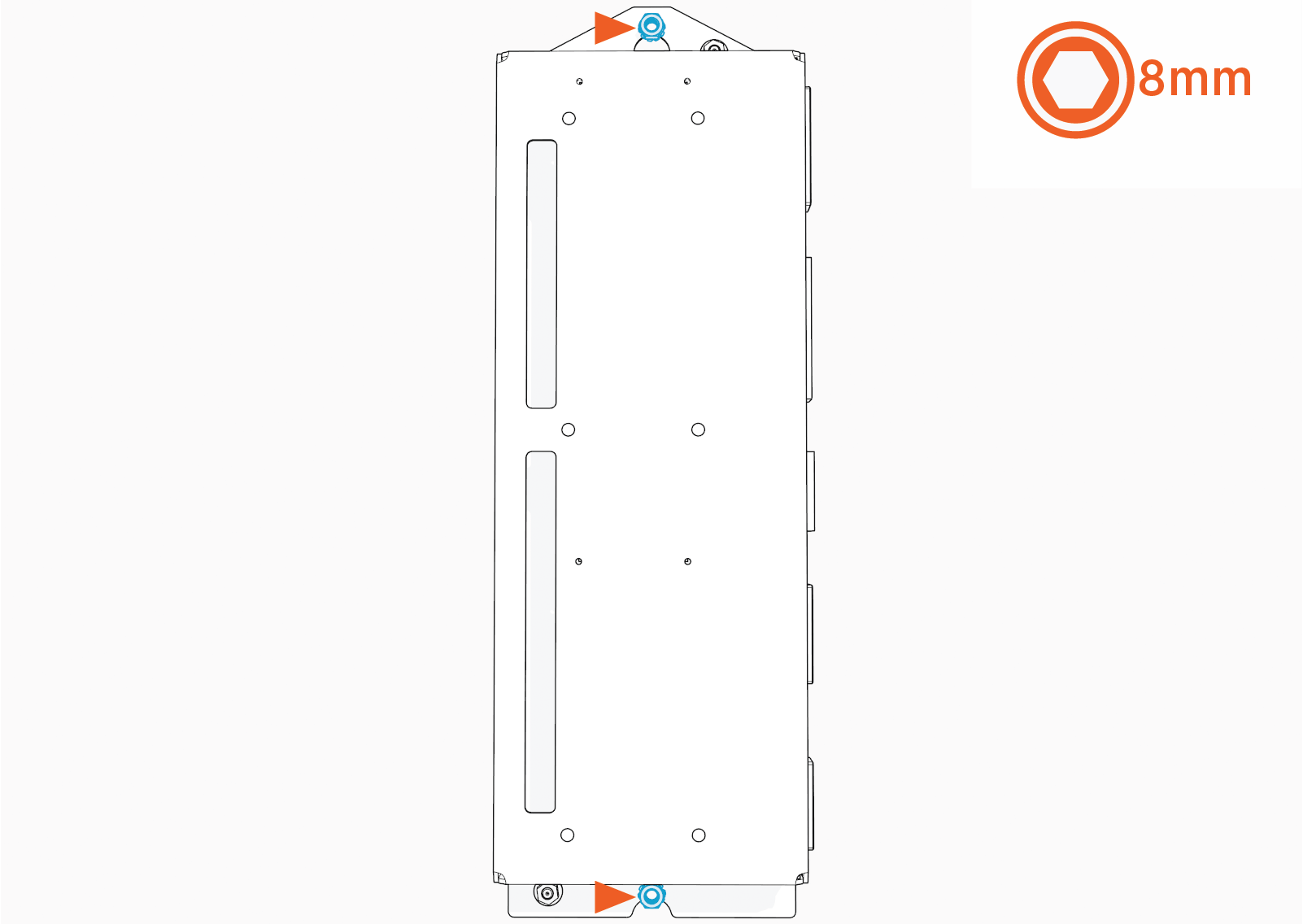

  2. Loosen the hex nuts (x2) and slide the cooling controller up to remove.

    Technical illustration depicts the procedural step.

    Torque these nuts to 4.5 Nm (40 in-lb).

Reverse the above steps to reinstall with replacement FRUClosed Field Replaceable Unit.


  • To adhere to ChargePoint best practices, complete the post-service checklist before you leave the site.

  • For assistance or to return a faulty part to ChargePoint, go to chargepoint.com/support and contact technical support using the appropriate region-specific number.
