Power Link 2000 Controller

This section provides instructions for replacing the Power Link 2000 controller.

Required Tools and Materials

Orange and white icon that represents a tool or action.

8 mm hex socket

Before You Begin

Before servicing the component, complete the following steps:

  1. Power off.

  2. Remove these:

    1. Top cap

    2. Front lower cover

    3. Front upper cover

  3. Open the upper door.

  4. Remove the HV DC input bus bar safety cover.

After replacing the components, reverse the above steps to complete the service.





Replace the Power Link 2000 Controller

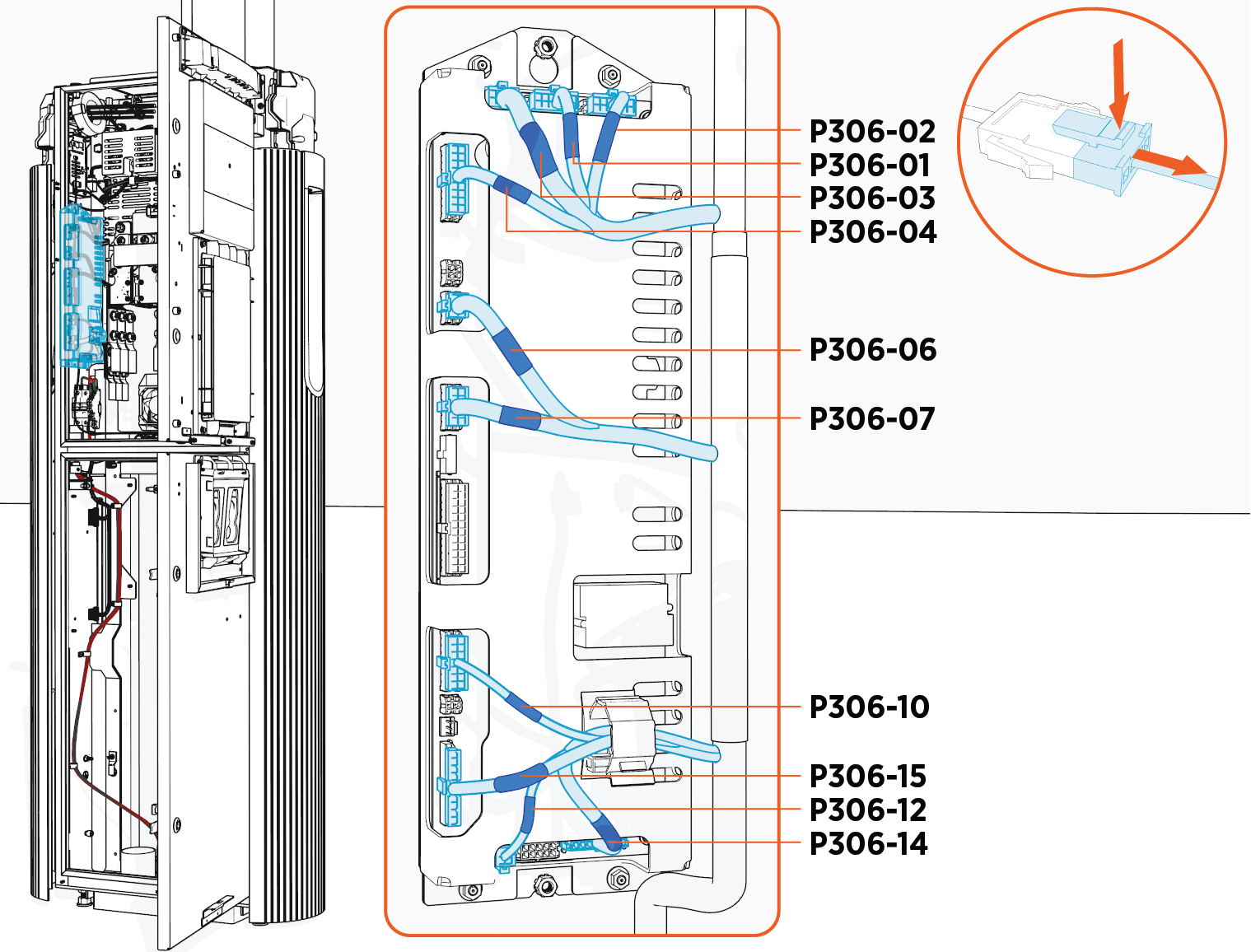

  1. Press the latch and pull the connector to disconnect the cables (x10).

    Technical illustration depicts the procedural step.

    • Find the label on each cable to plug its connector back into its correct receptacle connector.

    • To reconnect, plug in. The latch must snap onto the receptacle connector with a click sound to ensure that the connection is secure.

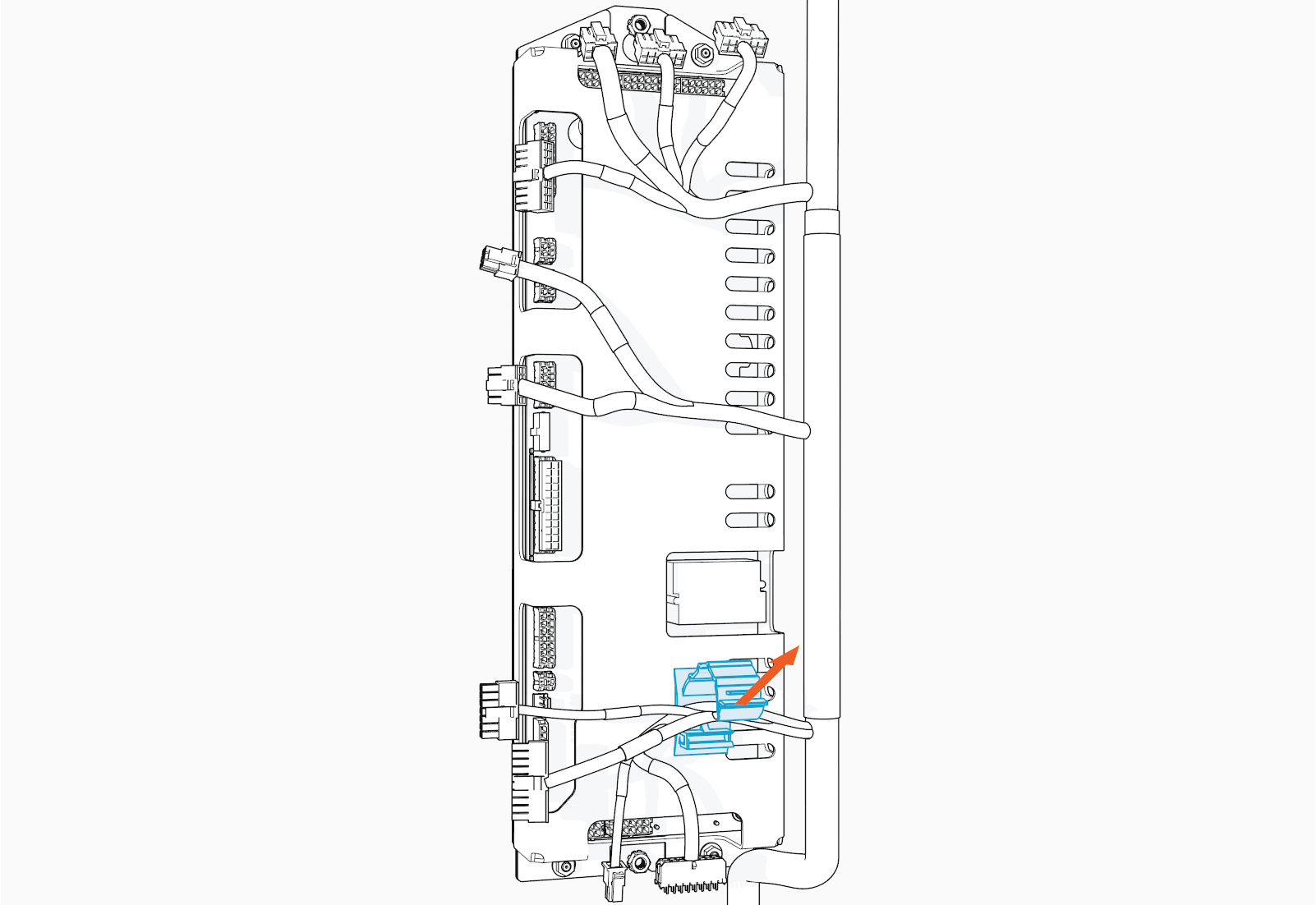

  2. Flex the cable tie to untie the cables.

    Technical illustration depicts the procedural step.

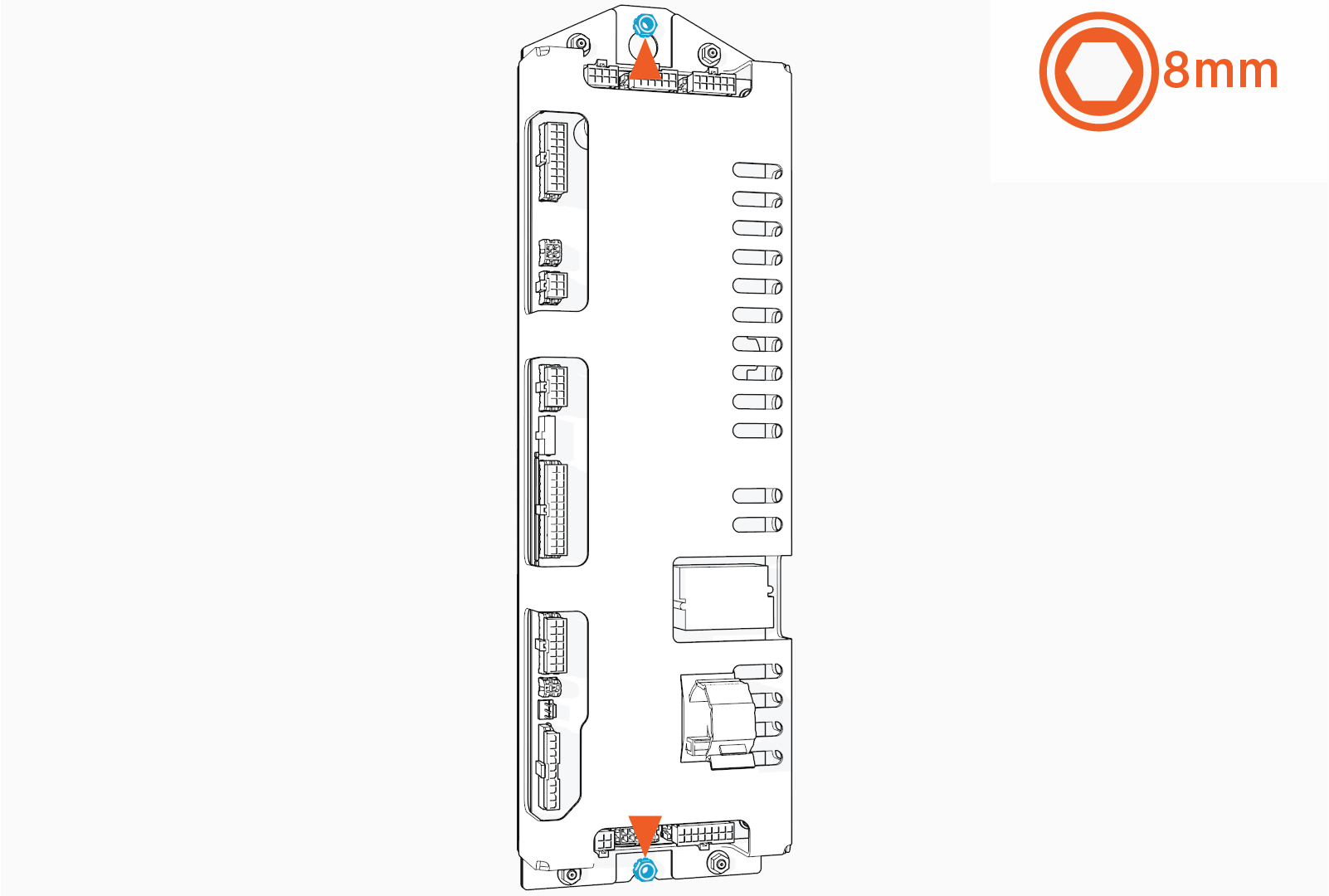

  3. Loosen the hex nuts (x2) and slide the controller up to remove.

    Technical illustration depicts the procedural step.

    Torque these nuts to 4.5 Nm (40 in-lb).

Reverse the above steps to reinstall with replacement FRUClosed Field Replaceable Unit.
