Area Downlight

This section provides instructions for replacing the area downlight in the Power Link 2000.

Required Tools and Materials

Orange and white icon that represents a tool or action.

8 mm hex socket

Orange and white icon that represents a tool or action.

Needle nose pliers

Before You Begin

Before servicing the component, complete the following steps:

  1. Power off.

  2. Remove these:

    1. Top cap

    2. Front lower cover

    3. Front upper cover

  3. Open the upper door.

After replacing the components, reverse the above steps to complete the service.



Replace the Area Downlight

  1. On the interior surface of the Power Link 2000 door, unplug the wire harness.

    Technical illustration depicts the procedural step.

    To reconnect, plug in. The latch must snap onto the receptacle connector with a click sound to ensure that the connection is secure.

  2. Use needle nose pliers to pinch the receptacle connector and push it in through the door.

    Technical illustration depicts the procedural step.

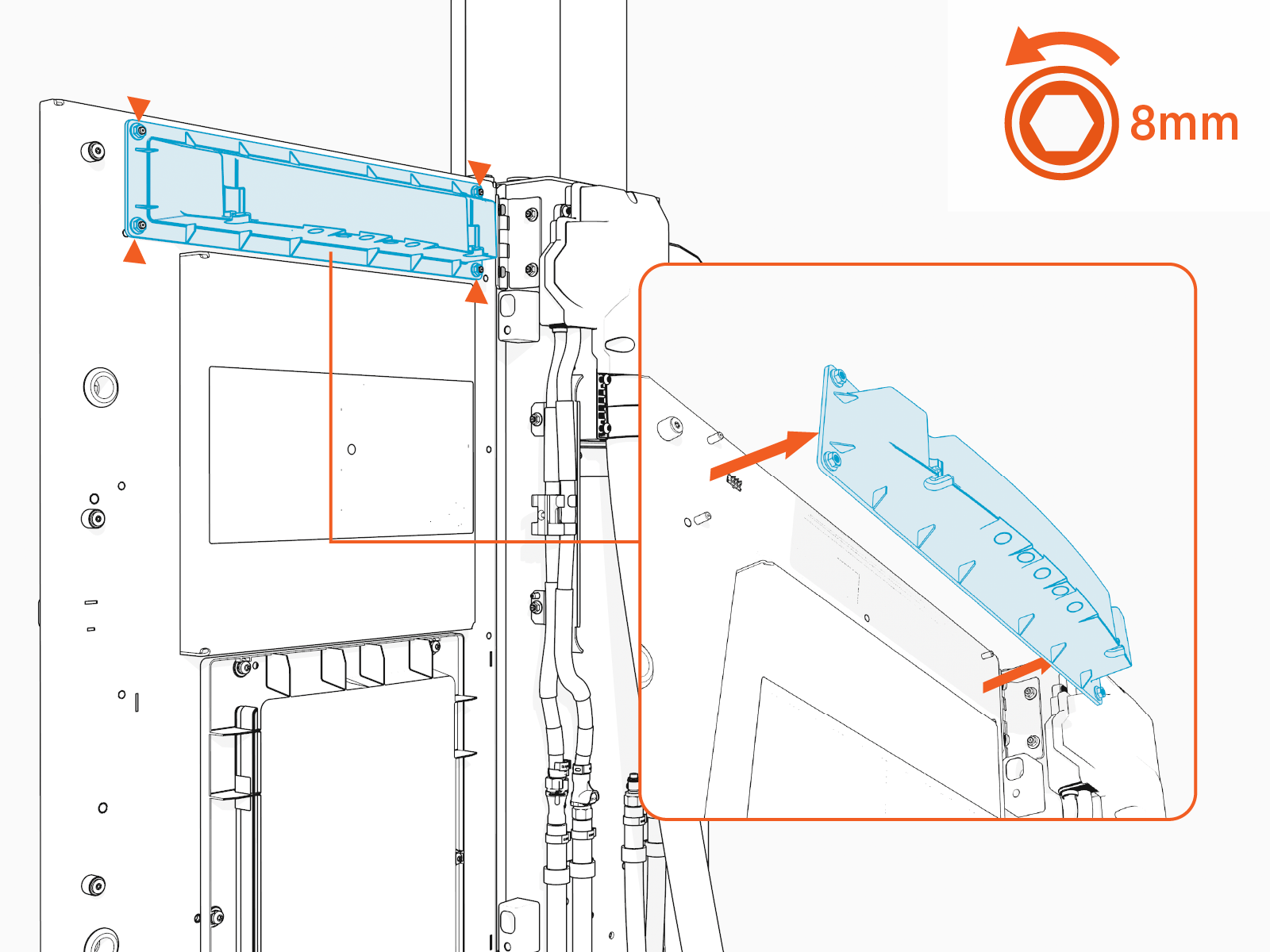

  3. Remove the nuts (x4) and remove the area downlight.

    Technical illustration depicts the procedural step.

    Torque these nuts to 2.8 Nm (25 in-lb).

Reverse the above steps to reinstall with replacement FRUClosed Field Replaceable Unit.


  • To adhere to ChargePoint best practices, complete the post-service checklist before you leave the site.

  • For assistance or to return a faulty part to ChargePoint, go to chargepoint.com/support and contact technical support using the appropriate region-specific number.
