Door Fan

This section provides instruction for replacing the door fan in the Power Link 2000.

Required Tools and Materials

Orange and white icon that represents a tool or action.

T25 Security screwdriver

Before You Begin

Before servicing the component, complete the following steps:

  1. Power off.

  2. Remove these:

    1. Top cap

    2. Front lower cover

    3. Front upper cover

  3. Open the upper door.

After replacing the components, reverse the above steps to complete the service.



Replace the Door Fan

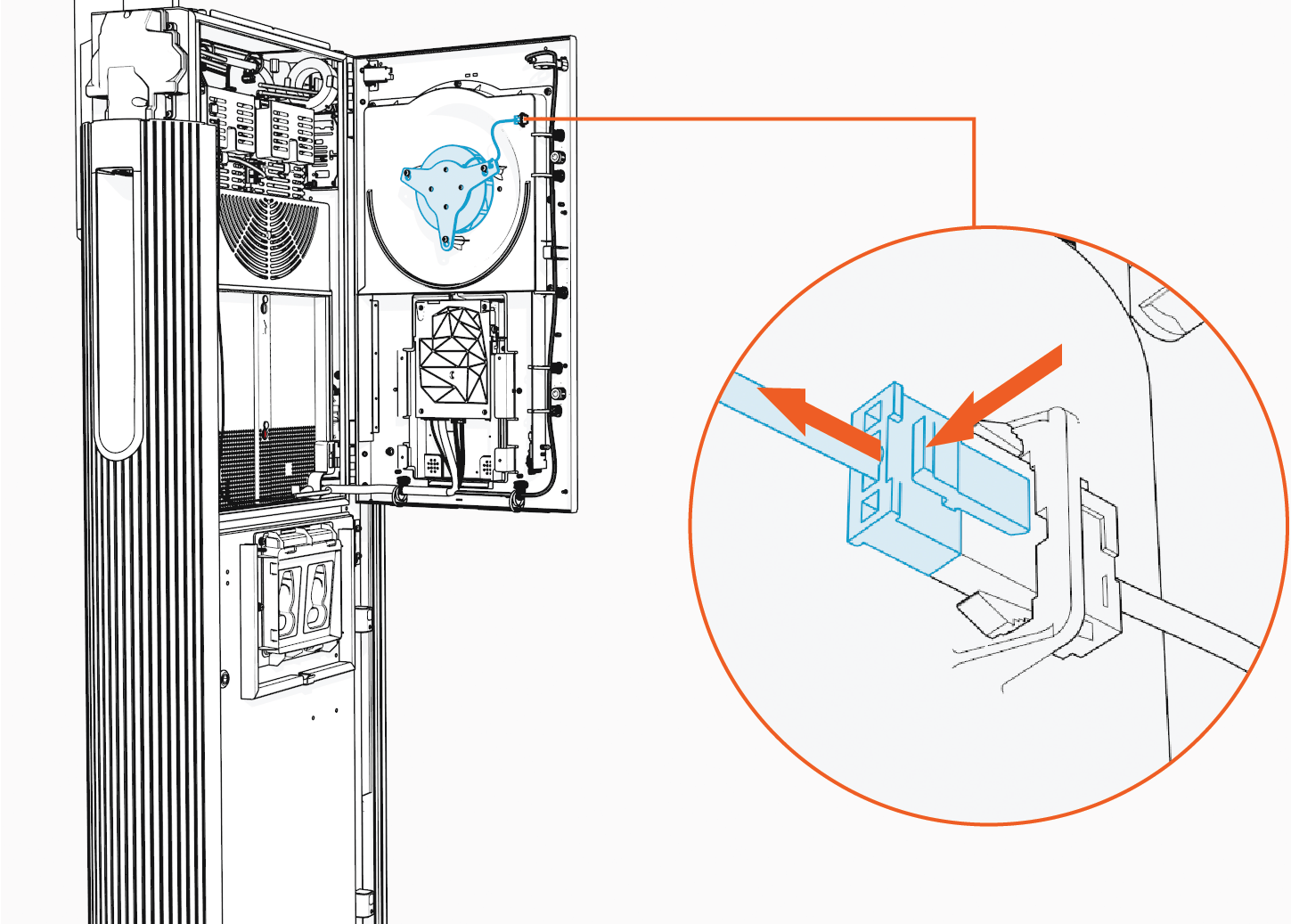

  1. Press the latch and pull the connector to disconnect the cable.

    Technical illustration depicts the procedural step.

    To reconnect, plug in. The latch must snap onto the receptacle connector with a click sound to ensure that the connection is secure.

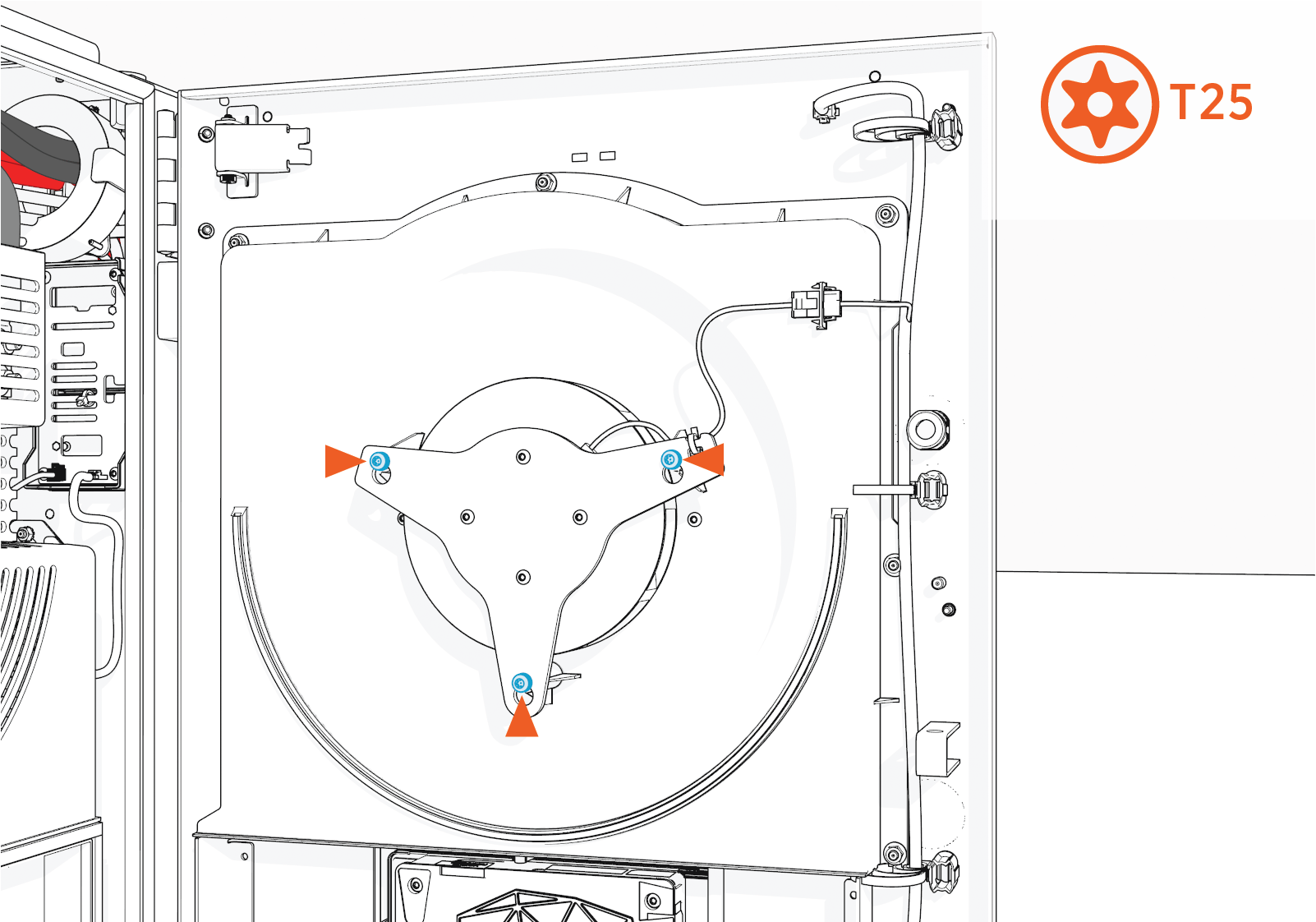

  2. Loosen the screws (x3) and slide the fan up to remove.

    Technical illustration depicts the procedural step.

    Torque these screws to 2.8 Nm (25 in-lb).

Reverse the above steps to reinstall with replacement FRUClosed Field Replaceable Unit.


  • To adhere to ChargePoint best practices, complete the post-service checklist before you leave the site.

  • For assistance or to return a faulty part to ChargePoint, go to chargepoint.com/support and contact technical support using the appropriate region-specific number.
