Ethernet Switch (SSLAN)

This section provides instructions for replacing the Ethernet switch (SSLAN Smart Switch Local Area Network) in the Power Link 2000.

Required Tools and Materials

8 mm hex socket

Before You Begin

Before servicing the component, complete the following steps:

1. Power off.

2. Remove these:

   1. Top cap

   2. Front lower cover

   3. Front upper cover

3. Open the upper door.

4. Remove the DC power path bus bar safety cover.

After replacing the components, reverse the above steps to complete the service.



Replace the Ethernet Switch (SSLAN)

1. Press the latch and pull the connectors to disconnect all cables from the Ethernet switch.



   Depending on the station configuration (for example, Pantograph), some connector positions may not have a cable connected. Take note of the existing connections before disconnecting.

   • Find the label on each cable to plug its connector back into its correct receptacle connector.

   • To reconnect, plug in. The connector latch must snap onto the receptacle with a click sound to ensure that the connection is secure.

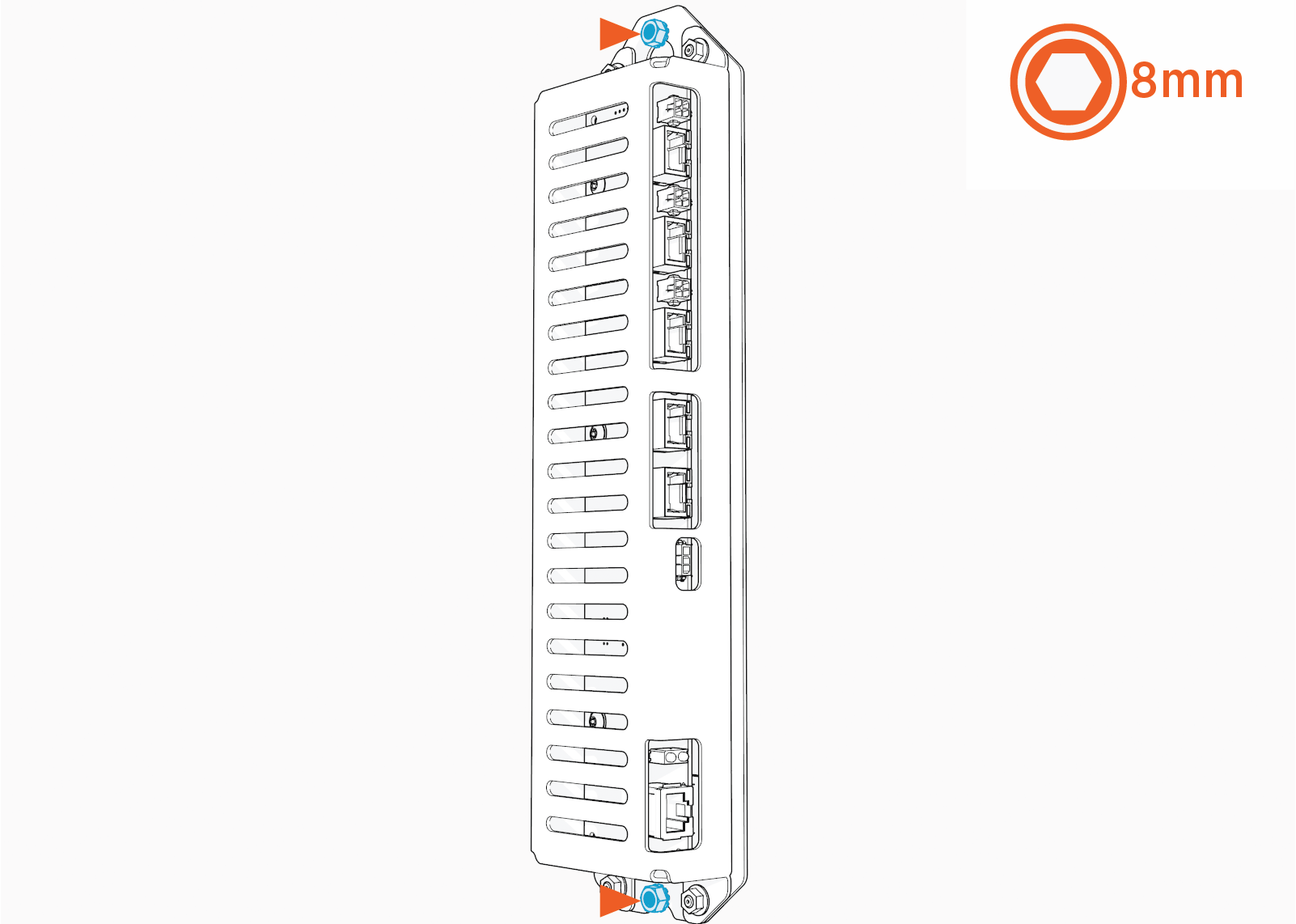

2. Loosen the hex nuts (x2) and slide the Ethernet switch up to remove.



   Torque these nuts to 4.5 Nm (40 in-lb).

Reverse the above steps to reinstall with replacement FRU Field Replaceable Unit.
