Pump and Reservoir Assembly

This section provides instructions for replacing the pump and reservoir assembly in the Power Link 2000.

Assembly Components

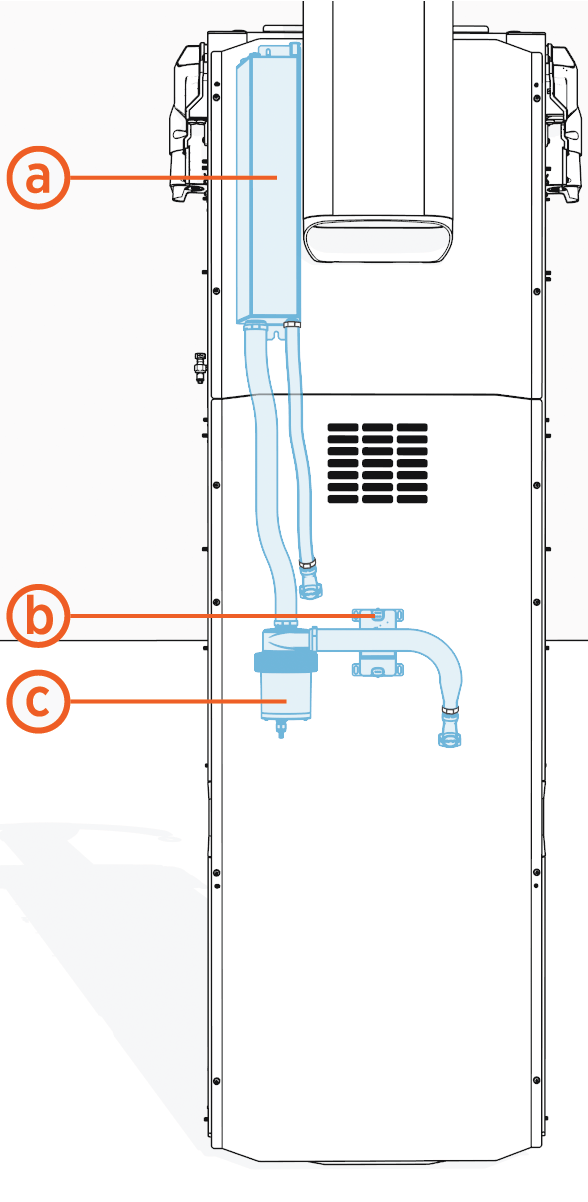

The assembly consists of the following components:

Technical illustration depicts the procedural step.

  1. Coolant reservoir

  2. Pump

  3. Pump controller

Required Tools and Materials

Orange and white icon that represents a tool or action.

Stepladder

Orange and white icon that represents a tool or action.

T30 Torx screwdriver (for pump)

Orange and white icon that represents a tool or action.

Hex socket set

  • 8 mm for coolant reservoir

  • 7 mm for pump controller

Orange and white icon that represents a tool or action.

Needle nose pliers

Orange and white icon that represents a tool or action.

Clean rags



Before You Begin

Before servicing the component, complete the following steps:

  1. Power off.

  2. Remove these:

    1. Top cap

    2. Heat sink cap

    3. Front lower cover

    4. Front upper cover

    5. Cable cap

    6. Side panel

    7. Rear upper cover

    8. Rear lower cover

After replacing the components, reverse the above steps to complete the service.





Replace the Pump and Reservoir Assembly

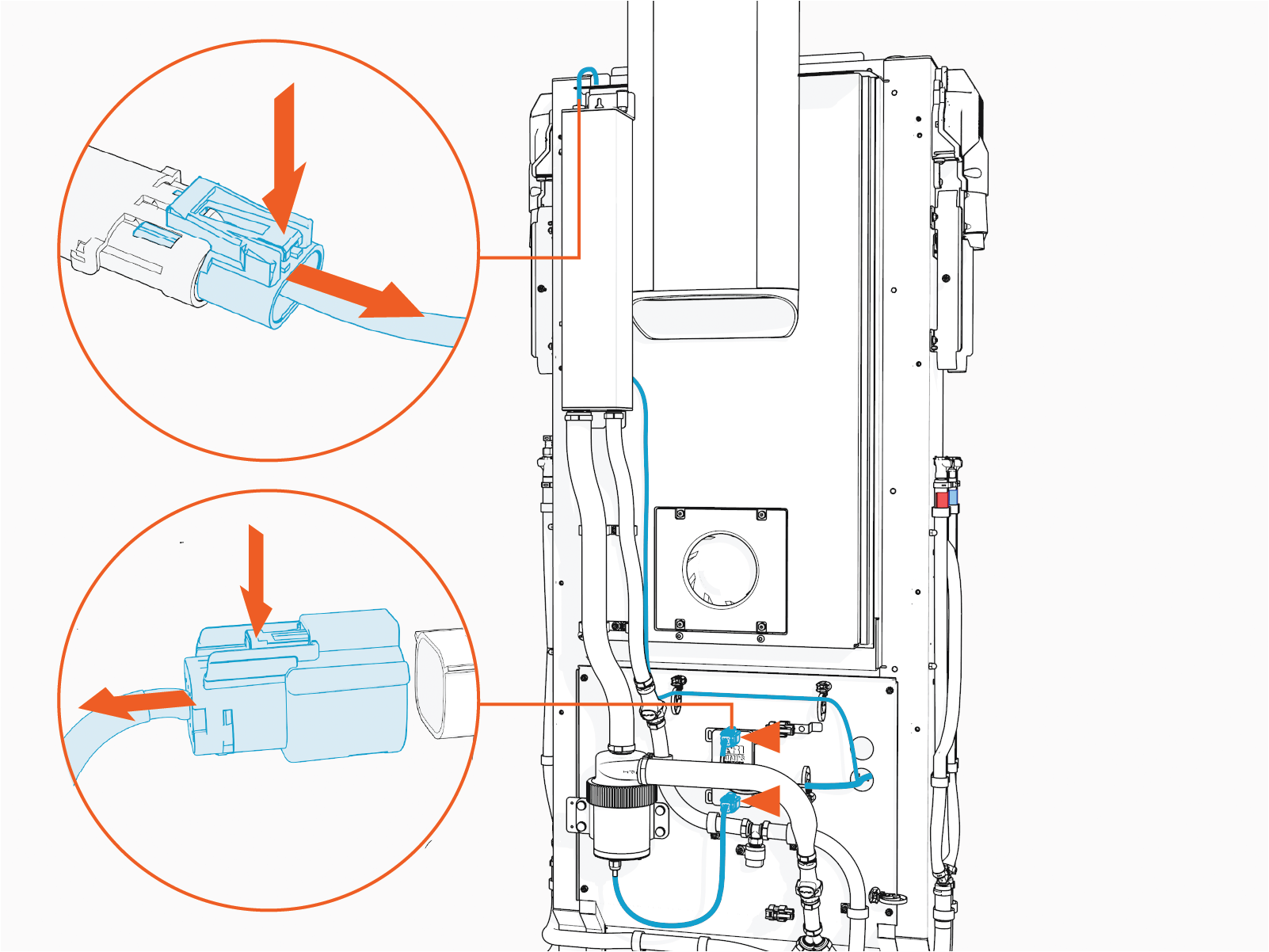

  1. Press the latch and pull the connector to disconnect the cables (x3).

    Technical illustration depicts the procedural step.

    • Find the label on each cable to plug its connector back into its correct receptacle connector.

    • To reconnect, plug in. The latch must snap onto the receptacle connector with a click sound to ensure that the connection is secure.

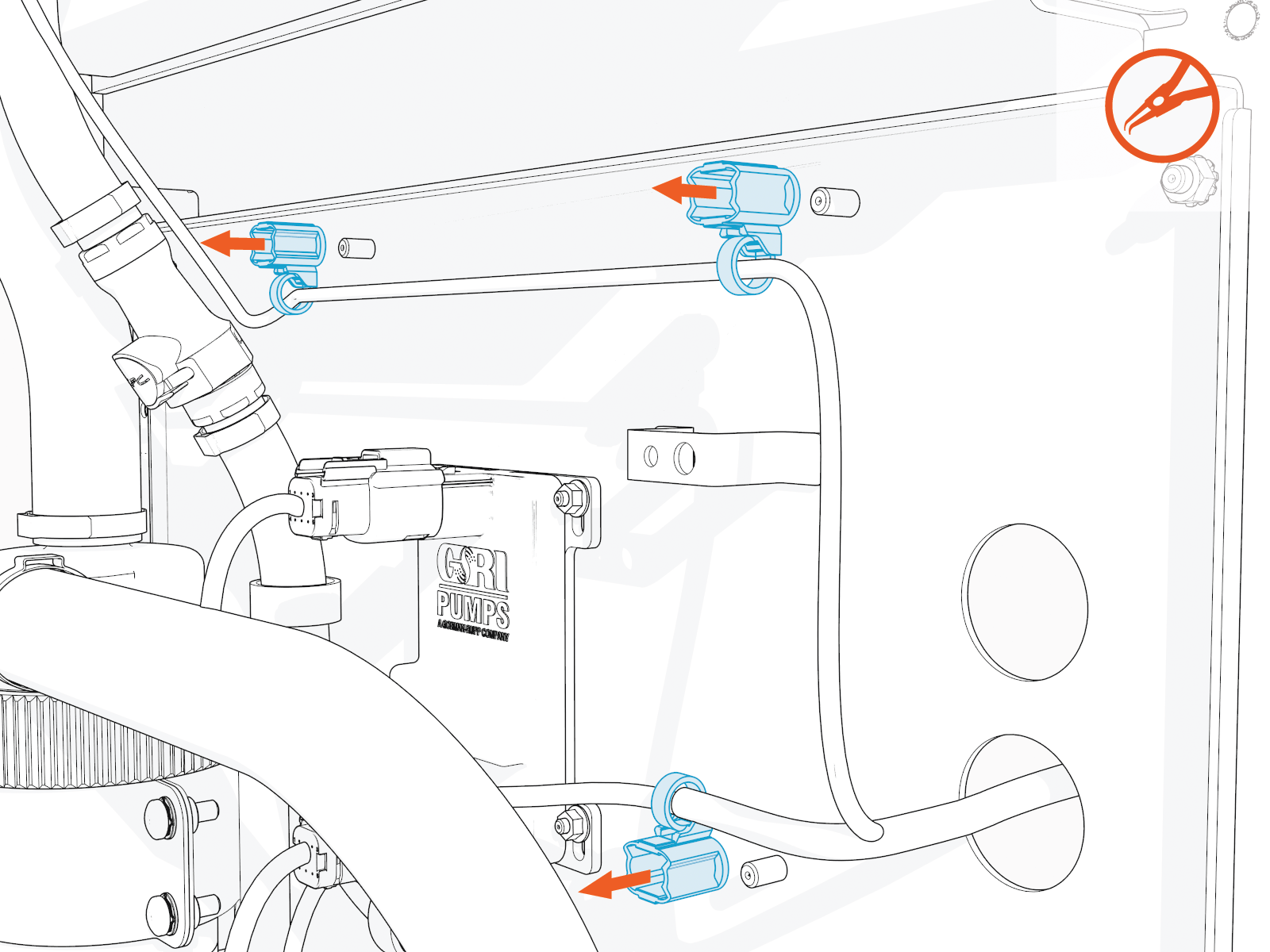

  2. Use needle nose pliers to pull out the stud-mounted zip ties.

    Technical illustration depicts the procedural step.

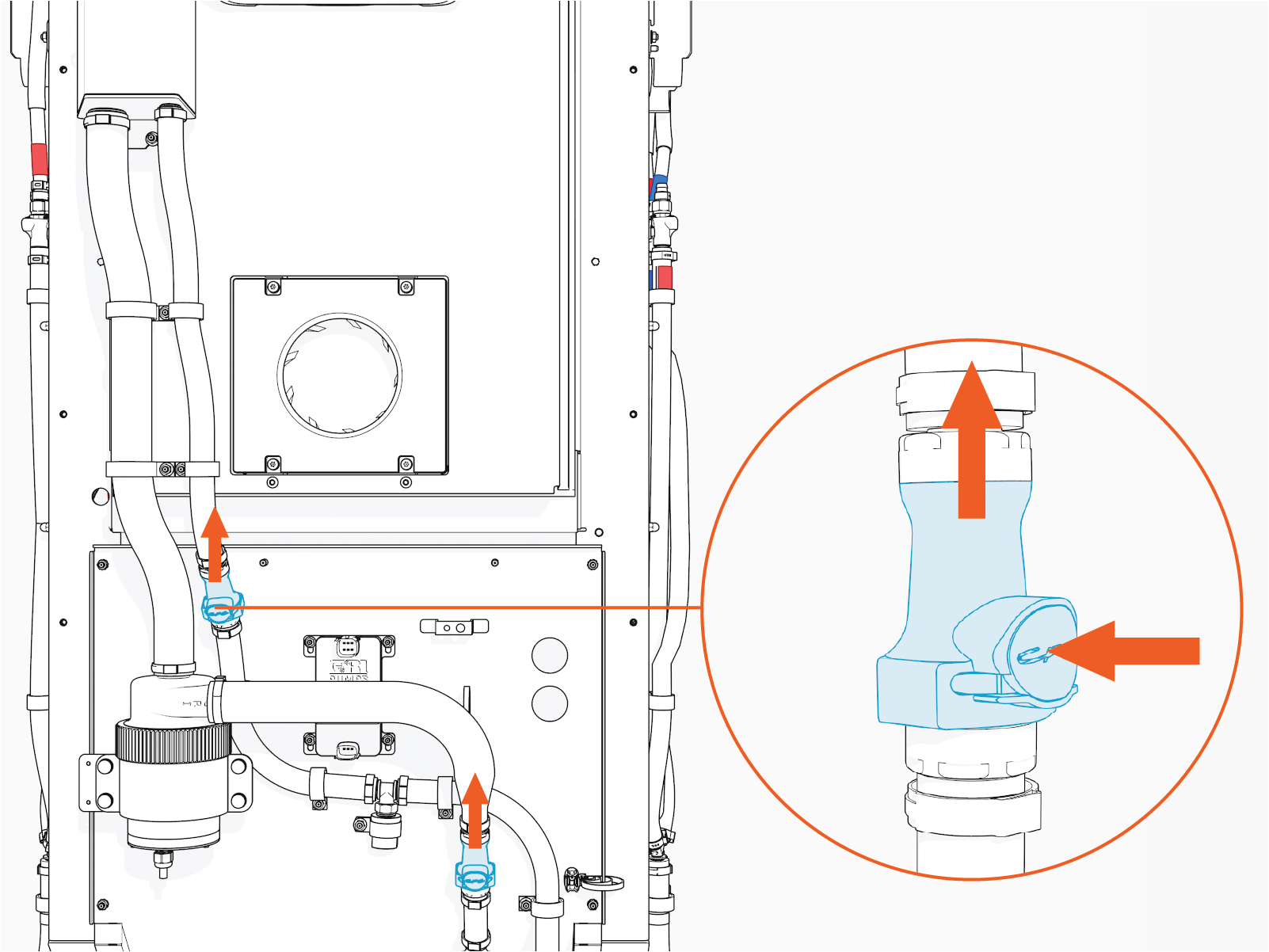

  3. Press the latch and pull the connector to disconnect the hoses (x2).

    While disconnecting, use a clean rag to catch and wipe off any coolant residue on the connectors.

    Technical illustration depicts the procedural step.

    • To reconnect, plug in. The latch must snap onto the receptacle connector with a click sound to ensure that the connection is secure.

    • Top up or refill coolant.

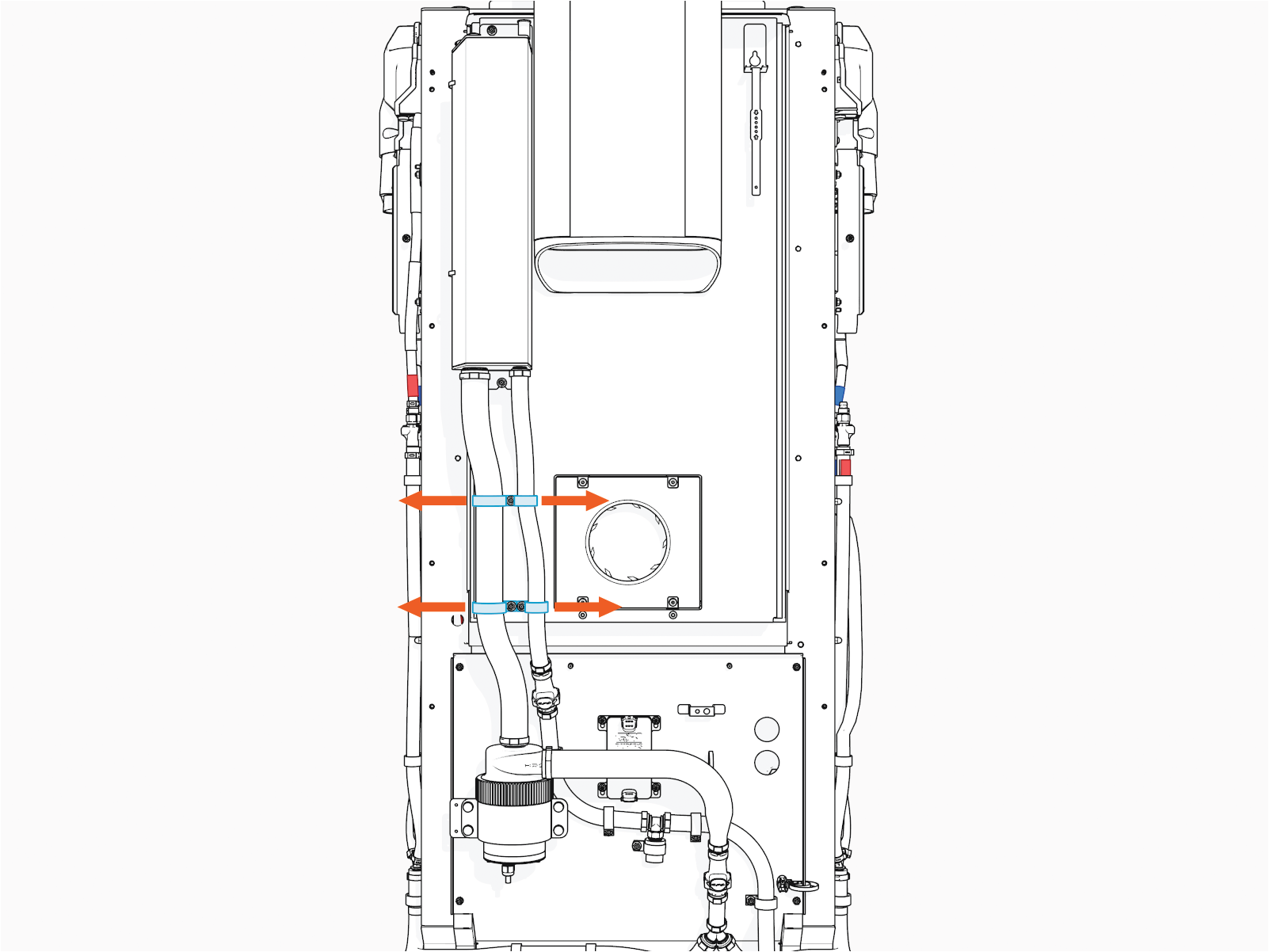

  4. Flex the hose clamps (x4) to untie the hoses (x2).

    Technical illustration depicts the procedural step.

  5. Loosen the reservoir bracket nuts (x2) and pump bracket screws (x4), and lift the assembly to remove. Hold the reservoir with one hand and pump with other hand to gently lift and remove the assembly.

    Technical illustration depicts the procedural step.

    Torque the reservoir bracket nuts to 4.5 Nm (40 in-lb) and pump bracket screws to 5.6 Nm (50 in-lb).

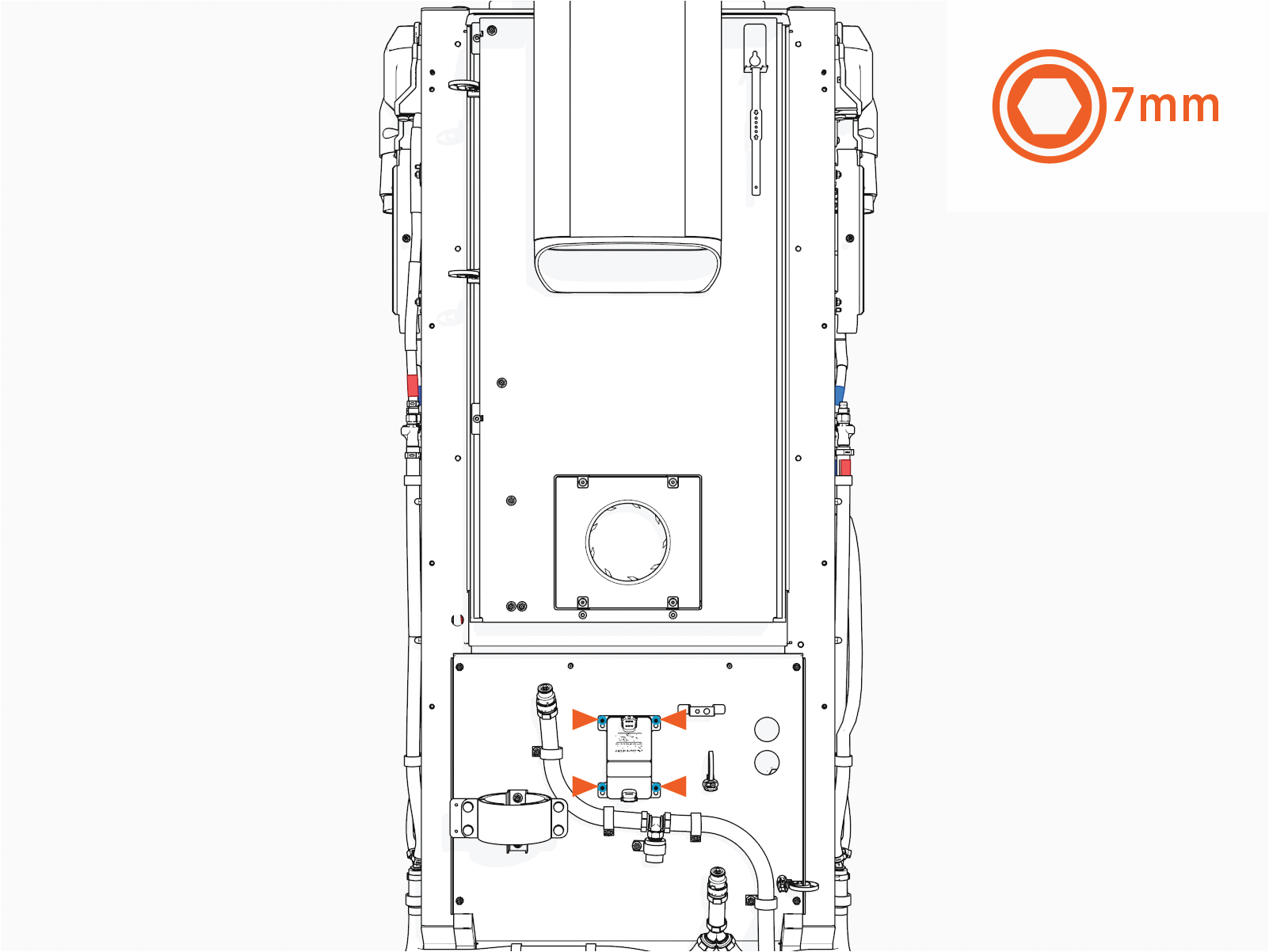

  6. Loosen the pump controller bracket nuts and slide the controller up to remove.

    Technical illustration depicts the procedural step.

    Torque these nuts to 2.8 Nm (25 in-lb) .

Reverse the above steps to reinstall with replacement FRUClosed Field Replaceable Unit.
