Replace the Area Light Bar

Follow these steps to replace the area light bar.

Required Tools and Materials

To replace the area light bar, use these tools and materials:

  • ChargePoint replacement part #CPE250-AREALIGHT-F

  • T25 Torx security driver

  • Headlamp

Power Off the Station

Power off at the breaker panel and lock out/tag out before continuing work.

RISK OF SHOCK. Before performing this procedure, disconnect the power to the station at the service panel. Keep power off for this circuit until all cover panels are correctly reinstalled and the work scope is completed. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS INJURY OR LOSS OF LIFE.

Replace the Area Light Bar

Complete the following steps to replace the area light bar in an Express 250 charging station.

  1. Using a T25 Security screwdriver, loosen the two captive screws on the area light bar.

    Technical illustration depicts the procedural step.

  2. Disconnect the power cable that connects the area light bar to the LED display assembly. Remove the area light bar.

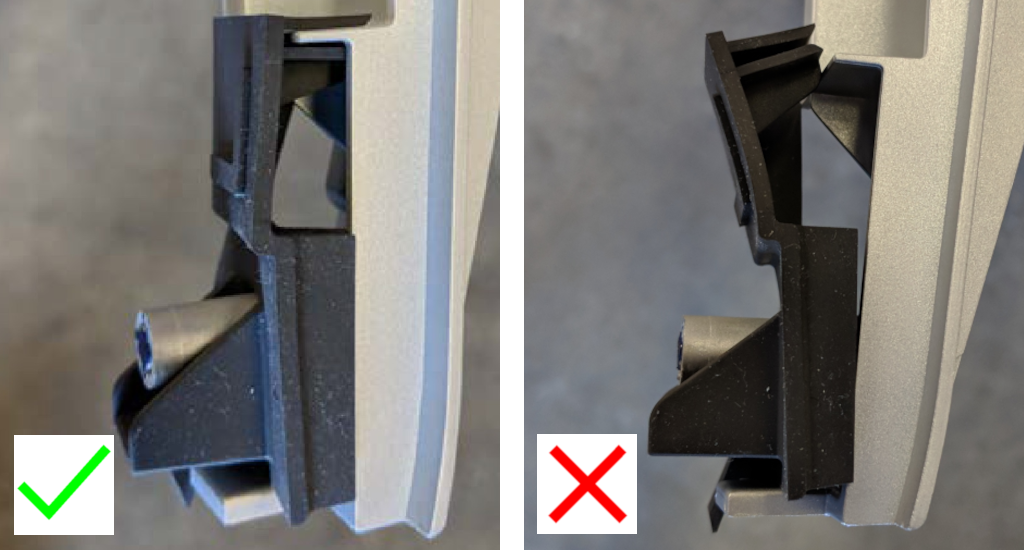

    When reinstalling, ensure the gasket on each end of the area light bar is properly seated around the plastic tab.

    Technical illustration depicts the procedural step.

  1. Ensure the gasket on each end of the new area light bar is properly seated around the plastic tab.

  2. Connect the power cable from the LED display to the new area light bar.

  3. Position the new area light bar above the LED display with the lights facing downward. Align the area light bar and hold it in place with enough force to compress the gaskets.

  4. Use a T25 Torx security driver to tighten the two captive screws on the bottom edge of the area light bar.

Power On the Station

Once all cover panels are installed, power on the station. The on-screen Installation Wizard steps you through any required tasks to set up the station and verify that it can operate properly.

An Installation Wizard test checks that all cover panels are correctly installed and fully seated. Check the lower right corner of the screen for any error messages. If panel errors appear, match the panel letters to this illustration.

Labeled diagram of product, tools or parts.

(a) Front bottom panel

(b) Middle vent panel

(c) Front top panel

(d) LED display

(e) Area light bar

(f) Rear bottom panel

(g) Rear middle panel

(h) Rear top panel

(i) Left extrusion

(j) Right extrusion

RISK OF SHOCK. If a fault exists, turn the power off at the service panel to BOTH product paired charging stations during work and keep it off until all panels are reinstalled. Internal components can present a shock hazard. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SERIOUS INJURY OR LOSS OF LIFE.

If any panel needs re-installation, review the procedures above to double-check that all panels are fully seated and that the edges of all signs are captured fully by the panels around them. For further details, refer to Introduction.
